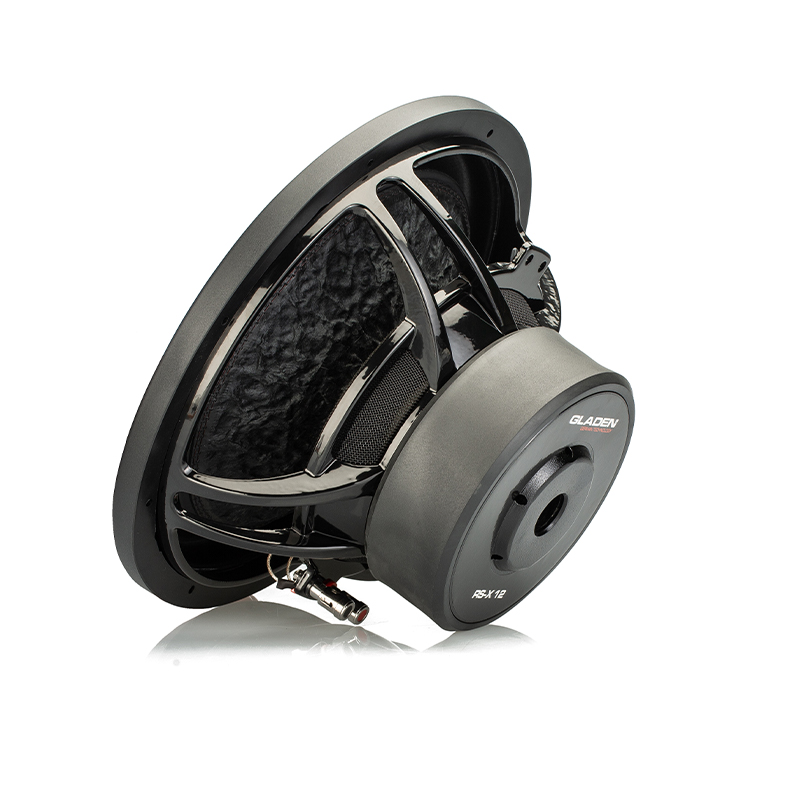

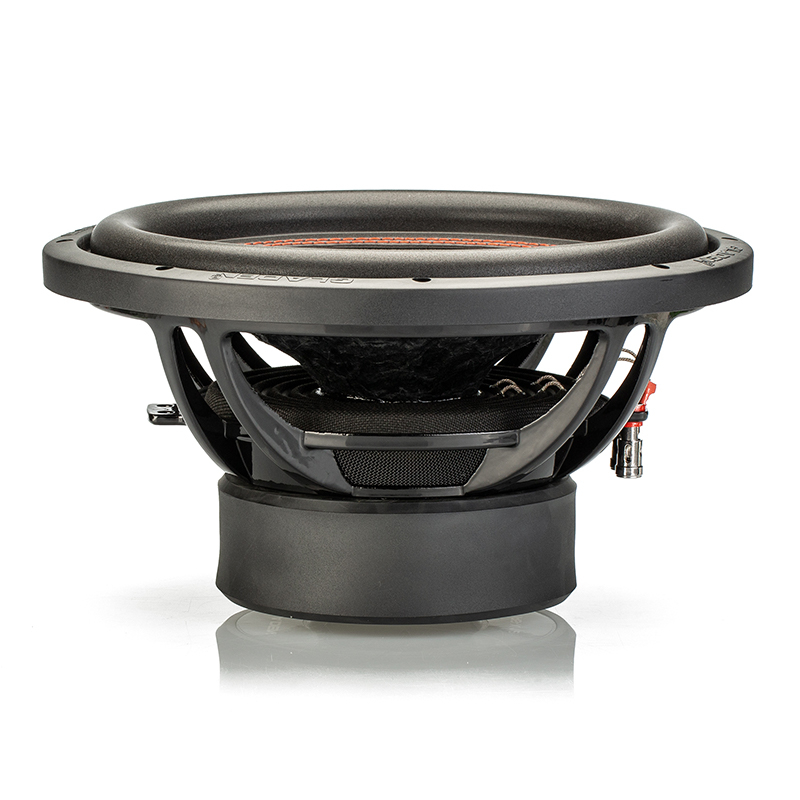

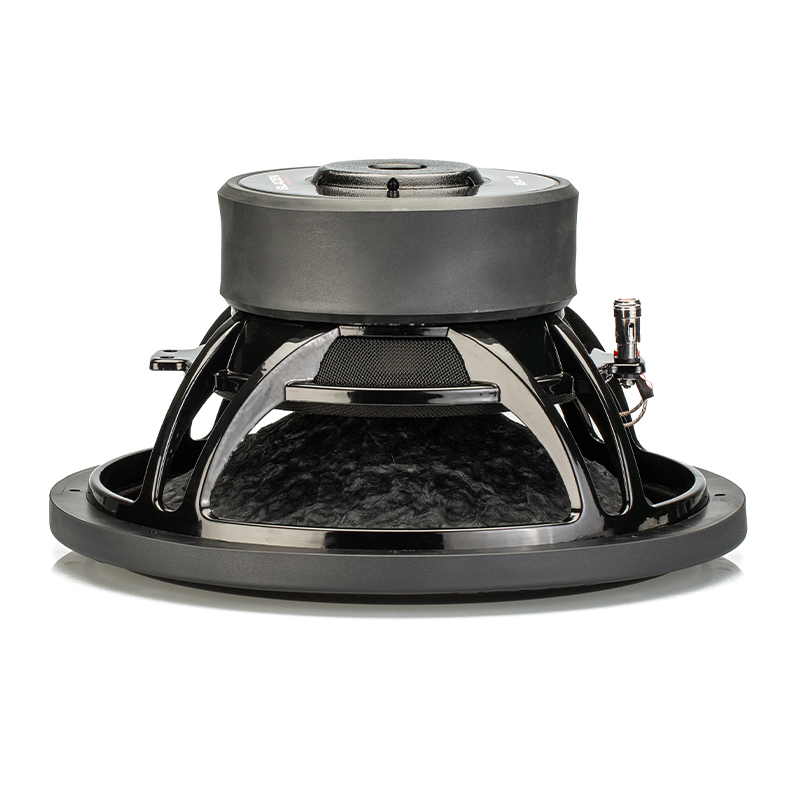

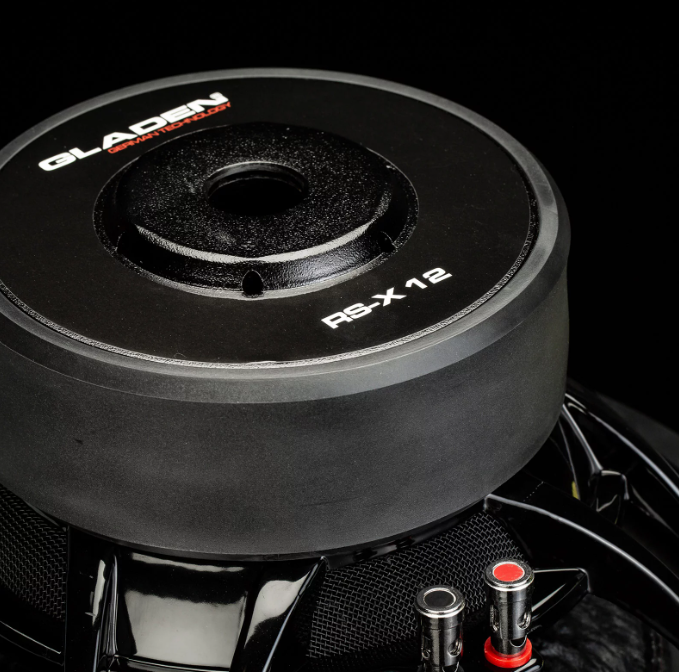

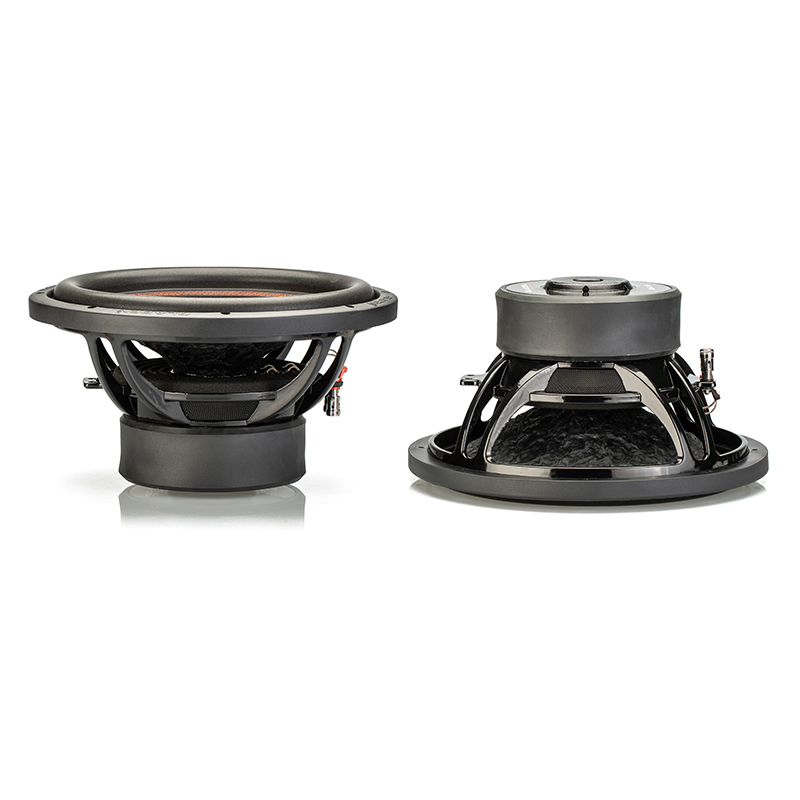

GLADEN RS-X 12
● 12" / 30 cm
● Power handling: 750 / 500 Watts
● 4 Ohm impedance
OVERVIEW GLADEN RS-X 12
● Cast aluminum basket
● Black nomex spider
● Paper membrane
● PP-dust cap
● For 48 l ventilated or
● closed 32 l
TECHNICAL DATA GLADEN RS-X 12
MATERIAL:
Cone:Paper
Spider:Nomex
Surround:Foam
Coil former:Aluminum
Basket:Aluminum
Dust Cap:PP
SPECIFICATIONS:
DC resistance (Rdc):3,71 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):31,40 Hz
Voice coil diameter:3 inch
Mechanical Q factor (Qms):4,92
Electrical Q factor (Qes):0,49
Total Q factor (Qts):0,45
Moving mass (Mms):149,97 g
Effective piston area (Sd):514 cm²
Mechanical resistance (Rms):6,54 kg/s
Compliance (Cms):0,17 mm/N
Force factor (BL):14,37 Tm
Equivalent air volume (Vas):63,57 dm³
SPL 2,83V/1m:94,2 dB
