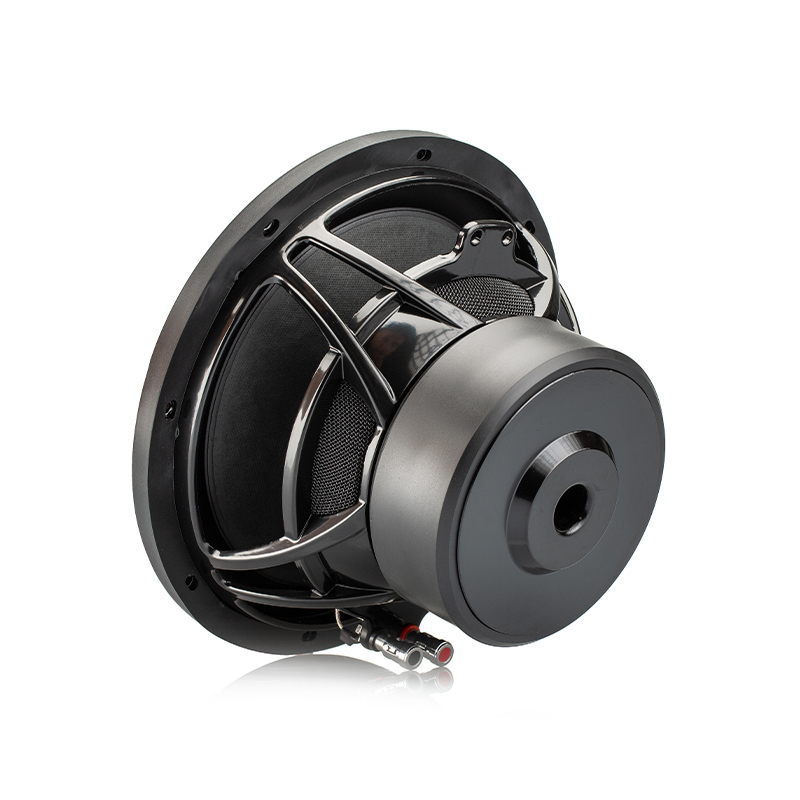

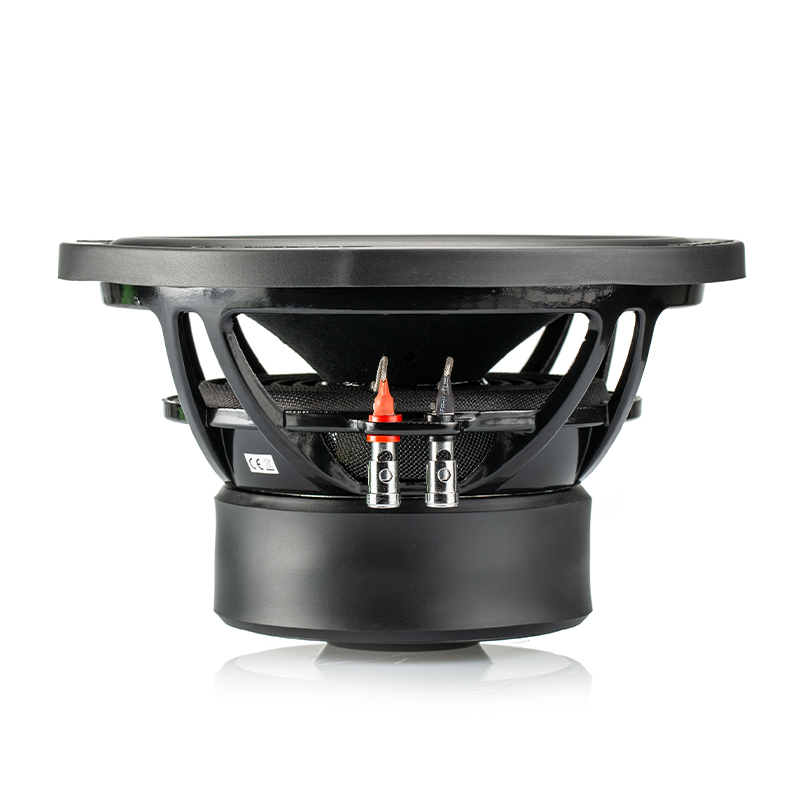

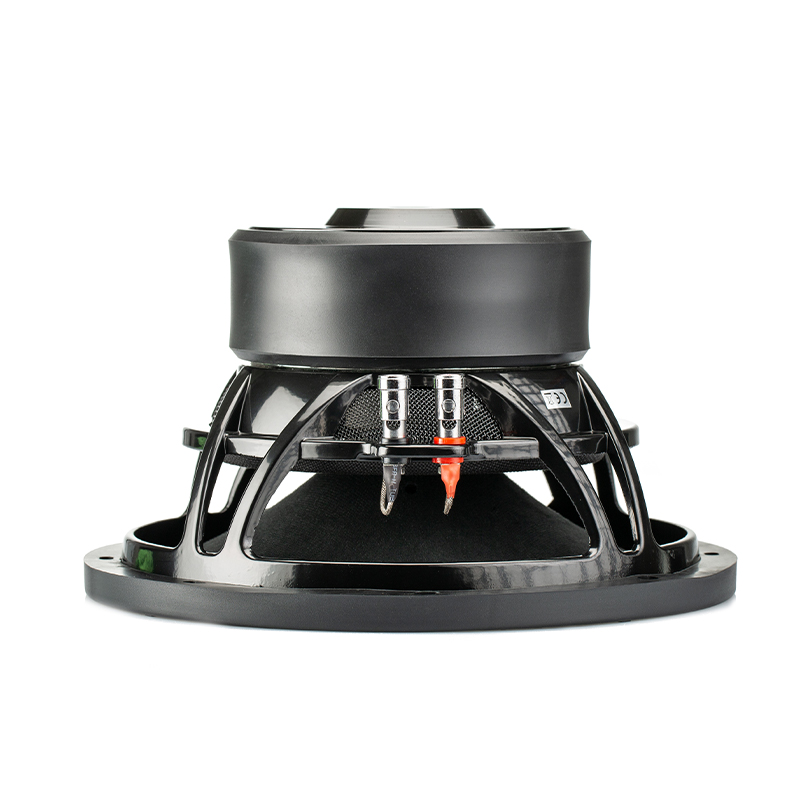

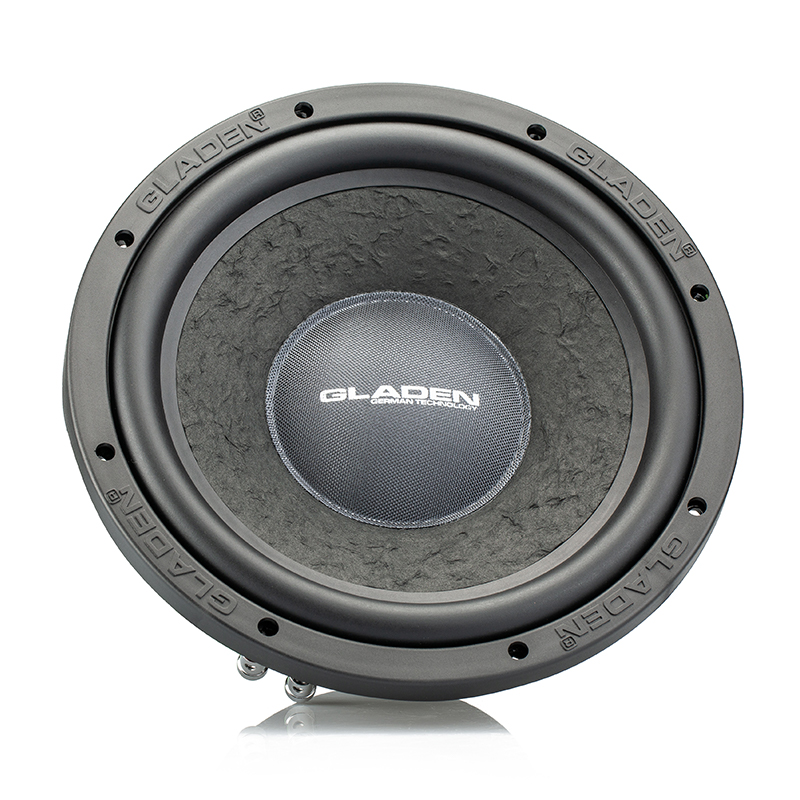

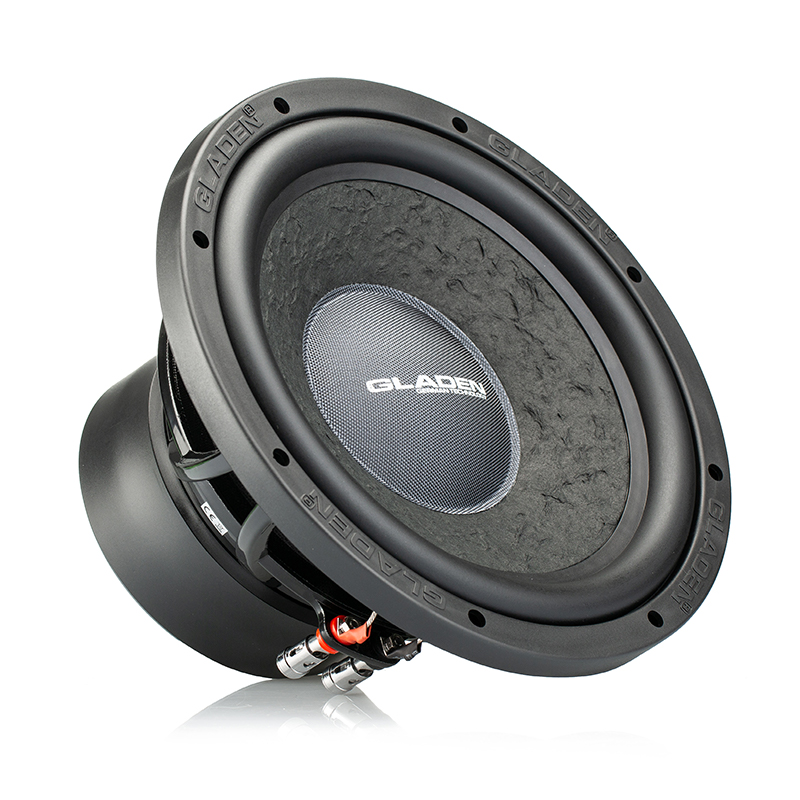

GLADEN RS 08
● 175 / 250 Watts (RS08)
● 200 / 300 Watts (RS08 EXTREME)
● Voice coil 1.5
● 4 Ohm (RS 08)
● 2 Ohm (RS 08 EXTREME)
OVERVIEW GLADEN RS 08
● Allround subwoofer
● Sheet steel basket
● Black nomex spider
● Scooped paper cone
● Glass fiber dust cap
TECHNICAL DATA RS 08
MATERIAL:
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Fiberglass
Basket:Steel
Dust Cap:Glasfaser
SPECIFICATIONS GLADEN RS 08:
DC resistance (Rdc):3,5 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):39,6 Hz
Voice coil diameter:1,5 inch
Mechanical Q factor (Qms):5,96
Electrical Q factor (Qes):0,55
Total Q factor (Qts):0,5
Moving mass (Mms):57,3 g
Effective piston area (Sd):221 cm²
Mechanical resistance (Rms):2,5 kg/s
Compliance (Cms):0,28 mm/N
Force factor (BL):9,5 Tm
Equivalent air volume (Vas):18,1 dm³
SPL 2,83V/1m:88 dB
SPECIFICATIONS GLADEN RS08 EXTREME:
DC resistance (Rdc):2 Ω
Nominal impedance (ZN):2 Ω
Resonance frequency (fs):36,3 Hz
Voice coil diameter:1,5 inch
Mechanical Q factor (Qms):5,65
Electrical Q factor (Qes):0,40
Total Q factor (Qts):0,38
Moving mass (Mms):59,3 g
Effective piston area (Sd):221 cm²
Mechanical resistance (Rms):2,4 kg/s
Compliance (Cms):0,32 mm/N
Force factor (BL):8,2 Tm
Equivalent air volume (Vas):21,2 dm³
SPL 2,83V/1m:89 dB
DOWNLOAD
GLADEN RS 08 AND RS 08 EXTREME (PDF)
