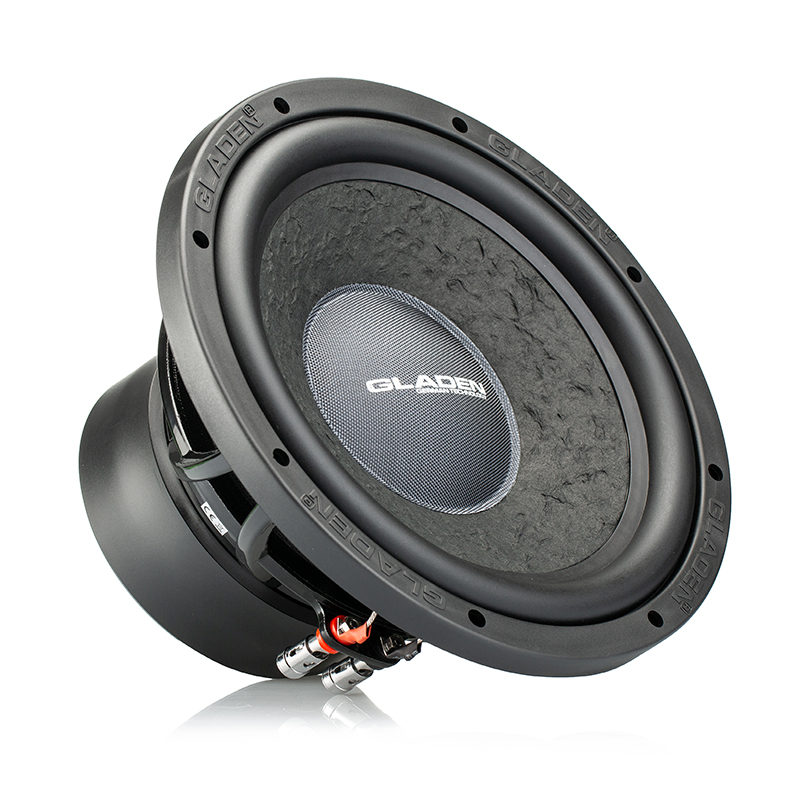

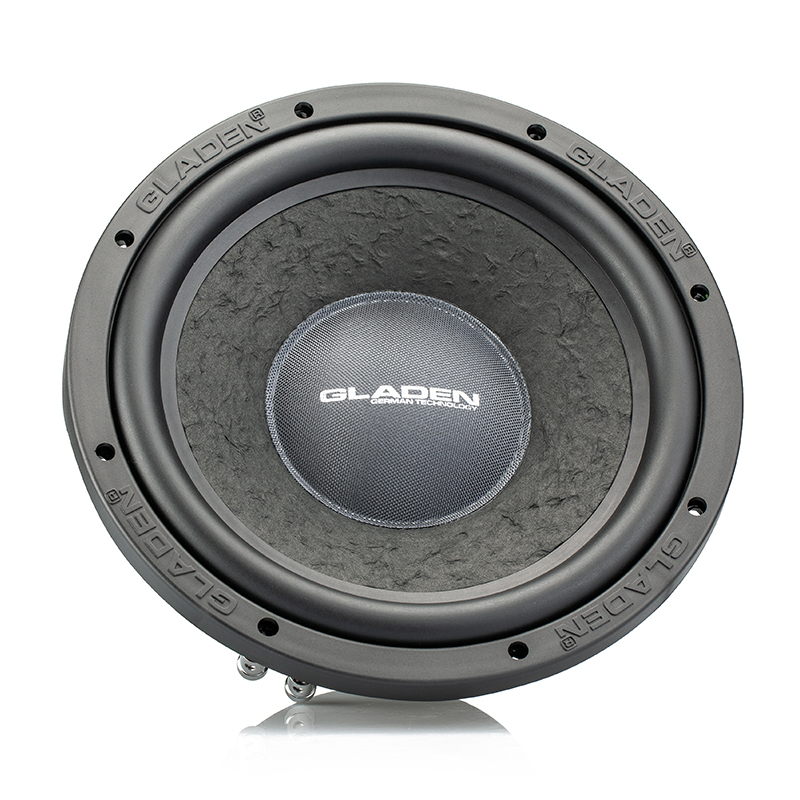

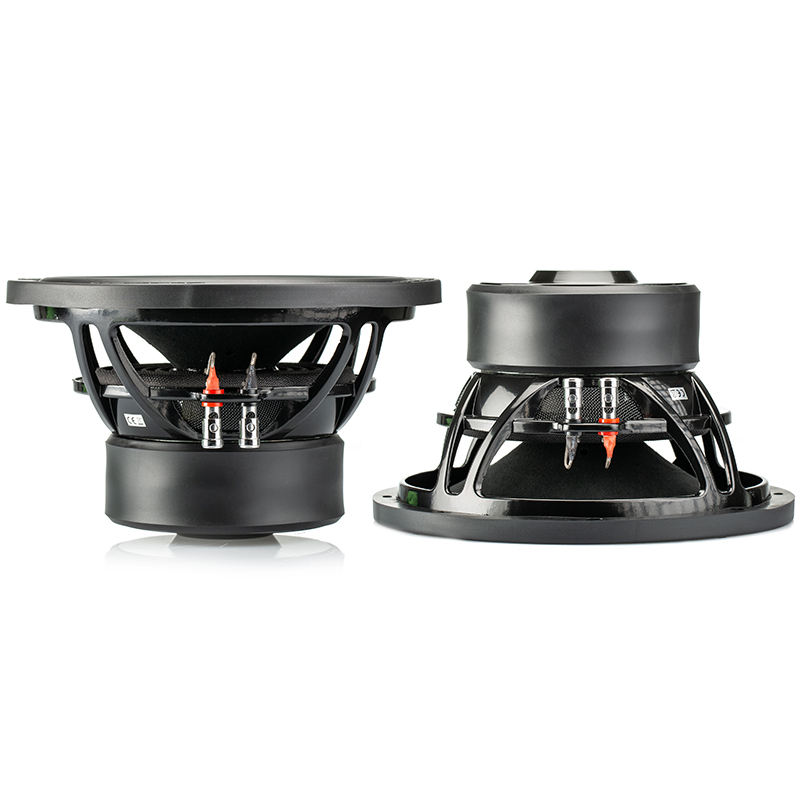

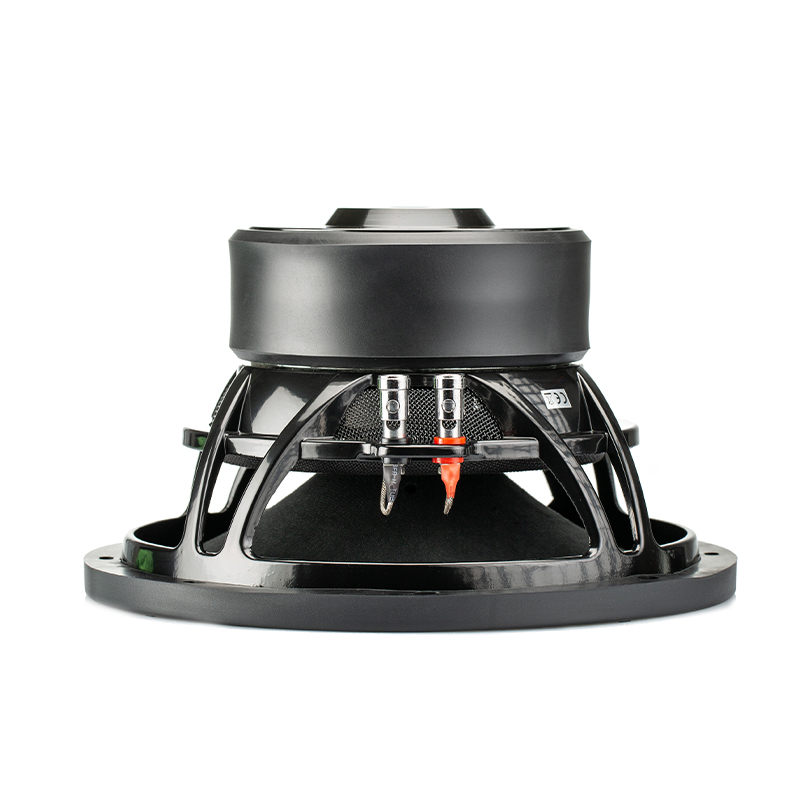

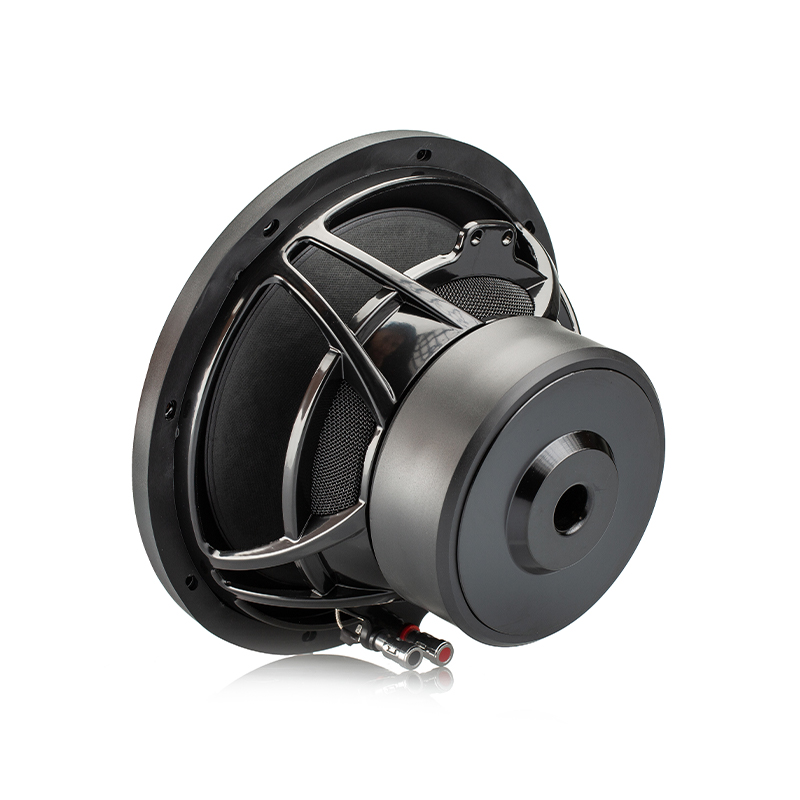

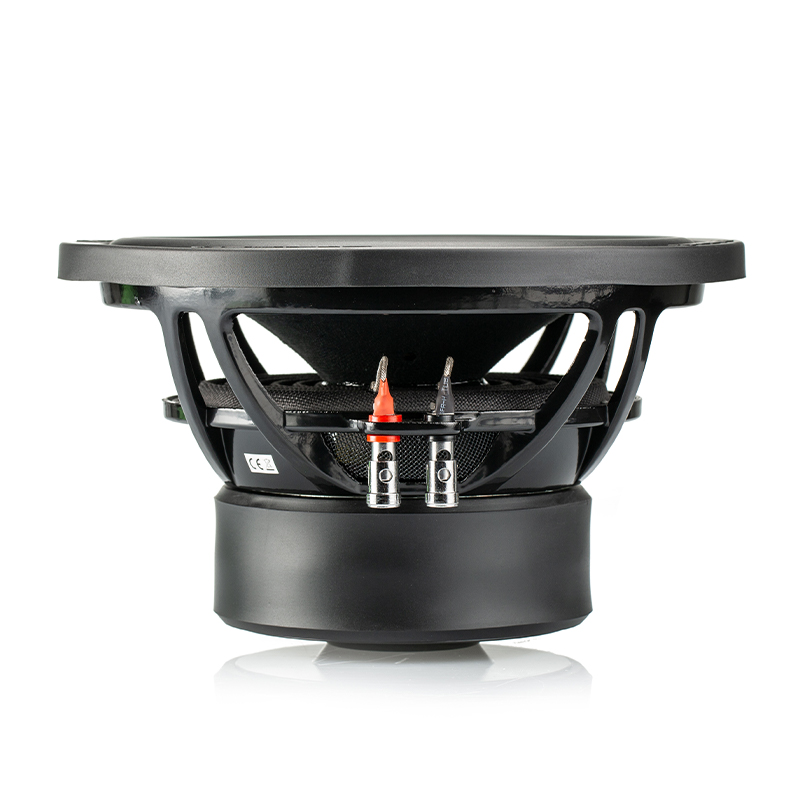

GLADEN RS 10
● 25 cm / 10"
● Power handling: 250 / 375 Watts
● 4 Ohm impedance
● 2" voice coil
OVERVIEW GLADEN RS 10
● Allround subwoofer
● Cast aluminum basket
● Black nomex spider
● Scooped paper cone
● Glass fiber dust cap
TECHNICAL DATA GLADEN RS 10
MATERIAL:
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Fiberglass
Basket:Aluminum
Dust Cap:Fiberglass
SPECIFICATIONS:
DC resistance (Rdc):3,5 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):31,2 Hz
Voice coil diameter:2 inch
Mechanical Q factor (Qms):5,64
Electrical Q factor (Qes):0,35
Total Q factor (Qts):0,33
Moving mass (Mms):96,5 g
Effective piston area (Sd):366 cm²
Mechanical resistance (Rms):5,1 kg/s
Compliance (Cms):0,25 mm/N
Force factor (BL):14,1 Tm
Equivalent air volume (Vas):51 dm³
SPL 2,83V/1m:91,5 dB
