RS 200是一款通用的200毫米2路扬声器系统，其特点是效率高，即使放大器功率很小也可以运行。RS 200的交叉有一个缩小管交叉每个高音和低音。这使得RS系统易于安装和通用。此外，单独的分频器允许双放大操作(例如，使用4通道放大器)。
OVERVIEW GLADEN RS-200
The RS 200 is a universal 200 mm 2-way speaker system and is characterized by a high efficiency so that it can be operated even with small amplifier power.
The crossover of the RS 200 has a shrink tube crossover each for the tweeter and woofer. This makes the RS system easy and universal to mount. Furthermore, the separate crossovers allow bi-amping operation (e.g. with a 4-channel amplifier).

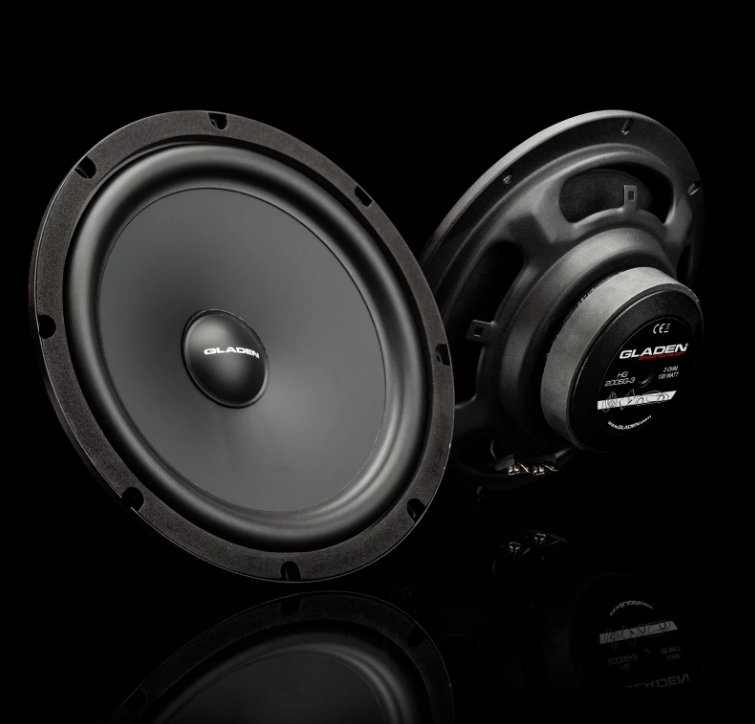

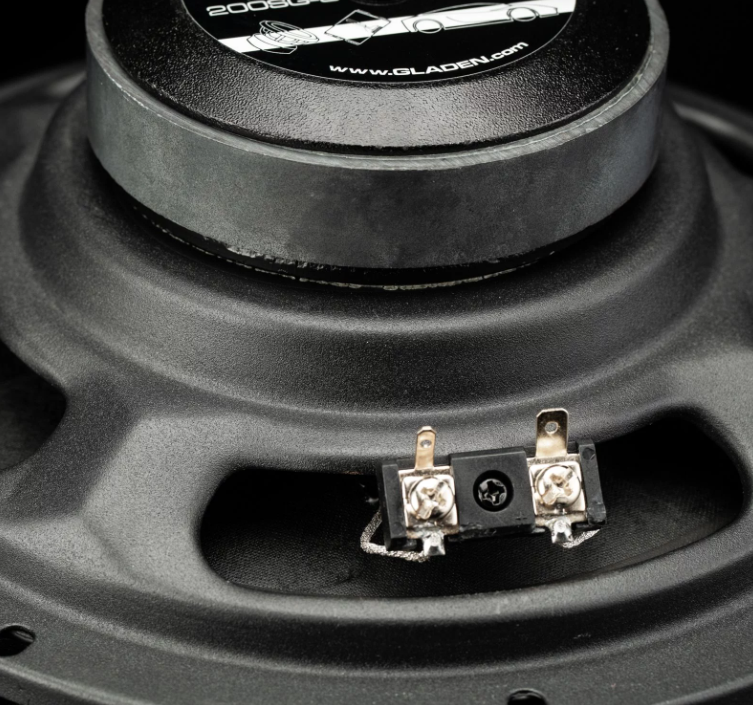

Woofer:
● Size: 200 mm
● Coated paper cone
● Steel basket
● Nomex center spider
● 25 mm voice coil
● 3 Ohm impedance

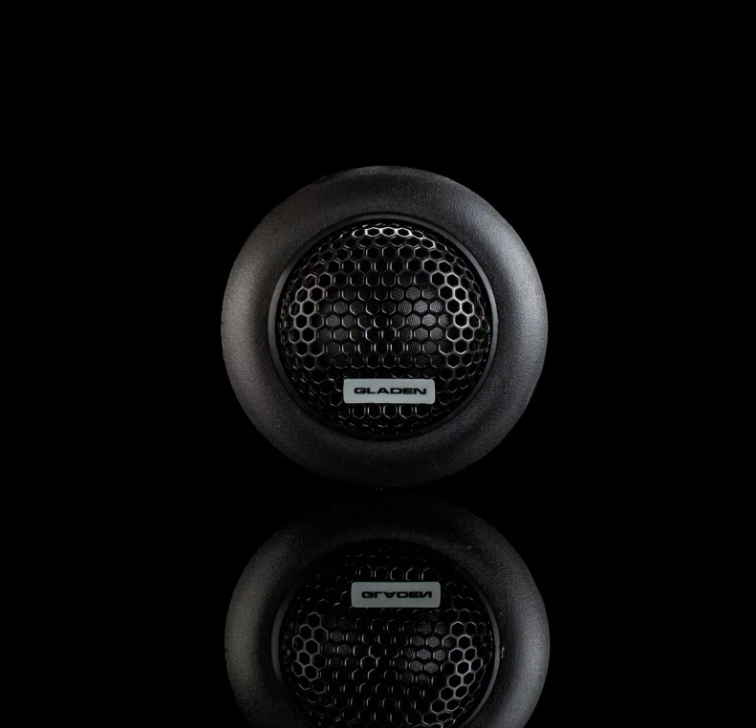

Tweeter:
● Size: 25 mm (voice coil)
● Silk fabric diaphragm
● 4 Ohm impedance
● Accessories: installation housing, installation flange

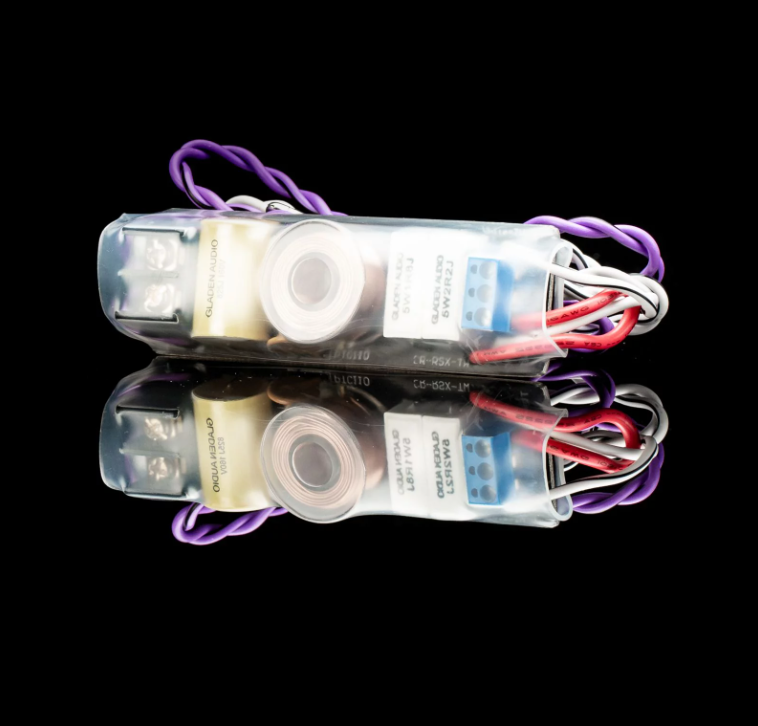

Crossover
● Tweeter and woofer separated
● Heat shrink tube
● 9 adjustment possibilities
● Gold plated screw terminals
● Bi amping capable
● Compact design
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust cap:Polypropylene
TECHNICAL DATA TWEETER
Cone:Silk fabric
Coil former:Kapton
