由一个165毫米低音扬声器和一个25毫米圆顶高音扬声器(总是成对)组成的全方位系统。对于扬声器系统是一个无源交叉包括(不与交流有源版本)。
在原安装位置安装高音喇叭时，塑料外壳可以拆卸。为了优化高音喇叭的对准，可以使用可选的Gladen PODs。
OVERVIEW GLADEN RS-165 G2

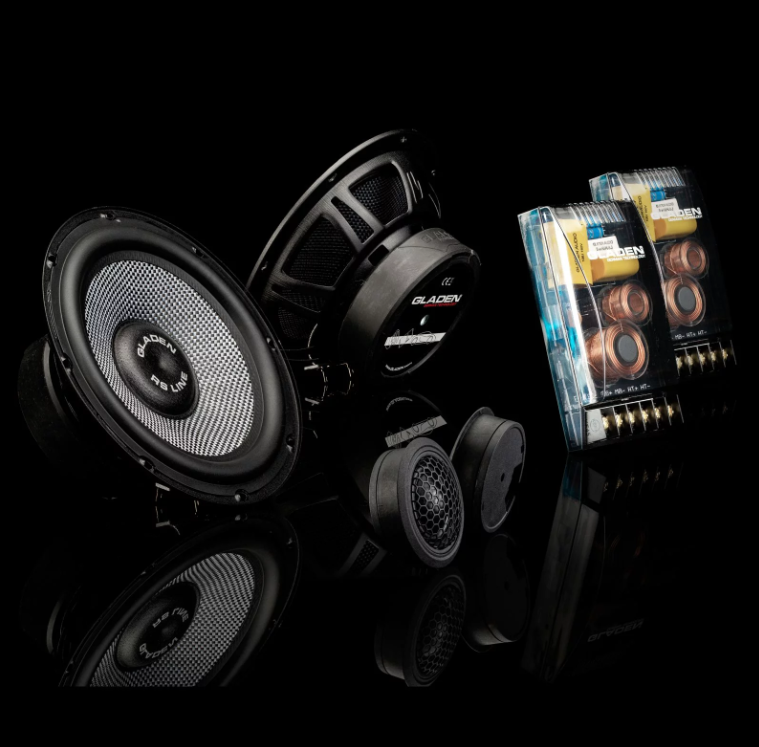

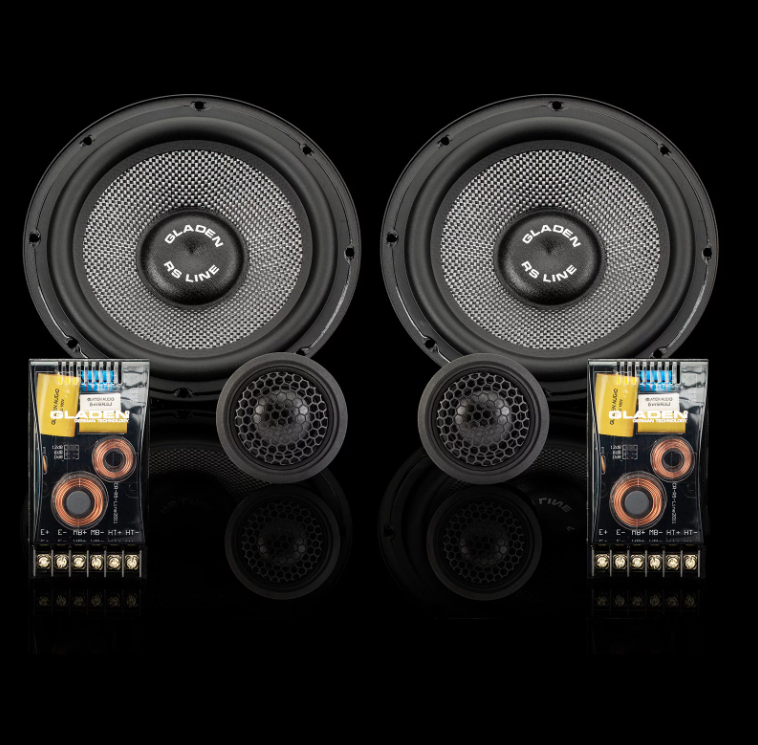

Allround system consisting of a 165 mm woofer and a 25 mm dome tweeter (always in pairs). For the speaker system is a passive crossover included (not with AC active version).
For the installation of the tweeter in original mounting locations, the plastic housing can be disassembled. For optimal alignment of the tweeter, the optional Gladen PODs can be used.

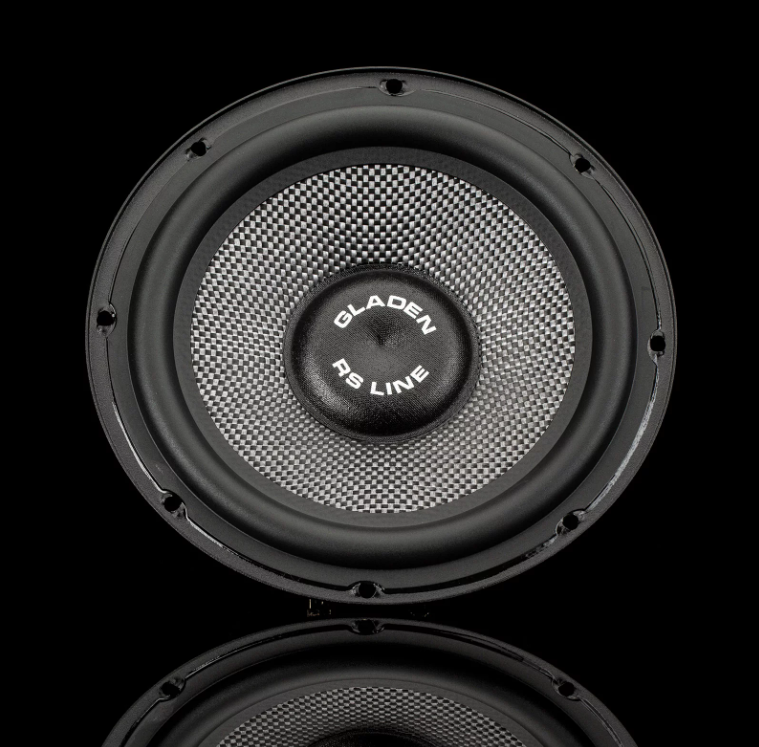

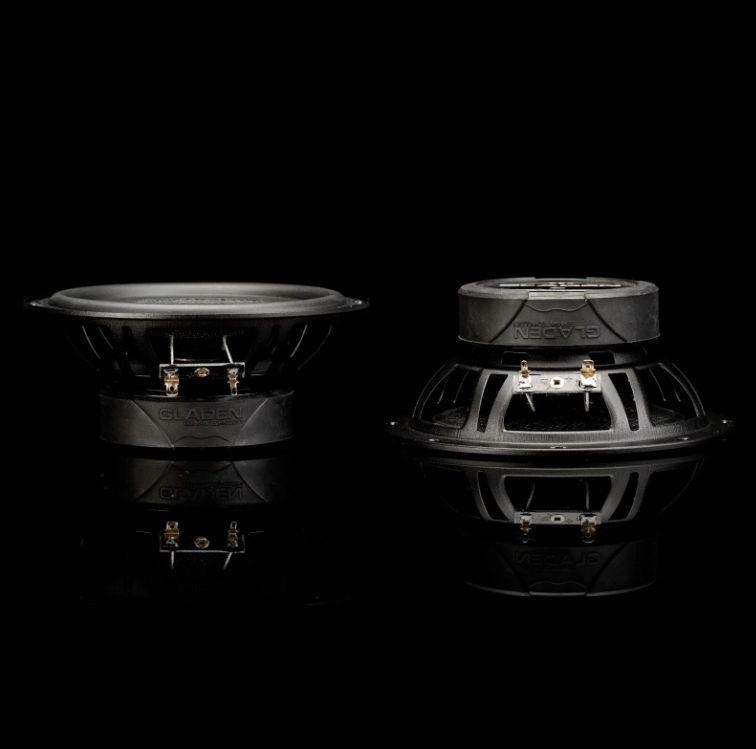

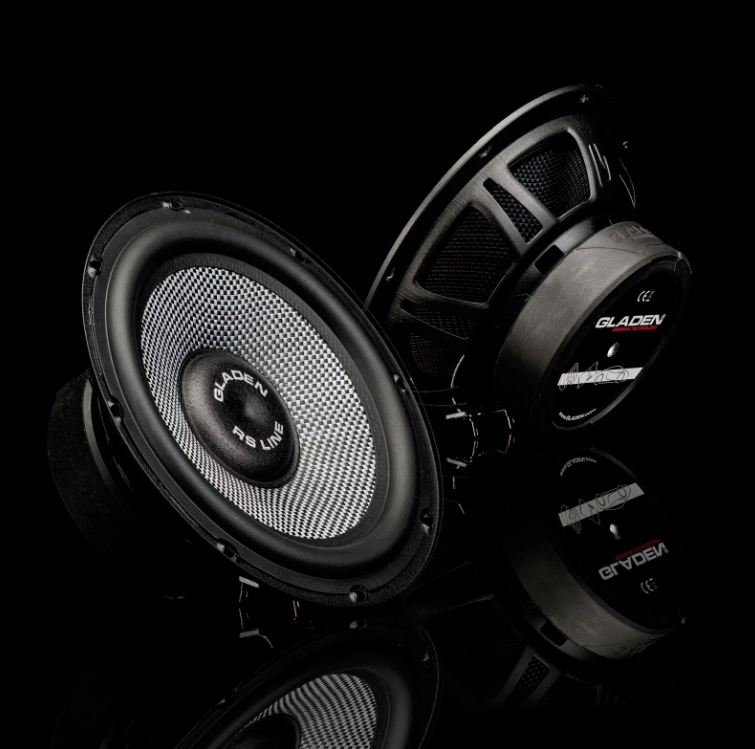

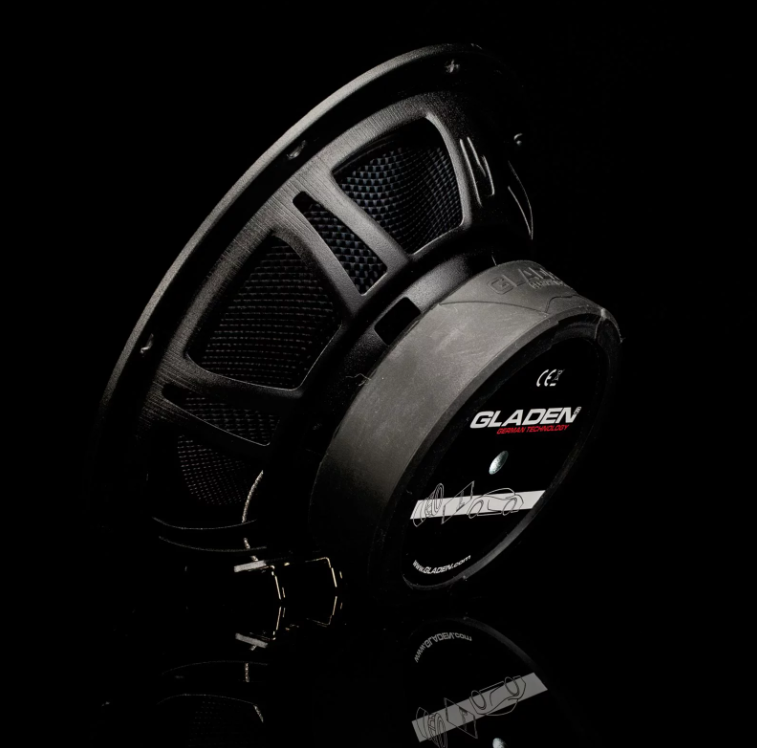

Woofer:
● Size: 165 mm
● Fabric cone
● Steel plate-basket
● Nomex center spider
● 25 mm voice coil
● Rubber-magnet protection
● 3 Ohm impedance

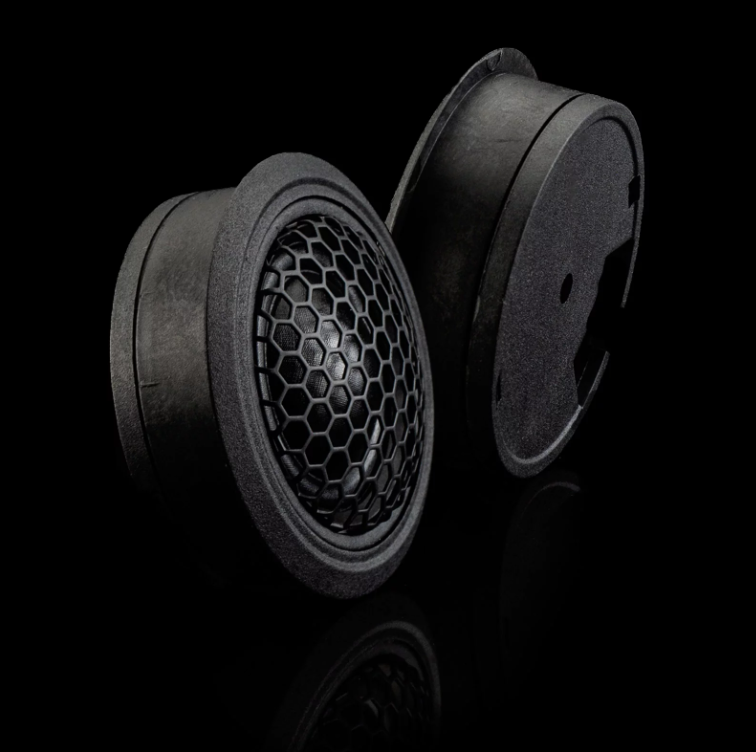

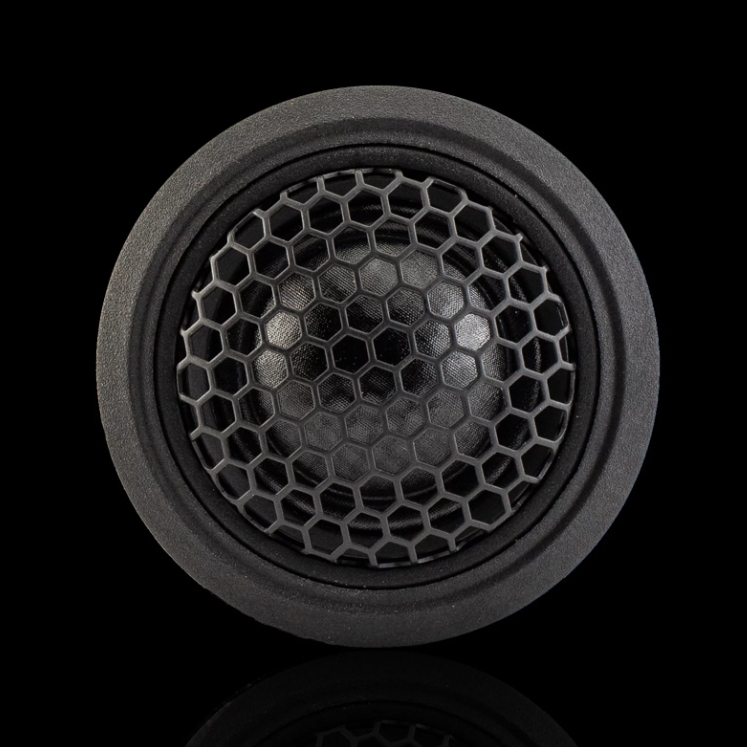

Tweeter:
● Size: 25 mm (voice coil)
● Silk-fabric diaphragm
● Hexagon grille
● 4 Ohm impedance
● Optional accessories: Gladen PODs

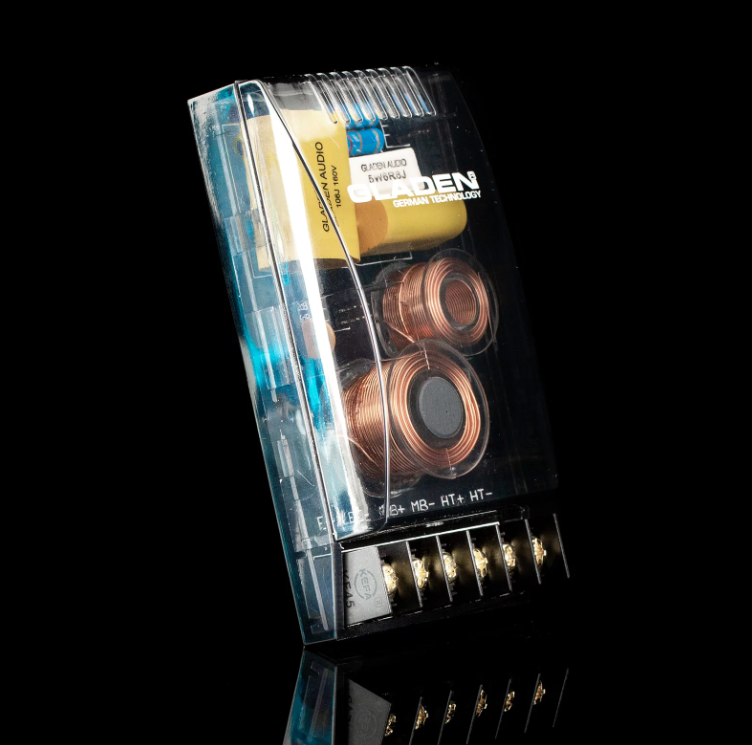

Crossover, not included for active version (AC)
● Plexiglas housing
● 9 adjustment possibilities
● Gold-plated screw terminals
● PTC tweeter protection
TECHNICAL DATA WOOFER
Cone:Fiberglass
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust cap:Fiberglass
TECHNICAL DATA TWEETER
Cone:Silk fabric
Coil former:Kapton
