格拉登RS-X 130是一款通用的双路扬声器系统，配有130毫米低音扬声器和28毫米圆顶高音扬声器。RSX 130的交叉有一个缩小管交叉每个高音和低音。这使得RSX系统易于安装和通用。此外，单独的分频器允许双放大操作(例如使用4通道放大器)。
OVERVIEW GLADEN RS-X 130

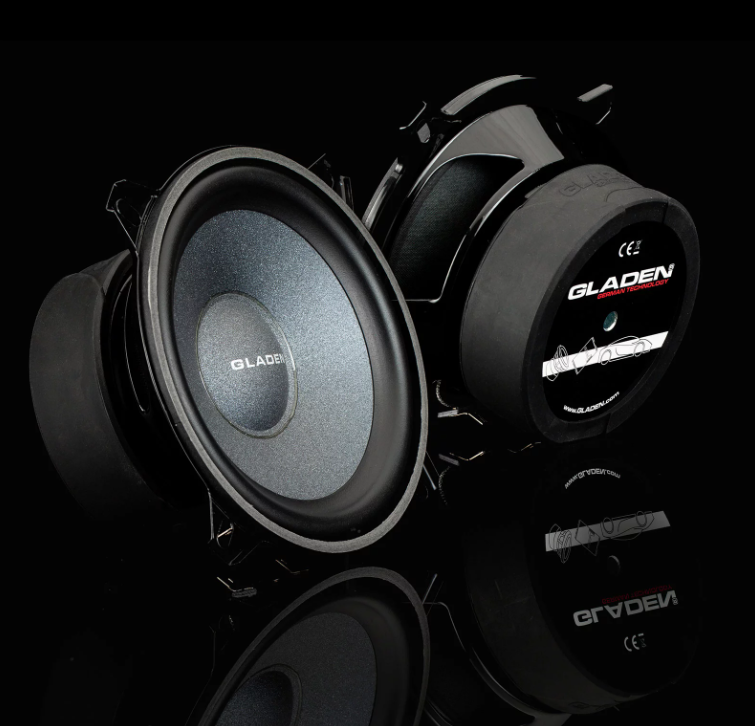

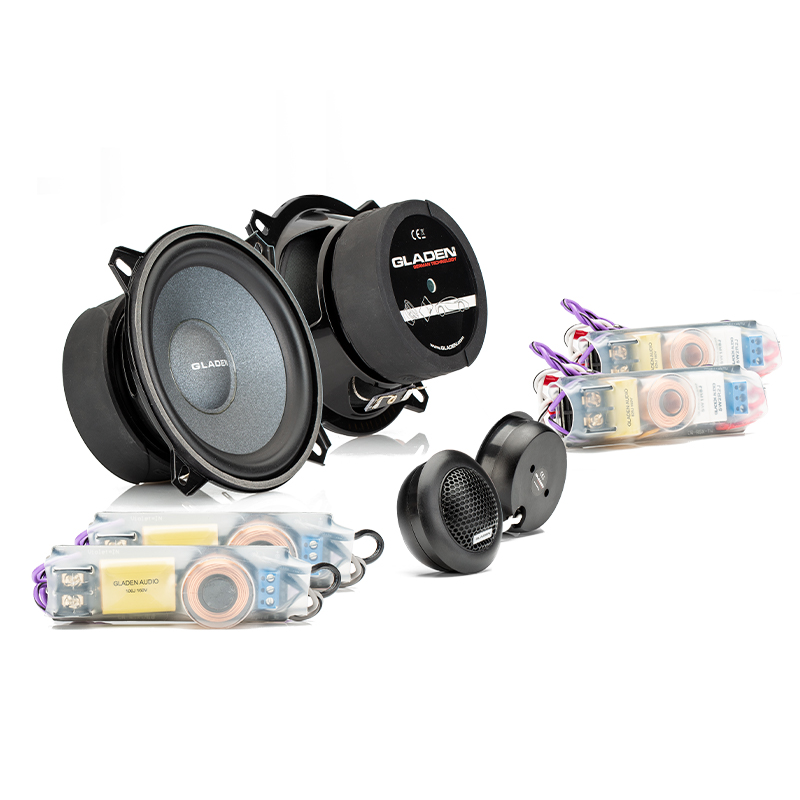

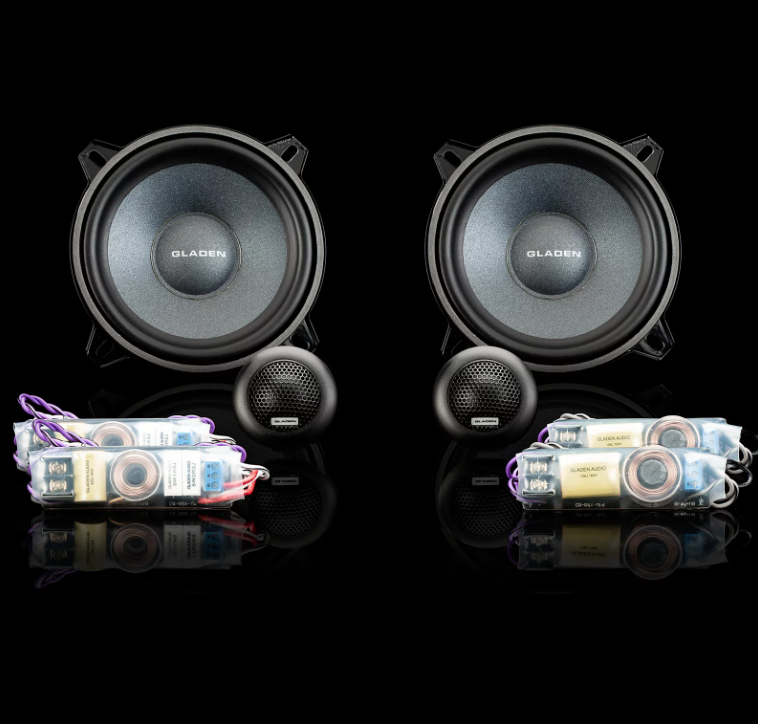

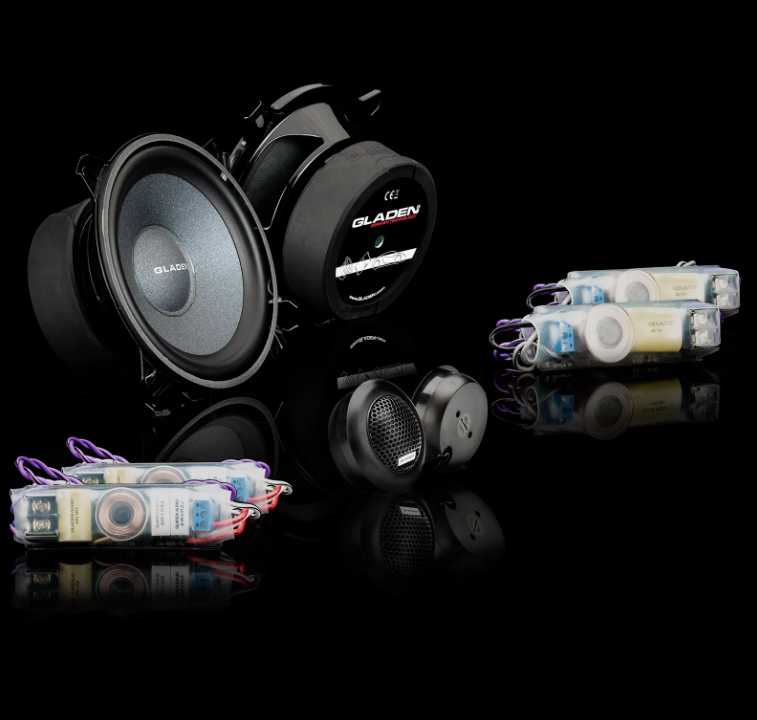

The Gladen RS-X 130 is a universal 2-way speaker system with a 130 mm woofer and a 28 mm dome tweeter. The crossover of the RSX 130 has a shrink tube crossover each for the tweeter and woofer. This makes the RSX system easy and universal to mount. Furthermore, the separate crossovers allow bi-amping operation (eg with a 4-channel amplifier).

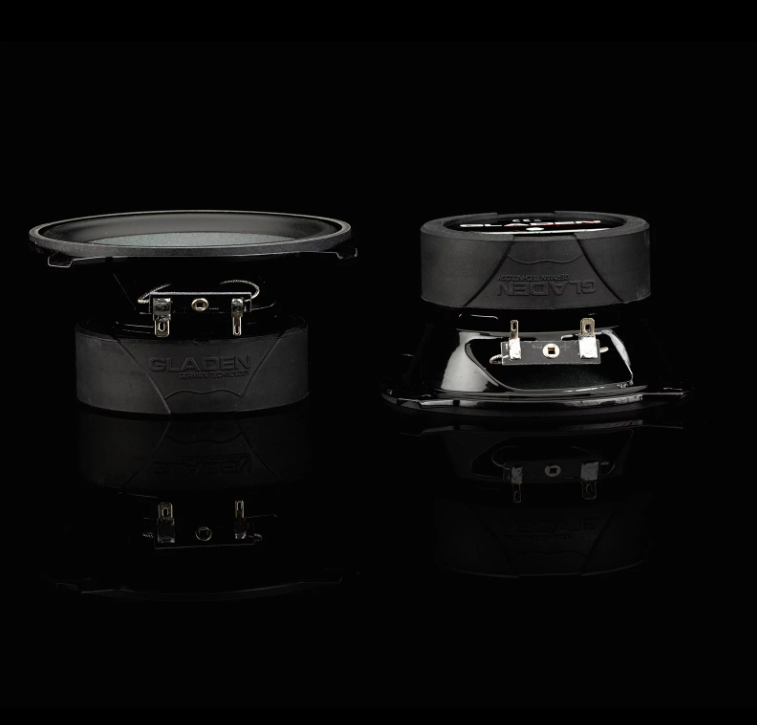

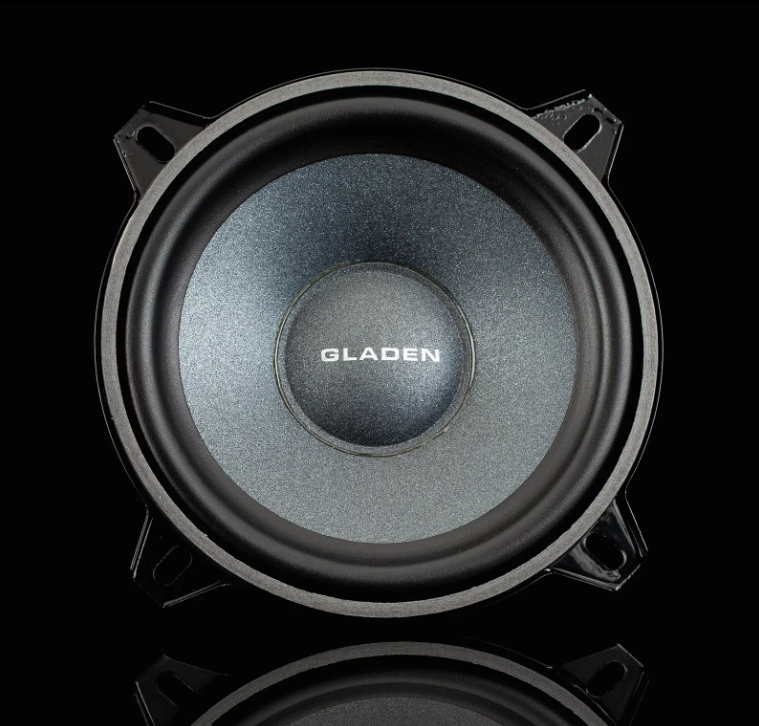

Woofer:
● Size: 130 mm
● Sand coated paper cone
● Steel basket
● Nomex center spider
● 25 mm voice coil
● 3 Ohm impedance

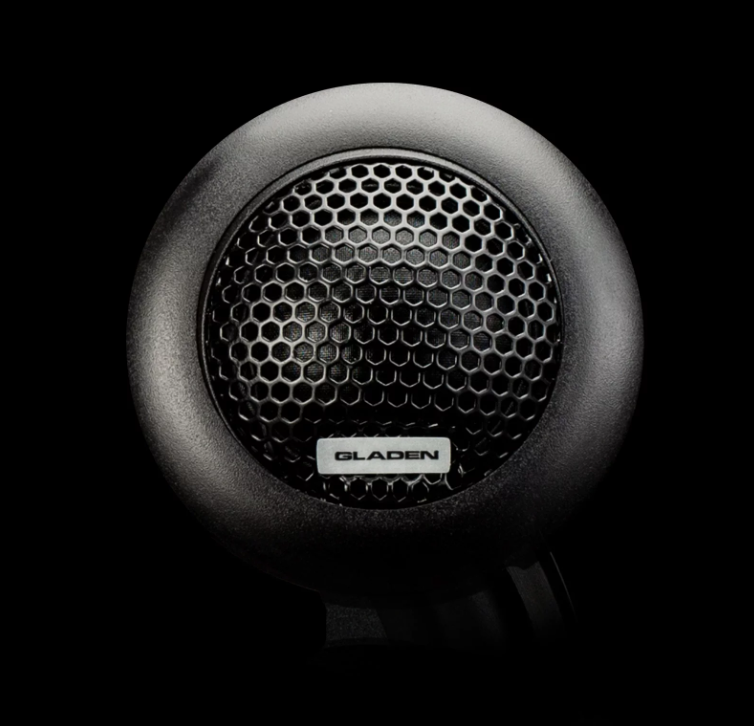

Tweeter:
● Size: 28 mm (voice coil)
● Silk fabric diaphragm
● 4 Ohm impedance
● Accessories: installation housing, installation flange

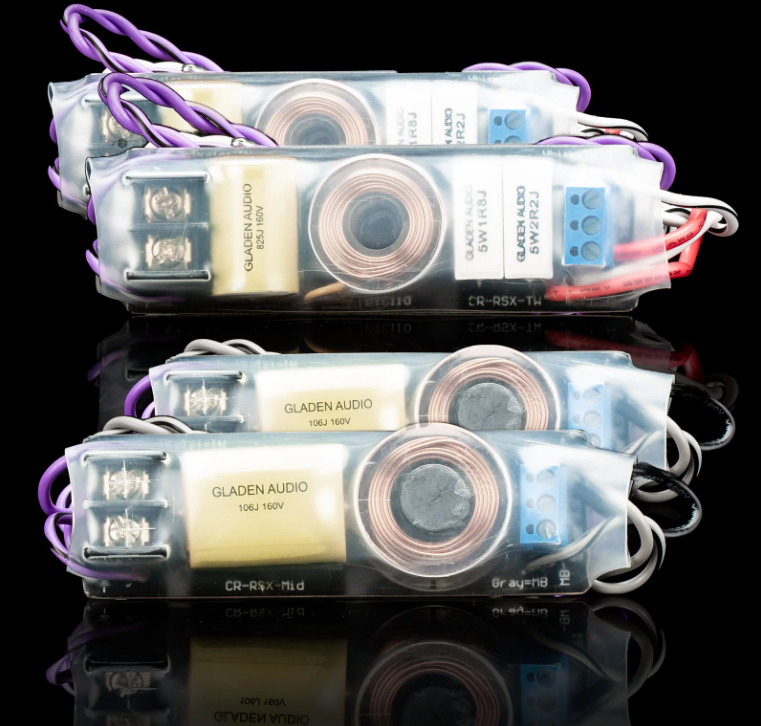

Crossover:
● Tweeter and woofer separated
● Heat shrink tube
● 9 adjustment possibilities
● Gold plated screw terminals
● Bi amping capable
● Compact design
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust cap:Paper
TECHNICAL DATA TWEETER
Cone:Silk fabric
Coil former:Kapton
DOWNLOAD
DATASHEET GLADEN RS-X 130 (PDF)
