ETON PRO 16+

ETON PRO 16+

  • 所属分类:扬声器
  • 人气:
  • 价格:¥9830
  • 发布时间:2023-11-16
  • 产品概述

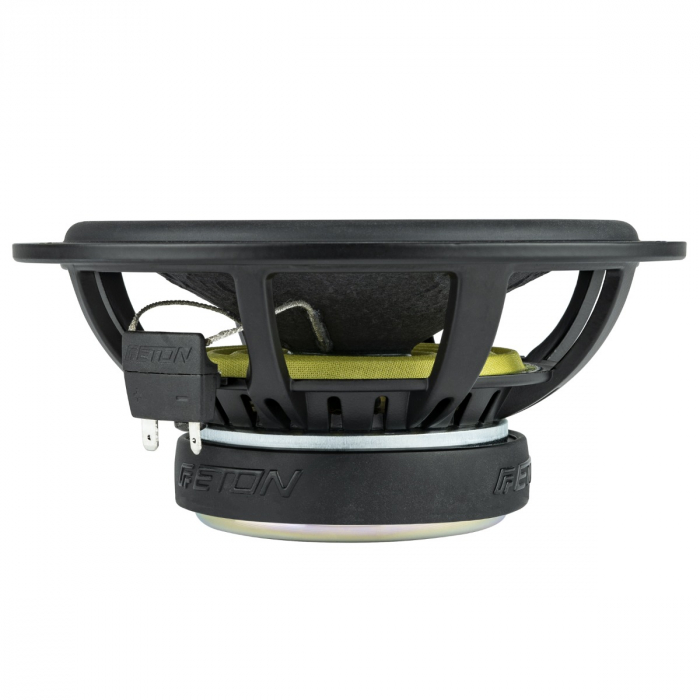

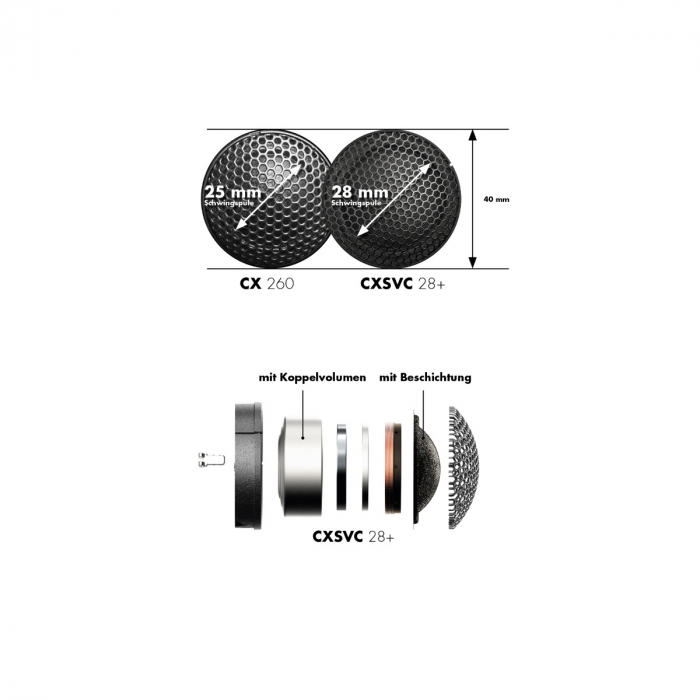

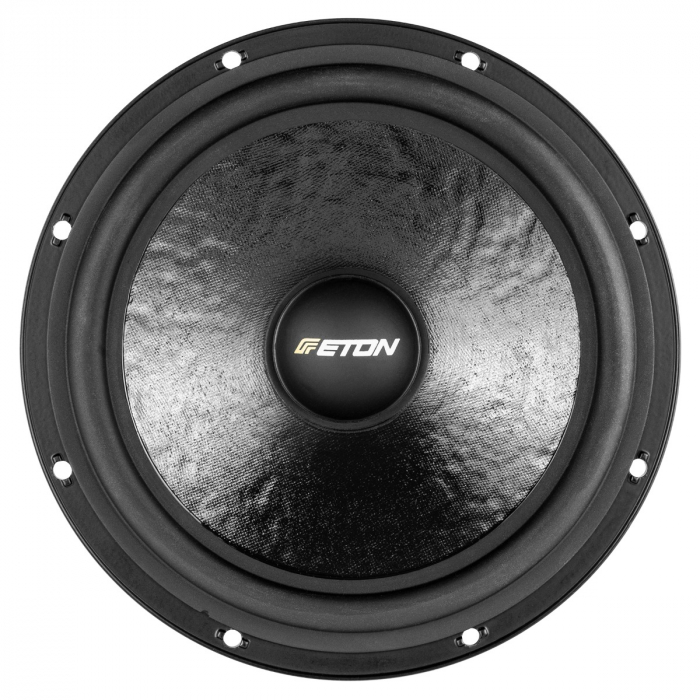

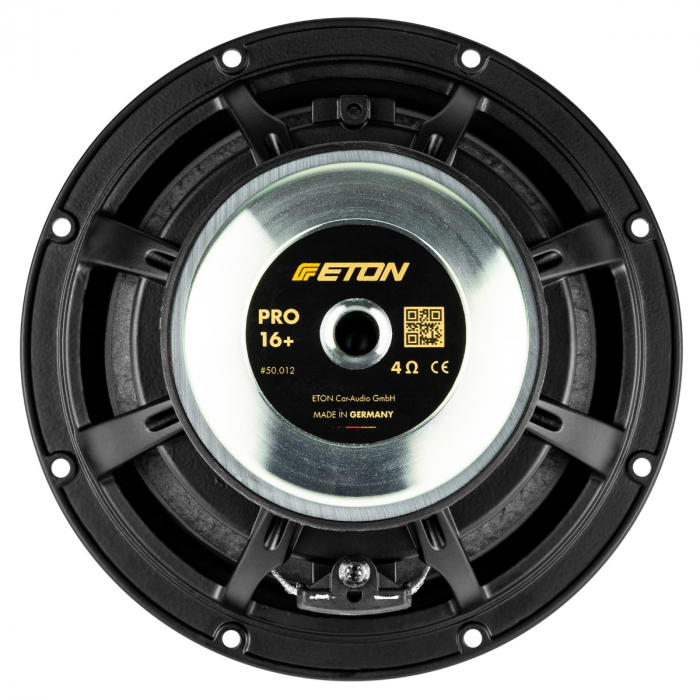

       新开发的双向组件系统,采用手工涂布的高端纸隔膜和铝压铸篮,具有强大的铁氧体磁铁和大芯孔的光泽翻转底板。高品质的连接端子和重型音圈。同级别隐形冠军,在25mm高音喇叭的小安装尺寸中,新开发的28mm手涂织物高音喇叭耦合体积小。全新的高音喇叭以前所未有的特别丝滑细腻、辉煌的高频再现给人留下深刻印象!带有特殊涂层的集成阻尼垫提供全面的温暖和可控的高音享受。大28毫米音圈在较低频率范围内提供明显更多的能量和电平,允许更深的分离和更好的耦合到中低音驱动器。




Product features

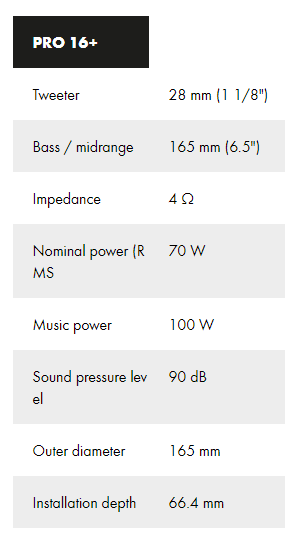

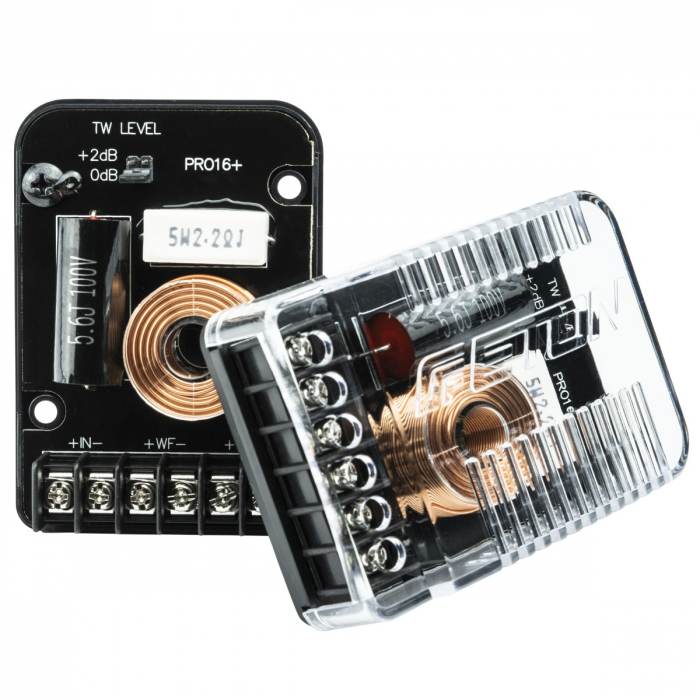

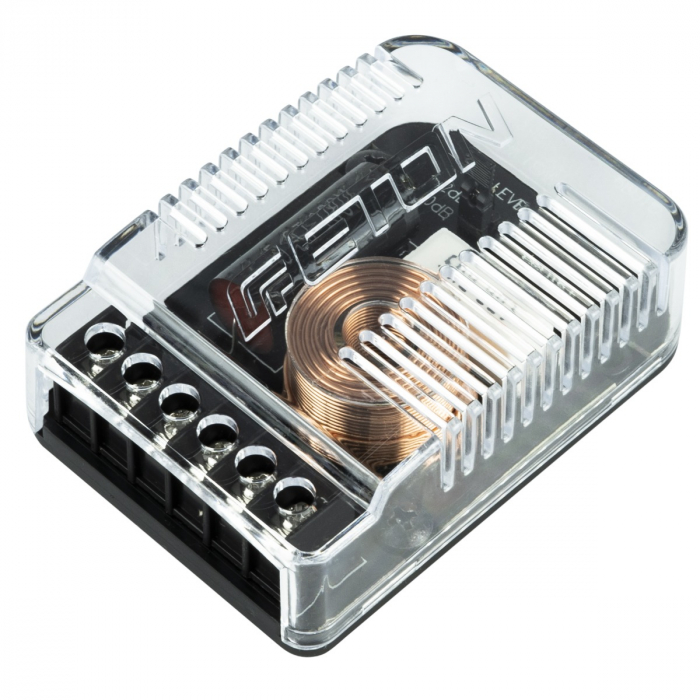

PRO 16+ - 165 mm (6.5") 2-way component system with 28 mm (1 1/8") hand-coated fabric tweeter with coupling volume and reverberant diffusion in a compact installation size. High-end hand-coated paper diaphragm with strong ferrite magnet and gloss-turned base plate with large core bore. Powder-coated die-cast aluminum basket with ventilation and high-quality connection terminals. Tweeter surface-mount and flush-mount enclosure with swivel & pivot function, including high-quality cabinet crossover, 4 Ohm impedance, rated/music power handling 70 W RMS/100 W, 90 dB (1W/m) efficiency.







PRO 16+ 详细参数.pdf
