ETON VW T6-F2.1

       200毫米即插即用型2路前置系统由经过特殊调谐的低音扬声器/中音扬声器组成，配有玻璃纤维纸夹层振膜、长冲程环绕、可加载线圈以及功率极大的铁氧体磁铁，并带有可实现最佳通风效果的大型磁芯孔。玻璃纤维加固的即插即用聚酰胺吊篮带有密封胶带和车辆专用连接端子。定制安装的28毫米织物高音扬声器，包括与车辆匹配的分频器和安装附件。适用于大众T6。德国开发制造。

       为VW T6运输/巴士/多用途货车特别调整的即插即用双向前系统。200毫米(8”)长距低音扬声器，带有车辆专用的玻璃纤维增强聚酰胺篮，密封法兰和车辆专用连接端子，用于非破坏性，集成和可逆安装在车辆中。原来的VW橡胶导音器仍然可以使用。低音炮/中音驱动器配备了强力铁氧体磁铁，带有光泽度翻转底板和大芯孔，达到最佳散热效果。玻璃纤维纸夹层隔膜演奏出极其动感和浓郁的暖音。大型28毫米涂层织物高音扬声器配有精确的三点安装和车辆专用连接器，与低音扬声器/中音驱动器完美协调，这是一个拥有一切的单元!织物高音喇叭专门针对车辆的声学特性进行了调谐，并配备了钕磁铁。3欧姆阻抗，即使在串联头单元也能获得特别高的效率，80 W RMS/120 W音乐功率处理，89 dB特征声压，包括高质量的交叉。制造与开发德国制造。

Product features

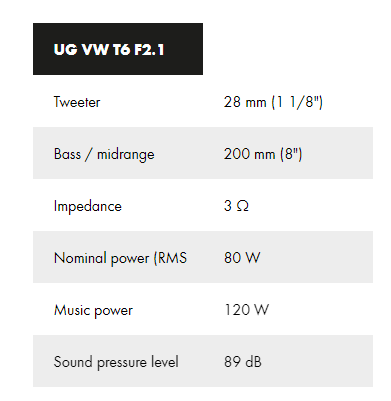

Specially tuned plug and play 2-way front system for the VW T6 Transporter / Bus / Multivan. 200 mm (8") long-throw woofer with vehicle-specific, fiberglass-reinforced polyamide basket with sealing flange and vehicle-specific connection terminals for non-destructive, integrated and reversible installation in the vehicle. The original VW rubber sound guide can still be used. The woofer / midrange driver is equipped with a strong ferrite magnet with gloss turned base plate and large core hole for optimal cooling. The fiberglass-paper sandwich diaphragm plays extremely dynamic and full-bodied warm. The large 28 mm coated fabric tweeters with precise 3-point mounting and vehicle-specific connectors harmonize perfectly with the woofers / midrange drivers, a unit that has it all! The fabric tweeters were specially tuned to the acoustic properties in the vehicle and are equipped with a neodymium magnet. 3 Ohm impedance for particularly high efficiency even at the series head unit, 80 W RMS / 120 W music power handling, 89 dB characteristic sound pressure, including high-quality crossovers. Manufacturing and development Made in Germany.

VW T6-F2.1详细参数1.pdf

VW T6-F2.1详细参数2.pdf
