MOSCONI PICO 6|8 DSP

完美的OEM集成:强大的DSP放大器优化的工厂无线电使用。六个模拟输入高达30 V，灵活的路由，3倍输入均衡器和延迟。具有4 x 50瓦+ 2 x 90瓦的有源和半有源系统的理想选择，以及经典的前+后+子应用。具有两个数字输入(SP-Dif和BT+)和两个处理过的线路输出，为未来做好准备。

无传感器高速PWM功率放大器:高效率的PWM输出级，具有当今世界上最快的载波频率(bbb2.0 MHz)。调制是在没有DAC的情况下直接从DSP的48 kHz TDM信号中完成的，因此本底噪声为零和THD+N~ 0.02% /1 W。

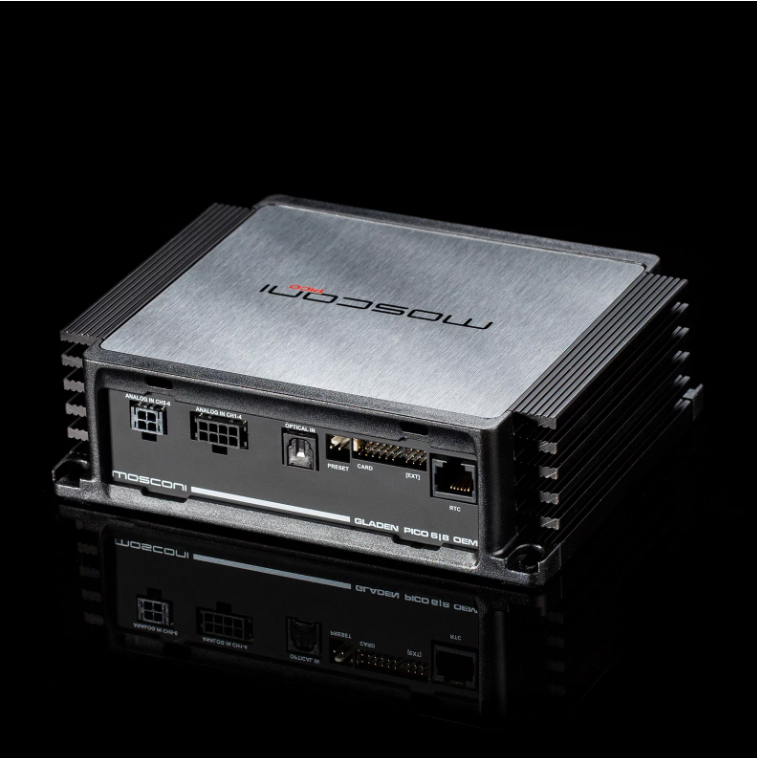

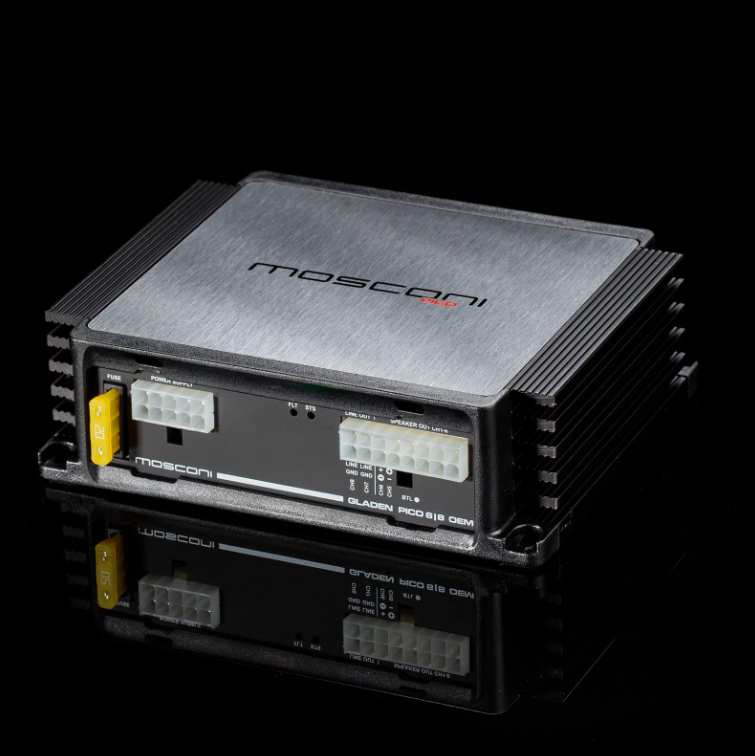

OVERVIEW MOSCONI PICO 6|8 DSP

Perfect OEM integration:

Powerful DSP amplifier optimized for factory radio use. Six analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 Watts + 2 x 90 Watts ideal for active and semi-active systems, as well as classic front + rear + sub application. With two digital inputs (SP-Dif and BT+) and two processed line outs ready for the future.

Transducerless high-speed PWM power amplifiers:

High-efficiency PWM output stages with the fastest carrier frequency in the world today (> 2 MHz). The modulation is done without DAC directly from the 48 kHz TDM signal of the DSP, thus the noise floor goes to zero and THD+N ~ 0.02 % / 1 W.

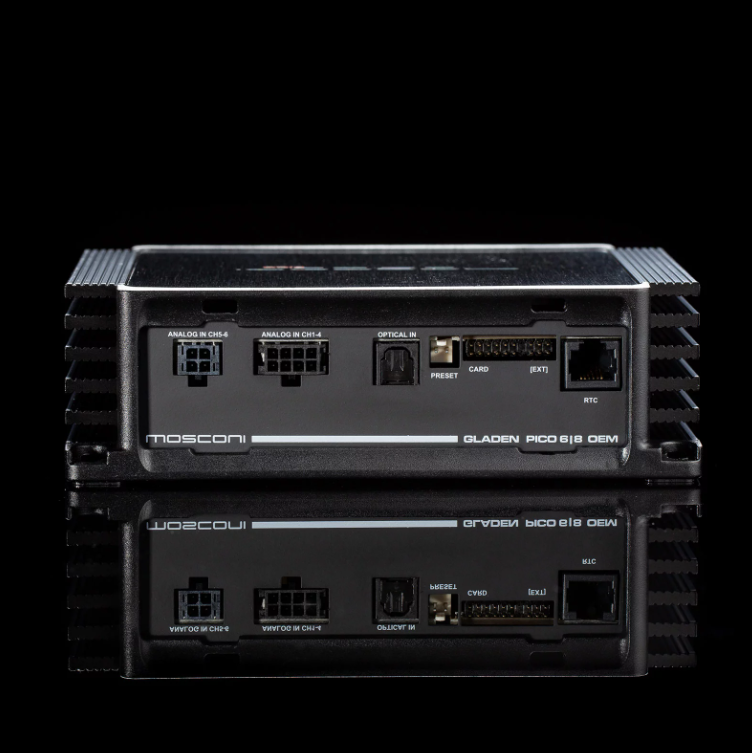

INPUT:

·4 x analog inputs balanced (high-level) up to 30 V

·2 x analog inputs switchable high level / low level)

·1 x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate)

·1 x bluetooth port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos_BTS bluetooth streaming module)

·Bluetooth extended digital audio port (BT+)
 (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)

DSP:

·912 MHz, 32-bit audio port, 64-bit core

·Double precision 56 Bit filter calculation

·6144 SIMD instructions per sample at 48 kHz
 ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR

CONTROL:

·1 x remote connector (analog, for RTC.2 roti remote control)

·1 x bluetooth control port (Connection MOS-BT3.0 (app control), RC-Can (CAN-Bus control), MOS_USB2.0 (programming dongle)

·1 x remote out, 1 x remote in, auto remote for high level connection

·Connections with MOLEX® plug contacts

·Very small size with low heat generation, best suited for installation behind panels

SOFTWARE:

·3 x 9 band parametric input EQ (de-equalizing)

·6 x input delay 0 - 3 ms / 0.01 ms (de-delay)

·10 x input level control digital (signal conditioning)

·Flexible mixer for signal routing
 (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)

·6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
 (parametric, relative phase remains stable)

·8 x 10 band output filters

·Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)

·8 x speaker-delay 0 - 12 ms, 0,02 ms

·8 x speaker phase switch

TECHNICAL DATA MOSCONI PICO 6|8 DSP

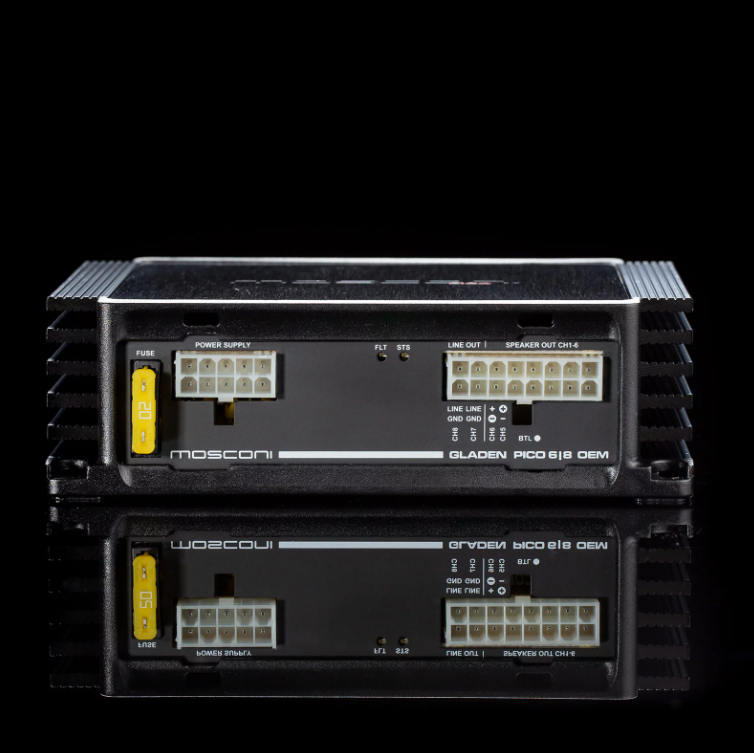

OUTPUT POWER/OUTPUT SIDE:

Output power @ 4Ω:4 x 50 Watts (channel 1 - 4) 3-Ohm stable (not bridgeable!)

Output power @ 4Ω:2 x 90 Watts (channel 5 - 6) 2-Ohm stable / bridgeable

Output power @ 4Ω:4 x 50 Watts + 1 x 240 Watts (bridged channel 5 + 6)

Line Out:2 x 2 Vrms Line Out

SPECIFICATIONS:

Input voltage:0,3 - 15 V

Overall efficiency:> 80 %

Auto-On (only High Level):Off - BTL

Dimensions:150 x 133 x 46 mm

Weight:800 Gramm
