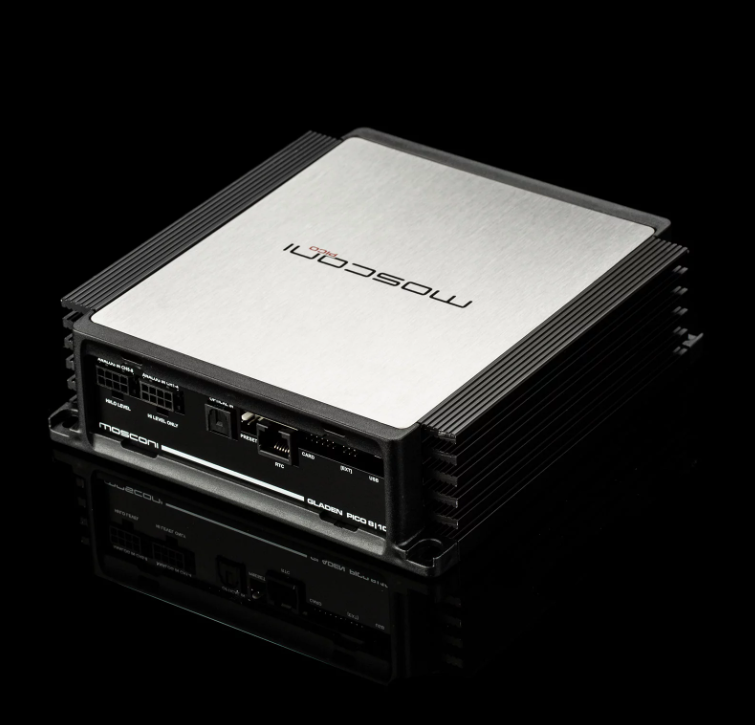

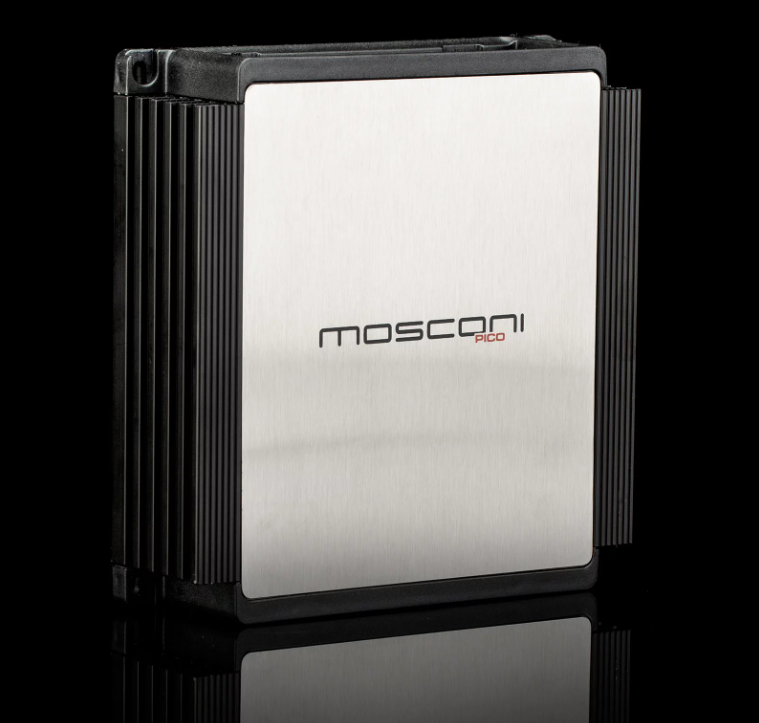

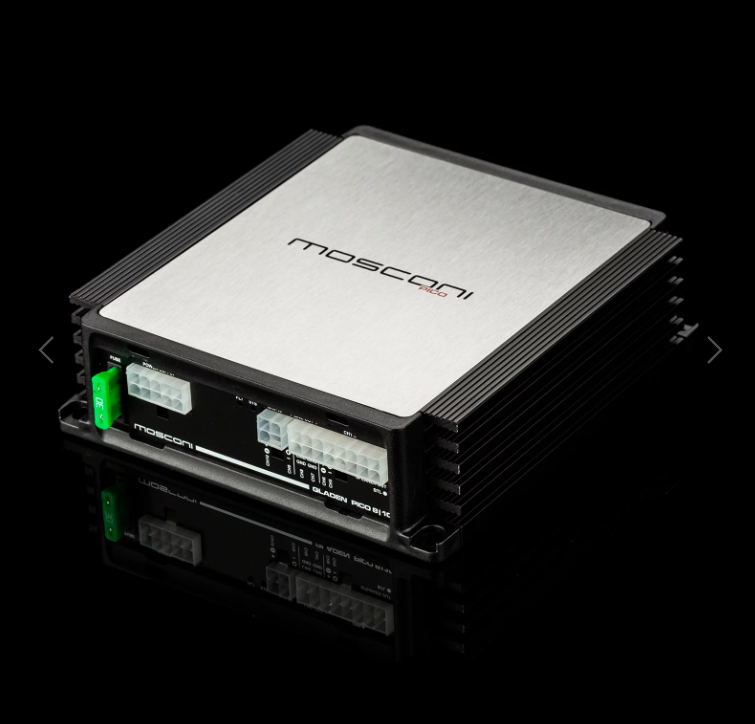

MOSCONI PICO 8|10 DSP

完美的OEM集成:强大的DSP放大器优化的工厂无线电使用。六个模拟输入高达30 V，灵活的路由，3倍输入均衡器和延迟。具有4 x 50瓦+ 4 x 90瓦，非常适合有源和半有源系统，以及经典的前+后+子应用。具有两个数字输入(SP-Dif和BT+)和两个处理过的线路输出，为未来做好准备。

无传感器高速PWM放大器:高效率的PWM输出级，具有当今世界上最快的载波频率(bbb2.0 MHz)，使HiRes音频传输和极小的尺寸成为可能。直接从DSP的96 kHz TDM信号进行调制，无需DAC，因此本底噪声接近于零，THD + N ~ 0.02% / 1 W。

OVERVIEW MOSCONI PICO 8|10 DSP

Perfect OEM integration:

Powerful DSP amplifier optimized for factory radio use. Six analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 Watts + 4 x 90 Watts ideal for active and semi-active systems, as well as classic front + rear + sub application. With two digital inputs (SP-Dif and BT+) and two processed line outs ready for the future.

Transducerless High Speed PWM Amplifiers:

High efficiency PWM output stages with the fastest carrier frequency in the world today (> 2 MHz), enables HiRes audio transmission and the extremely small size. The modulation is done without DAC directly from the 96 kHz TDM signal of the DSP, thus the noise floor is close to zero and THD + N ~ 0.02 % / 1 W.

The Pico 1 is also available as an 18 Volt version. This is specially adapted to the electrical system of the latest Tesla models.

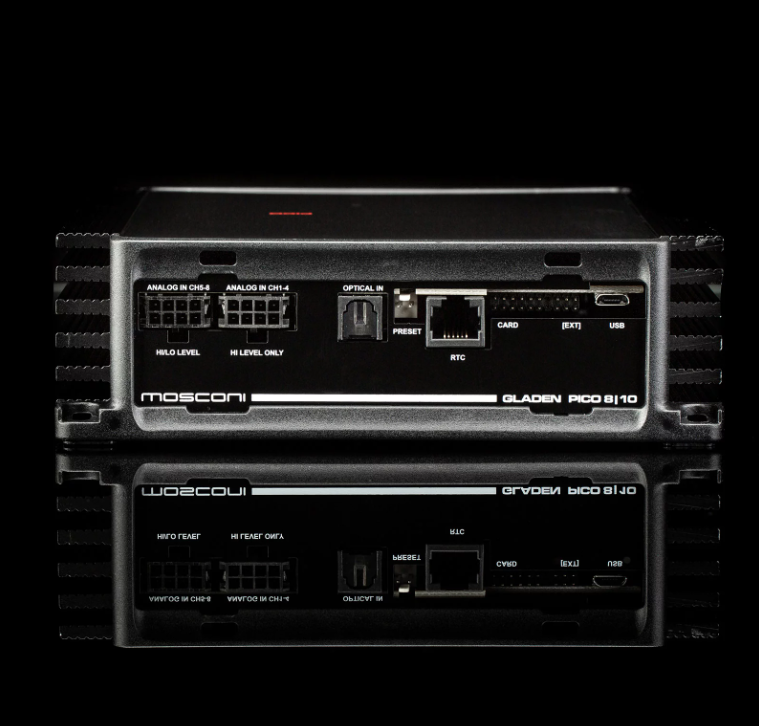

INPUT:

·4 x analog inputs balanced (high-level) up to 30 V

·4 x analog inputs switchable (high-level / low-level)

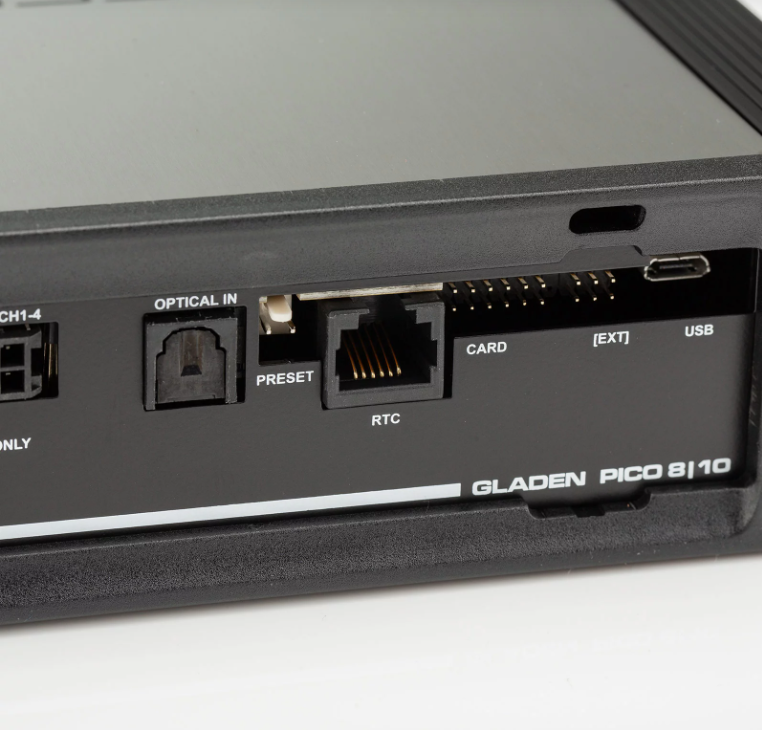

·1 x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate)

·1 x bluetooth port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos_BTS bluetooth streaming module)

·1 x bluetooth extended digital audio port (BT+)

 (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS96k BT streaming module or extended analog inputs)

DSP:

·912 MHz, 32-bit audio port, 64-bit core

·Double precision 56 bit filter calculation

·6144 SIMD instructions per sample at 48 kHz
 ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR

CONTROL:

·1 x USB serial data (connection PC / GUI)

·1 x remote connector (analog, for RTC.2 Poti remote control)

·2 x bluetooth control port (connection MOS-BT3.0 (App control), RC-Can (CAN bus control)

·1 x remote out, 1x remote In, auto-remote with highlevel connection

·Connections with MOLEX® plug contacts

·Very small size with low heat generation, best suited for installation behind cladding

SOFTWARE:

·3 x 9 band parametric input EQ (de-equalizing)

·6 x input delay 0 - 3 ms / 0.01 ms (de-delay)

·10 x input level control digital (signal conditioning)

·Flexible mixer for signal routing
(Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)

·6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
(parametric, relative phase remains stable)

·10 x 10 band output filters

·Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)

·10 x speaker delay 0 - 12 ms, 0.01 ms

·10 x speaker phase switch

TECHNICAL DATA MOSCONI PICO 8|10 DSP

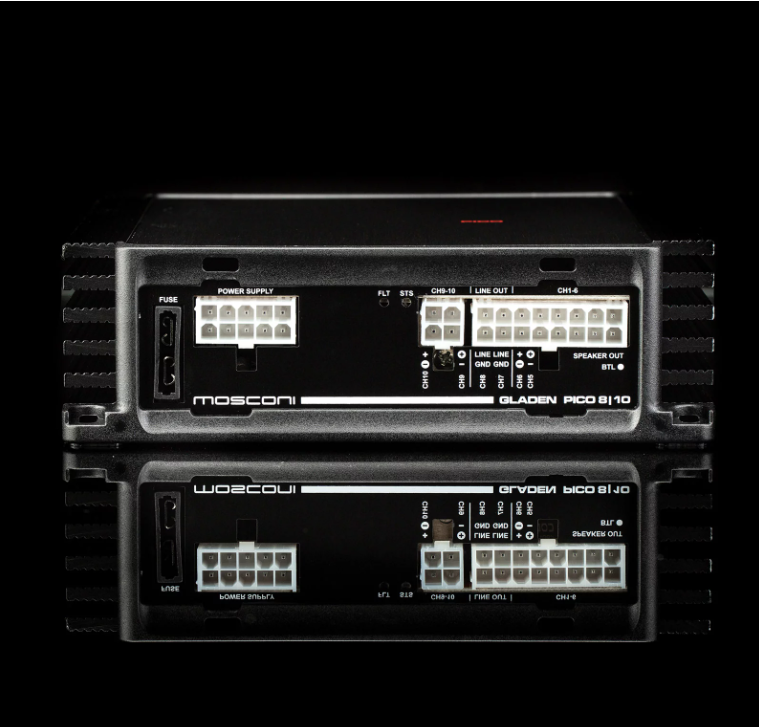

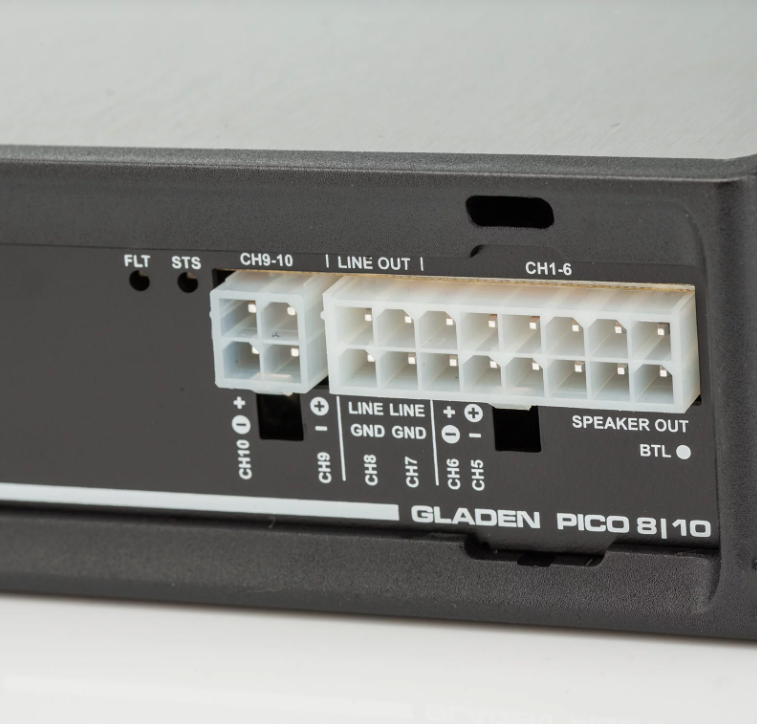

OUTPUT POWER/OUTPUT SIDE:

Output power @ 4Ω:4 x 50 Watts (channel: 1 - 4) 3-Ohm stable (not bridgeable!)

Output power @ 4Ω:4 x 90 Watts (Channel: 5 + 6 / 9 + 10) 2-Ohm stable / bridgeable

Output power @ 4Ω:4 x 50 Watts + 2 x 240 Watts (bridged channel 5 + 6 / 9 + 10)

Line Out:2 x 2 Vrms Line Out (channel: 7 + 8)

SPECIFICATIONS:

Input voltage:0,3 - 15 V

Overall efficiency:> 80 %

Auto-On (only High Level):Off - BTL

Dimensions:150 x 160 x 46 mm

Weight:1050 gramm
