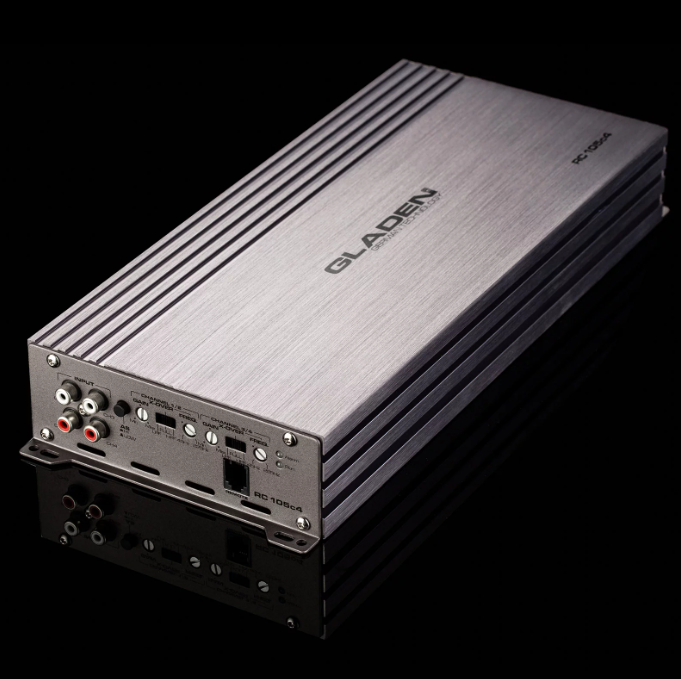

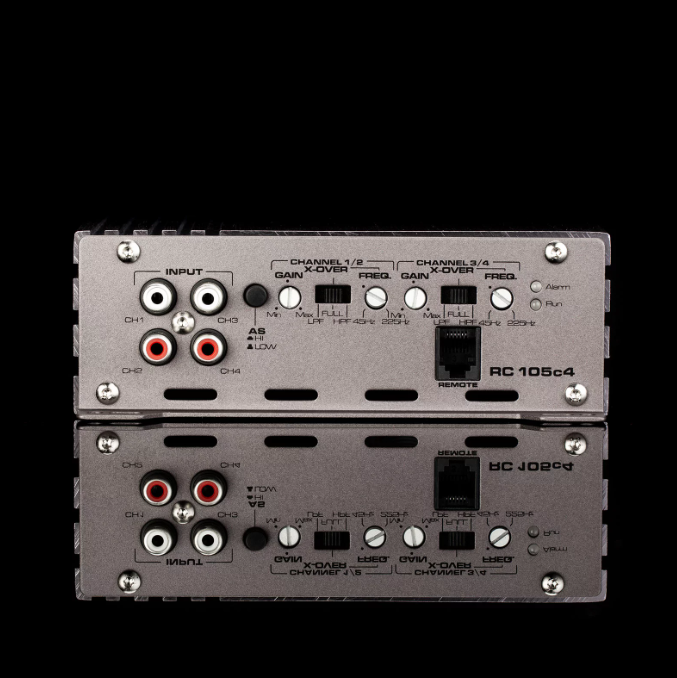

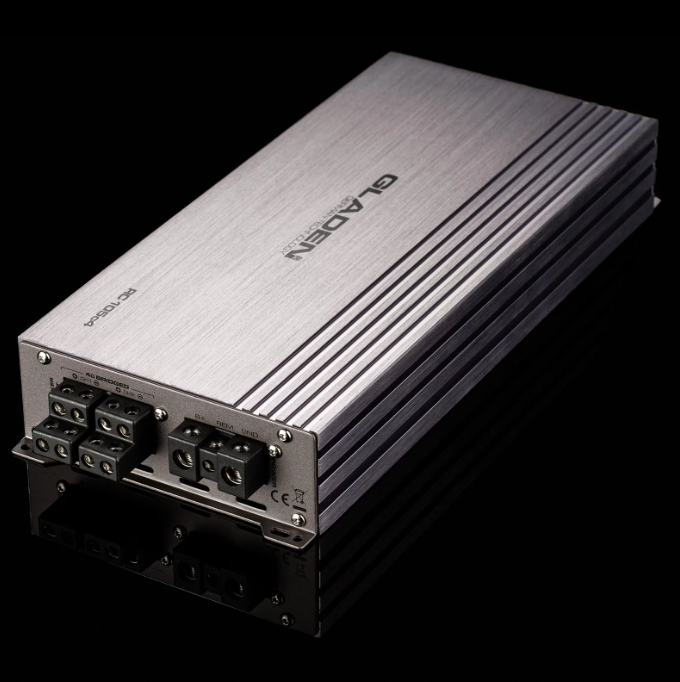

GLADEN RC 105C4
● 4 Ohm: 4 x 105 Watts
● 4 Ohm bridged: 2 x 300 Watts
● CLASS-A/B
OVERVIEW GLADEN RC 105C4
● 4-channel amplifier Class A/B
● High-level with auto sense
● Double side PCB and
● SMD components
● Optional remote control module
TECHNICAL DATA GLADEN RC 105C4
POWER OUTPUT:
RMS power, 4 Ohm:4 x 105 Watts
RMS power, 4 Ohm gebrückt:2 x 300 Watts
SPECIFICATIONS:
Thermal protection:80 °C
THD @ 4 Ω / 50% Pmax:0.25 %
Signal/noise:99 dB
Band width +- 1 dB:20 - 20000 Hz
Input sensitivity:0.2 - 10 Vrms
Low input impedance:5k Ω
High input impedance:50 Ω (with RC-HLT)
Damping @ 1000 Hz:65
Power consumption, idle:0.96 A
Power cons. 4 Ω stereo:45 A
Power cons. 2 Ω mono:48 A
Weight:3,3 kg
Dimensions:Length: 357 mm x Width: 150 mm x Height: 50 mm
DOWNLOAD
DATASHEET GLADEN RC 105C4 (PDF)
