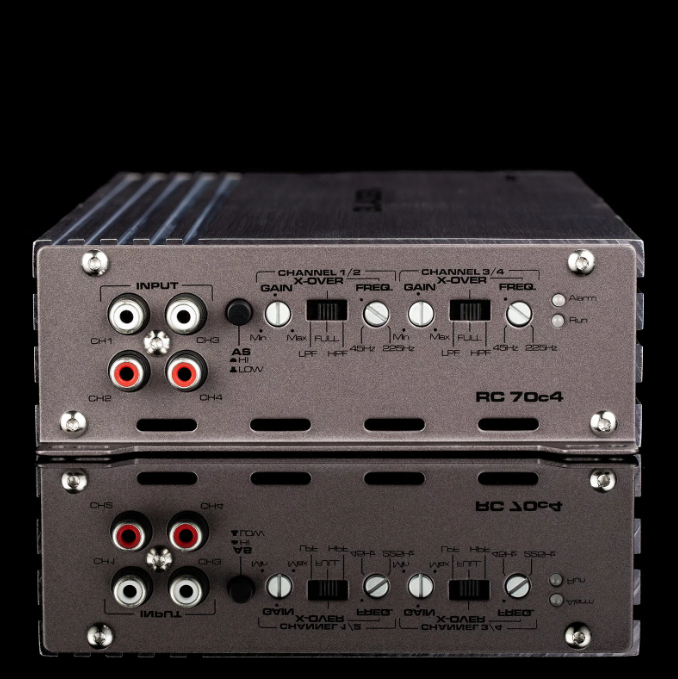

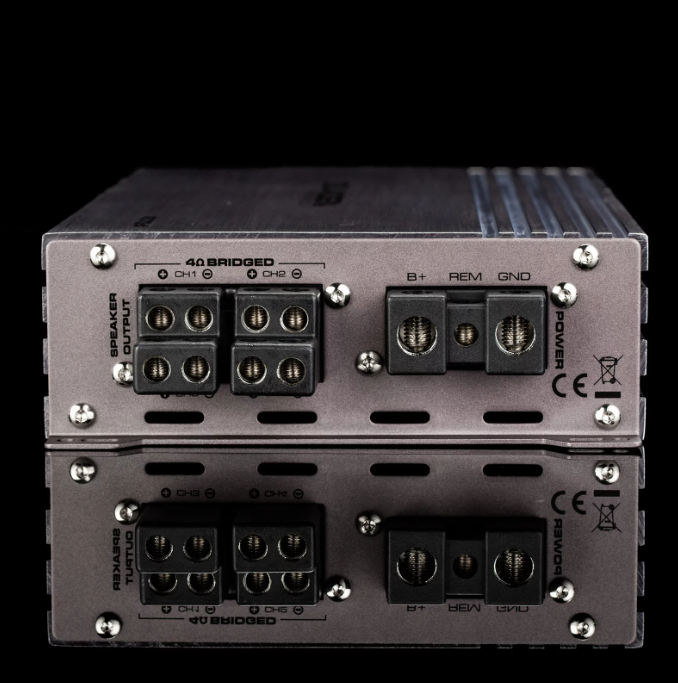

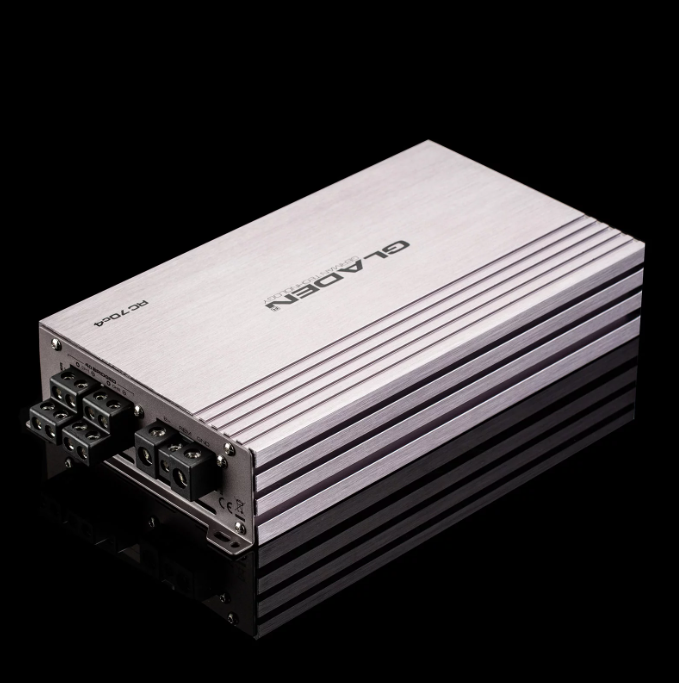

GLADEN RC 70C4
● 4 Ohm: 2 x 68 Watts
● 4 Ohm bridged: 2 x 210 Watts
● Class A/B
OVERVIEW GLADEN RC 70C4
● 4-channel amplifier Class A/B
● High-level with auto sense
● Double side PCB and
● SMD components
TECHNICAL DATA GLADEN RC 70C4
POWER OUTPUT:
RMS power, 4 ohms (channel 1 - 4):4 x 68 Watts
RMS power, 4 Ohm bridged:2 x 210 Watts
SPECIFICATIONS:
Thermal protection:80 °C
THD @ 4 Ω / 50% Pmax:0.5 %
Signal/noise:95 dB
Band width +- 1 dB:20 - 20000 Hz
Input sensitivity:0.2 - 10 Vrms
Low input impedance:5 kΩ
High input impedance:50 Ω (with RC-HLT)
Damping @ 80 Hz:50
Power consumption, idle:0.75 A
Power cons. 4 Ω stereo:29 A
Power cons. 4 Ω bridged:47 A
Power cons. 2 Ω stereo:47 A
Weight:2.2 kg
Dimensions:Length: 283 mm x Width: 150 mm x Height: 50 mm
