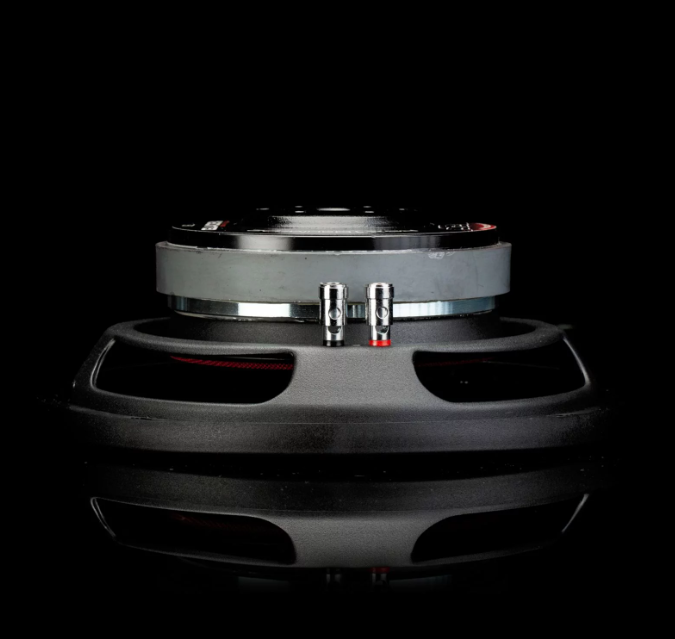

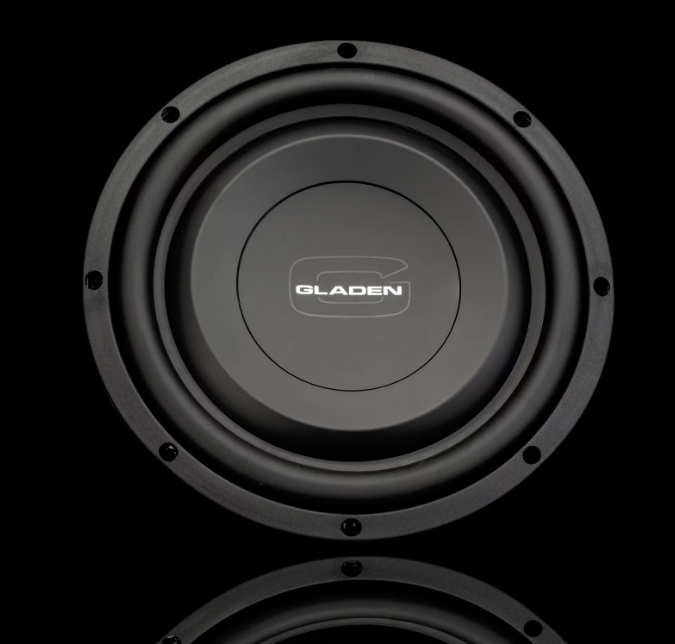

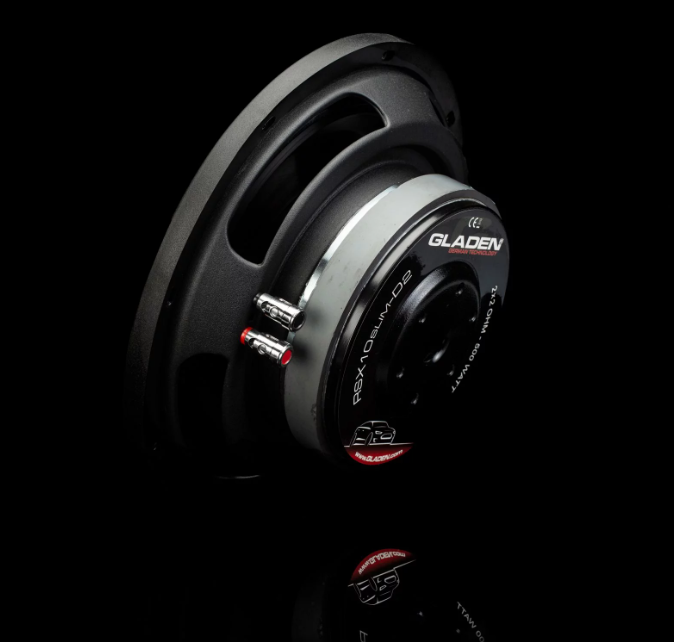

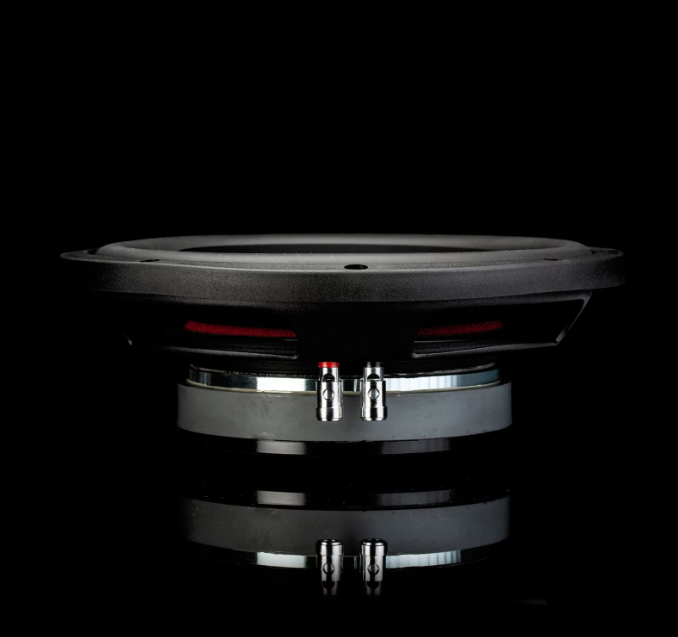

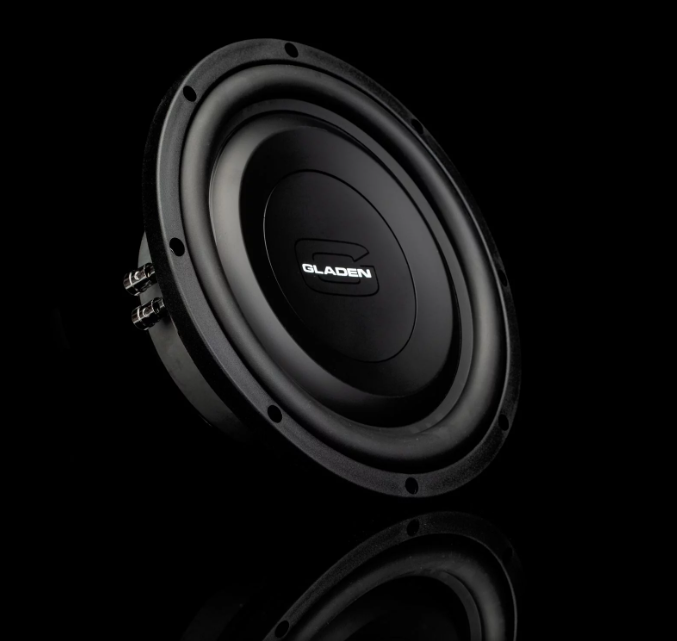

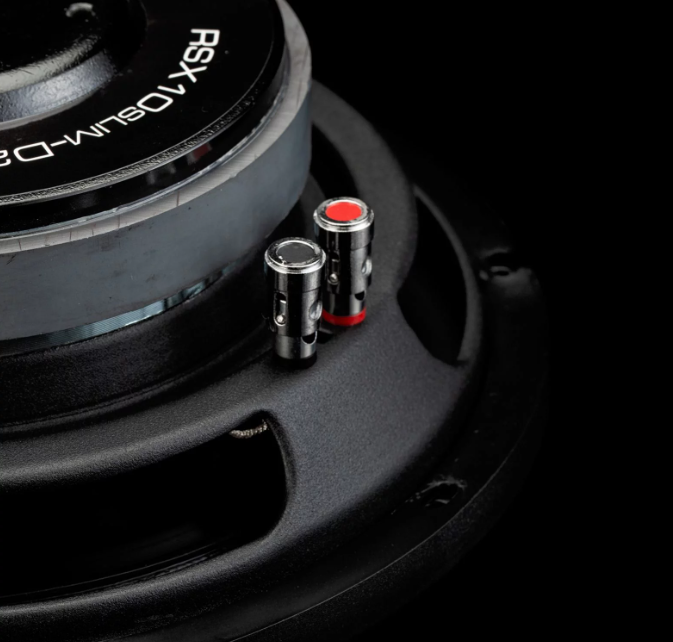

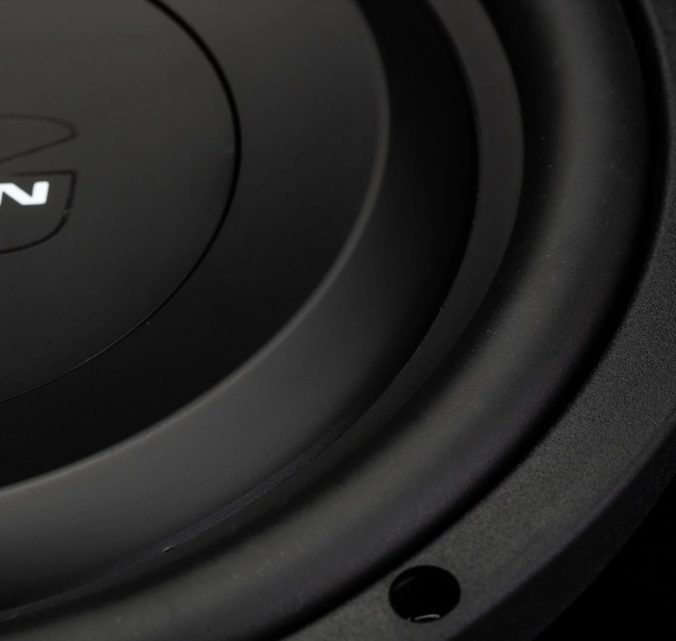

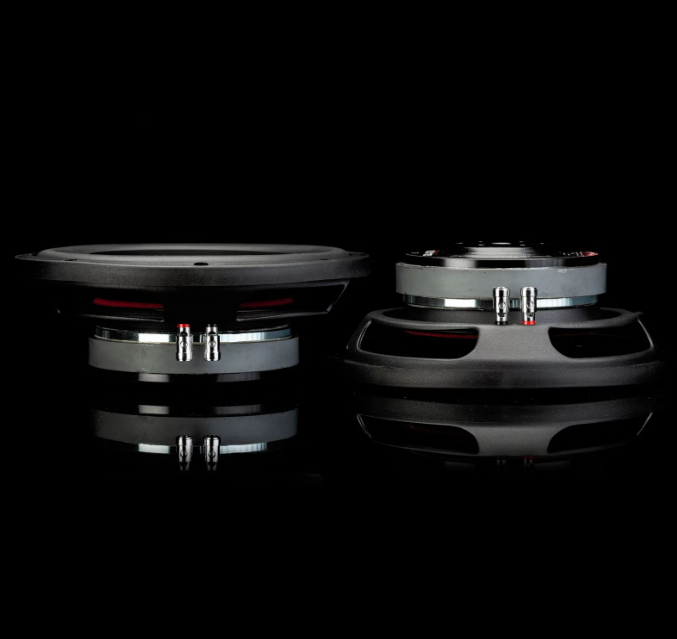

GLADEN RS-X 10 SLIM
● 10" / 25 cm SLIM
● 500 / 250 Watts
● 2 x 2 Ohm impedance
OVERVIEW GLADEN RS-X 10 SLIM
● PP membrane
● PP dustcap
● Rubber surround
● Suitable for closed and bass reflex enclosures
● Also available as finished enclosure GA-RSX10SLIM-SB-CU
TECHNICAL DATA RS-X 10 SLIM
MATERIAL:
Cone:PP
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust Cap:PP
SPECIFICATIONS:
DC resistance (Rdc):2 x 1,8 Ω
Nominal impedance (ZN):2 x 2 Ω
Resonance frequency (fs):42 Hz
Electrical Q factor (Qes):0,6
Total Q factor (Qts):0,58
Moving mass (Mms):107 g
Effective piston area (Sd):350 cm2
Equivalent air volume (Vas):23,4 cm3
SPL 2,83V/1m:86,6 dB 1W/1m
DOWNLOAD
DATASHEET GLADEN RS-X 10 SLIM (PDF)
