高端系统包括一个165毫米低音扬声器和一个25毫米圆顶高音扬声器(总是成对)。扬声器系统包括无源分频器(不包括交流有源版本)。完整的格拉德零扬声器系统是在德国设计和制造的。为了在原来的安装位置安装高音喇叭，塑料外壳可以拆卸。为了使高音最佳对齐，可以使用可选的格拉德吊舱。
OVERVIEW
GLADEN ZERO 165

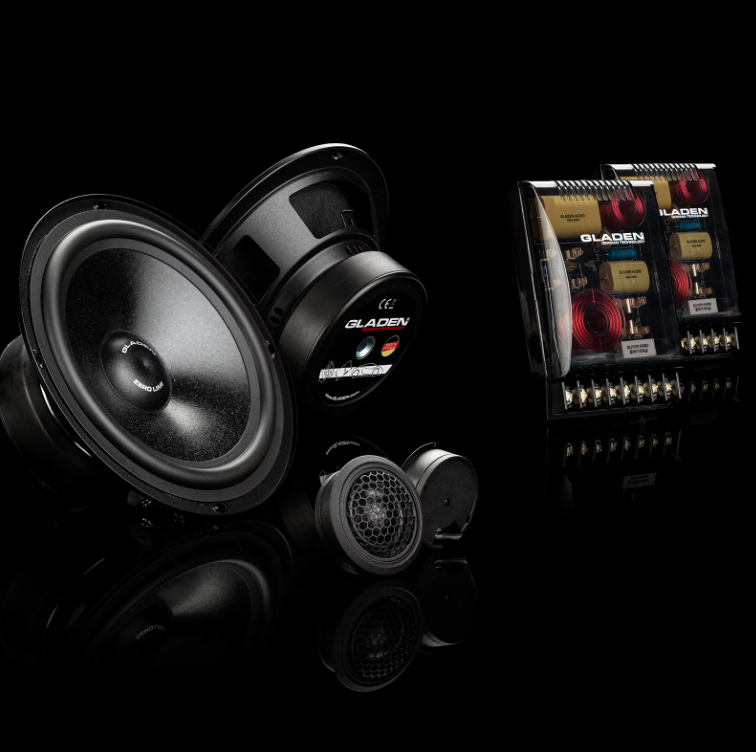

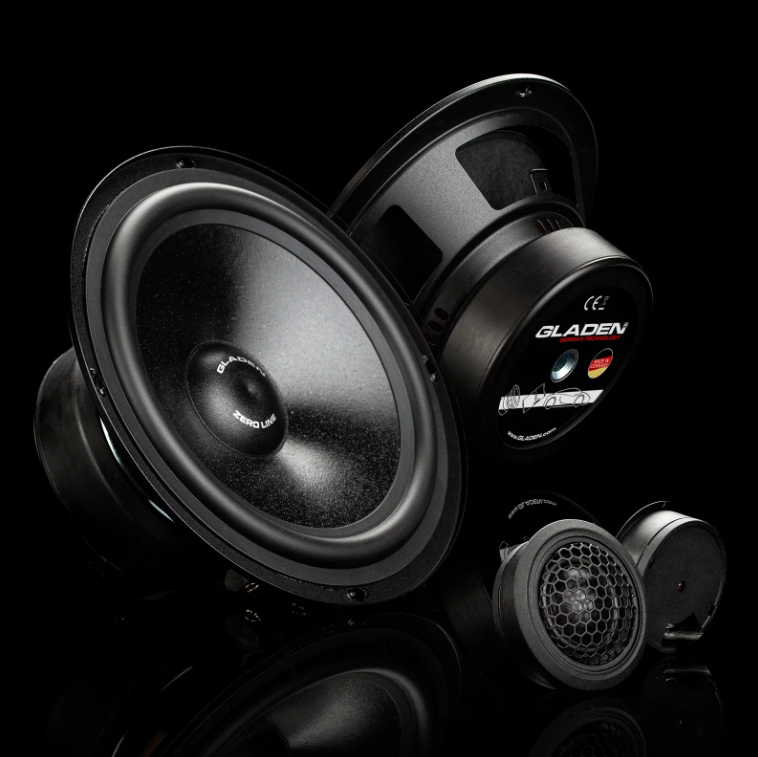

High-end system consisting of a 165 mm woofer and a 25 mm dome tweeter (always in pairs). A passive crossover is included for the speaker system (not for AC active version). The complete Gladen Zero speaker system is designed and built in Germany.
For the installation of the tweeter in original mounting locations, the plastic housing can be disassembled. For optimal alignment of the tweeter, the optional Gladen PODs can be used.

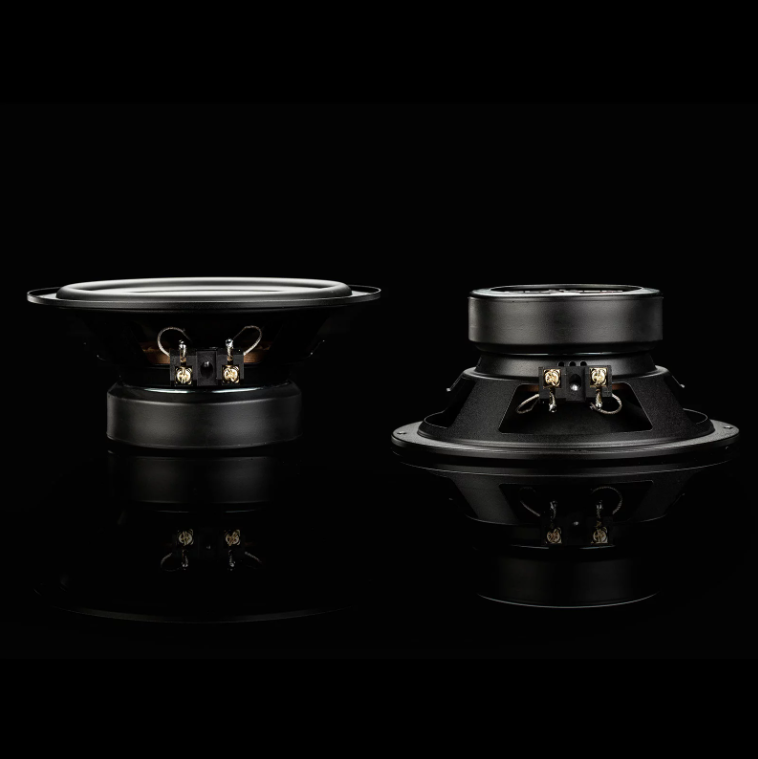

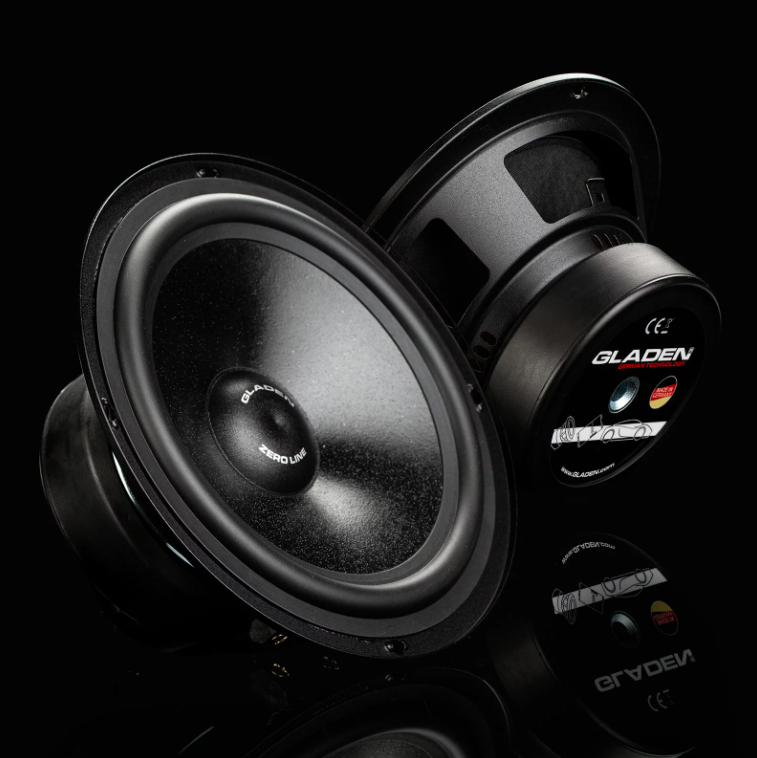

Woofer:
● Size: 165 mm
● Sand coated paper diaphragm
● Sheet steel basket
● Nomex centering spider
● 25 mm voice coil
● 3 Ohm impedance

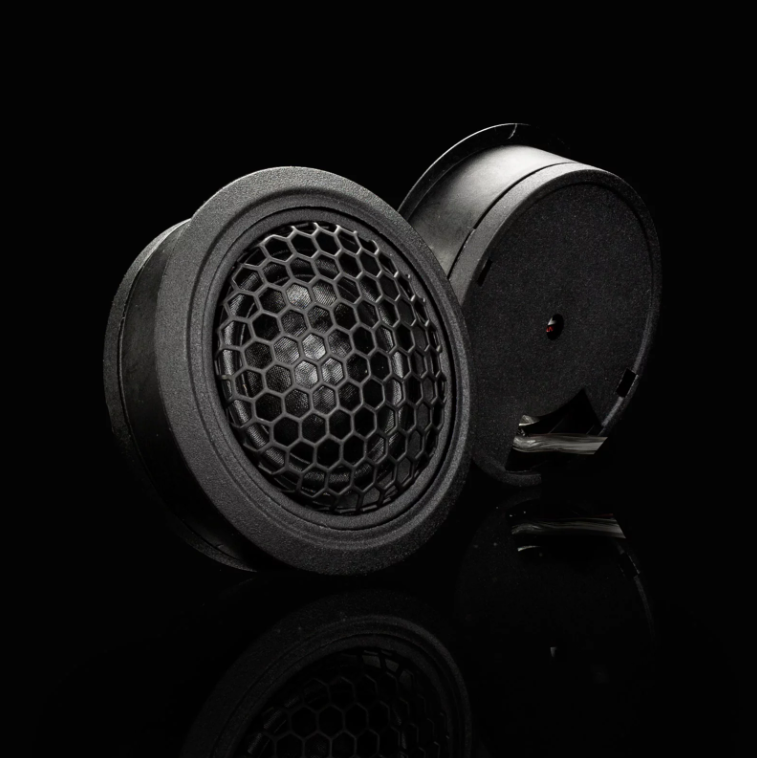

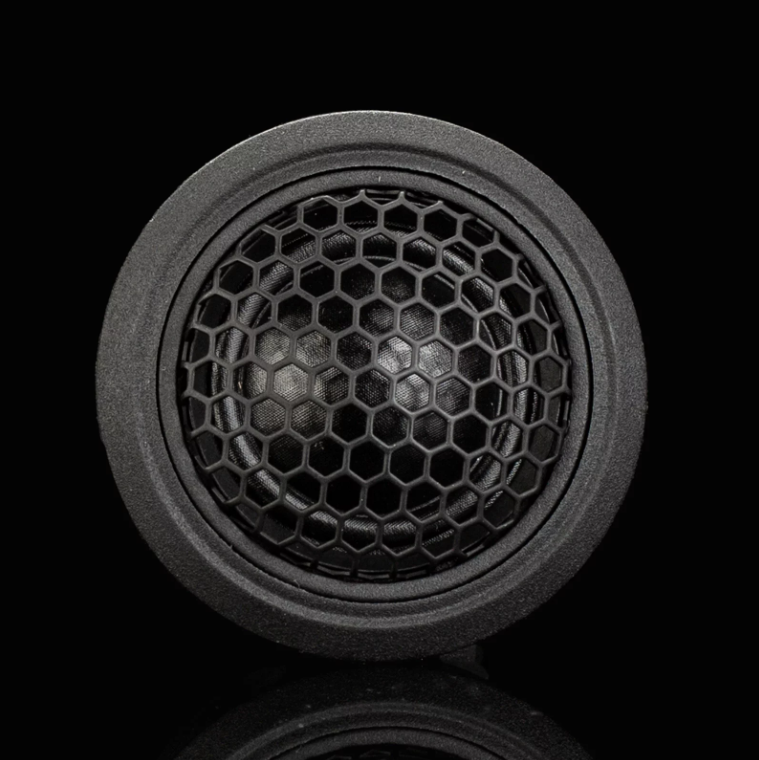

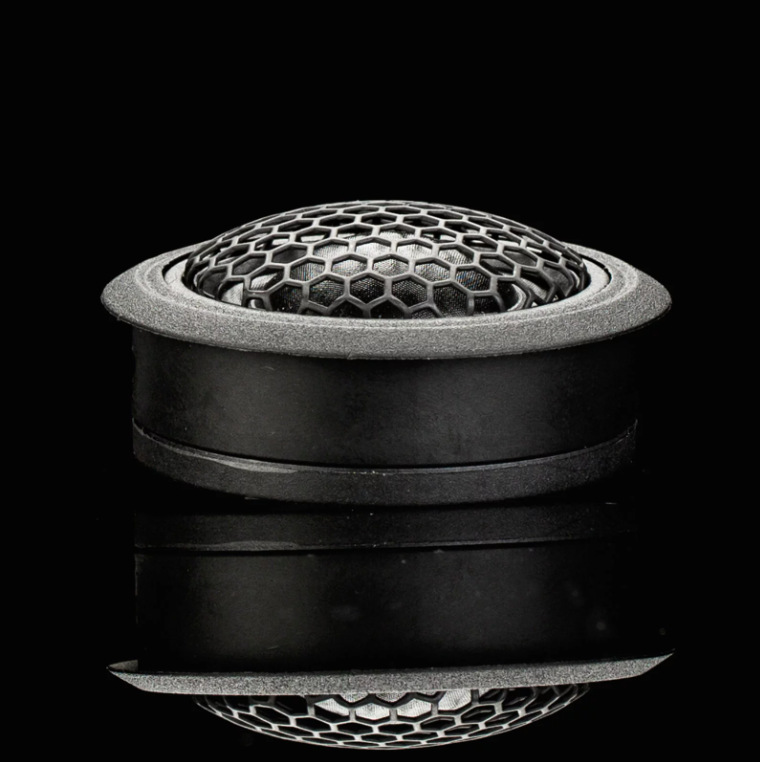

Tweeter:
● Size: 25 mm (voice coil)
● Silk-fabric diaphragm
● Hexagon grid
● 4 Ohm impedance
● Optional accessories: Gladen PODs

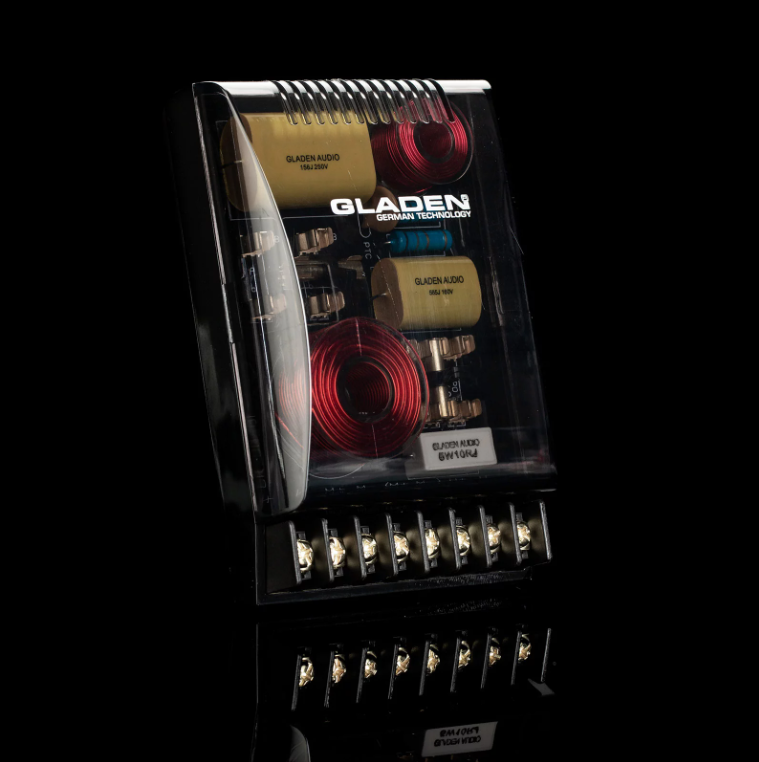

Crossover, not included for active version (AC)
● Plexiglas housing
● 504 setting options
● Gold-plated screw terminals
● PTC tweeter protection
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust cap:Silk fabric
TECHNICAL DATA TWEETER
Cone:Silk fabric
Coil former:Kapton
DOWNLOAD
DATASHEET GLADEN ZERO 165 (PDF)
TEST AUTO HIFI GLADEN ZERO 165 (PDF)
