OVEVIEW GLADEN ZERO 165.3

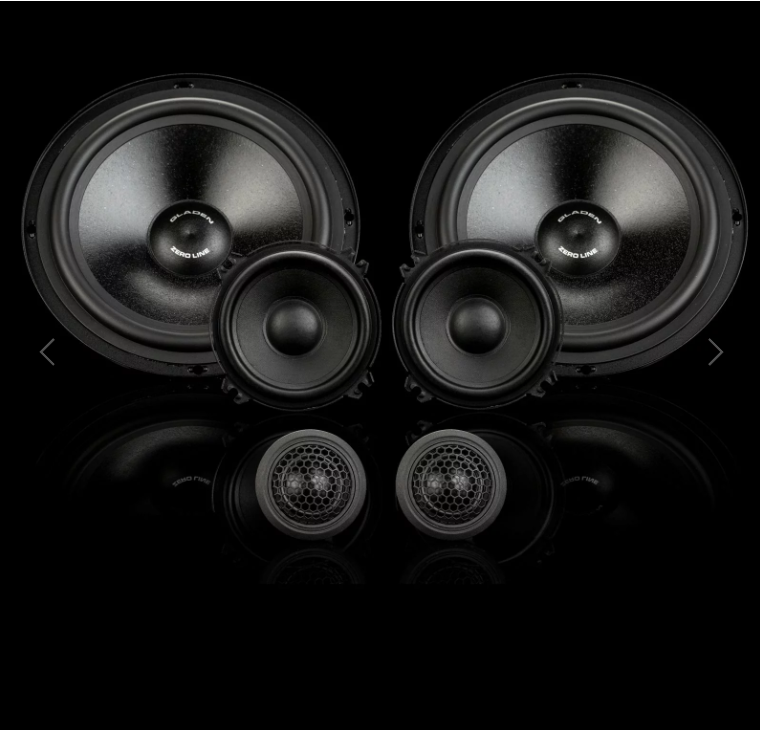

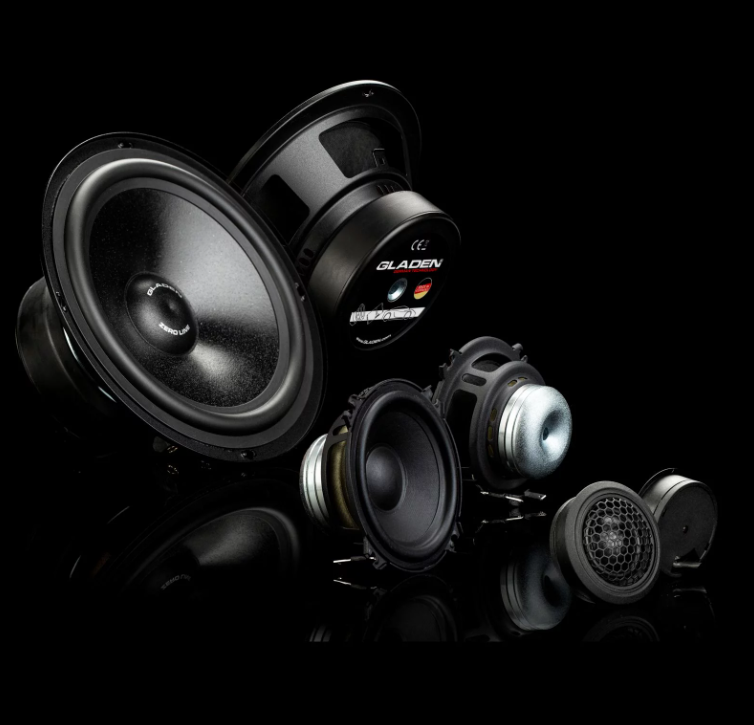

High-end system consisting of a 165 mm woofer, a 80 mm midrange driver and a 25 mm tweeter dome (always in pairs).
The 2-way crossovers allow semi-active operation on at least 4 amplifier channels. The complete Zero 165.3 speaker system is designed and built in Germany.

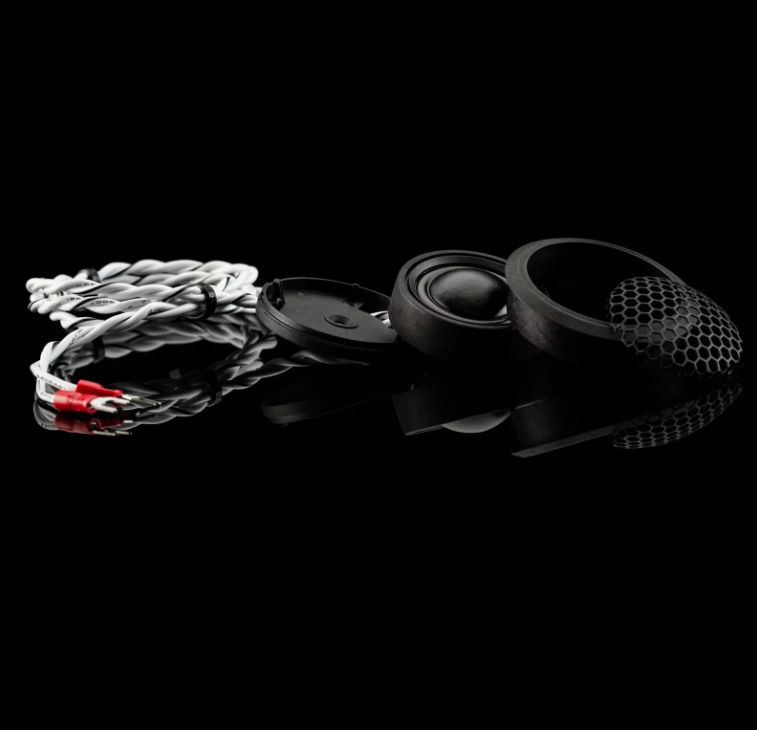

For mounting the tweeter in original mounting locations, the plastic housing can be disassembled. For optimal alignment of the tweeter, the optional Gladen PODs can be used.

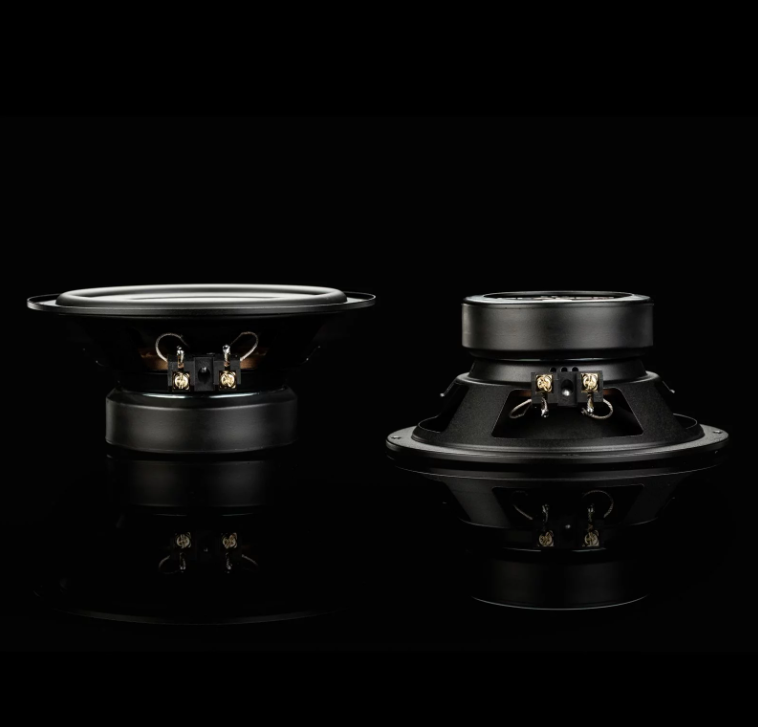

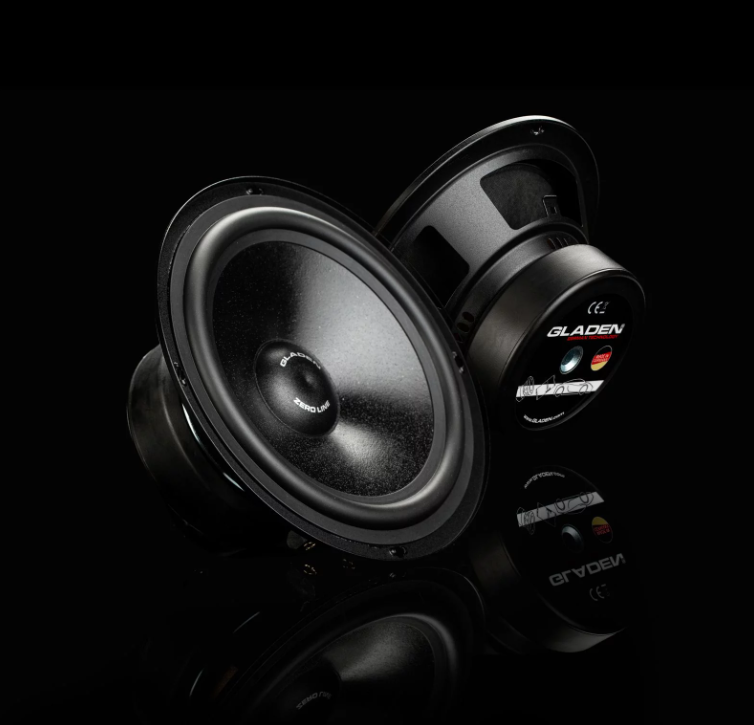

Woofer:
● Size: 165 mm
● Sand coated paper diaphragm
● Sheet steel basket
● Nomex centering spider
● 25 mm voice coil
● 3 Ohm impedance

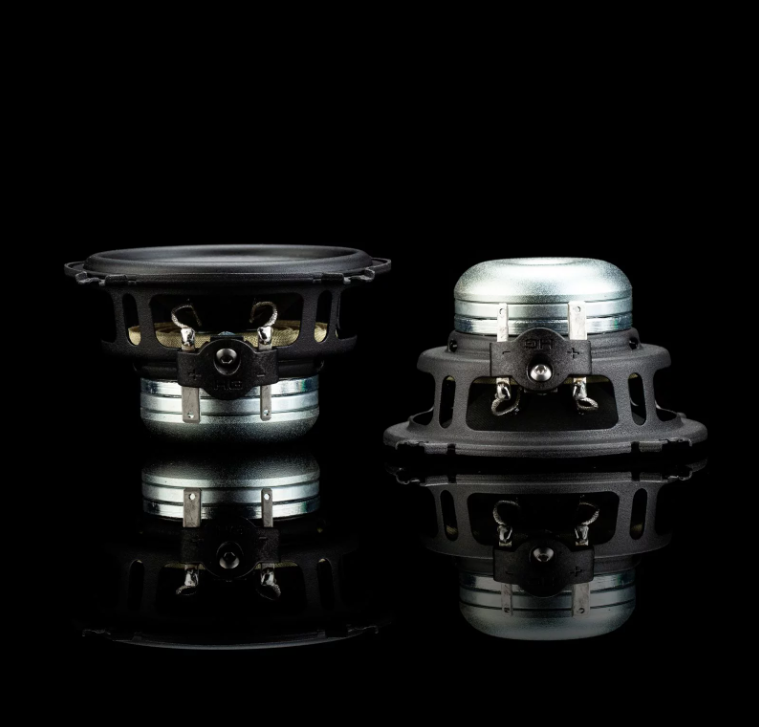

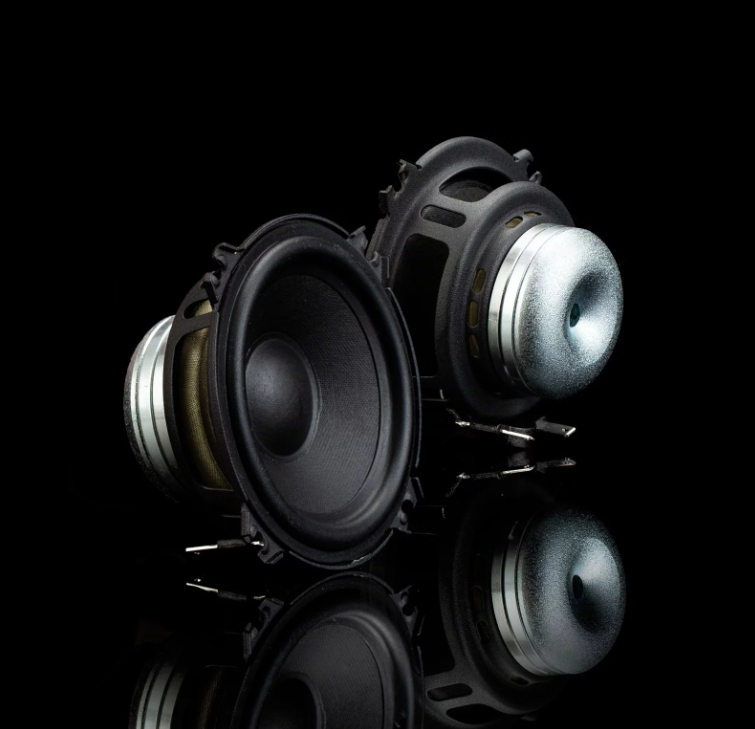

Midrange:
● Size: 80 mm
● Coated paper diaphragm
● Neodymium magnet
● Small mounting depth
● 3 Ohm impedance
● Optional accessories: rings & grilles

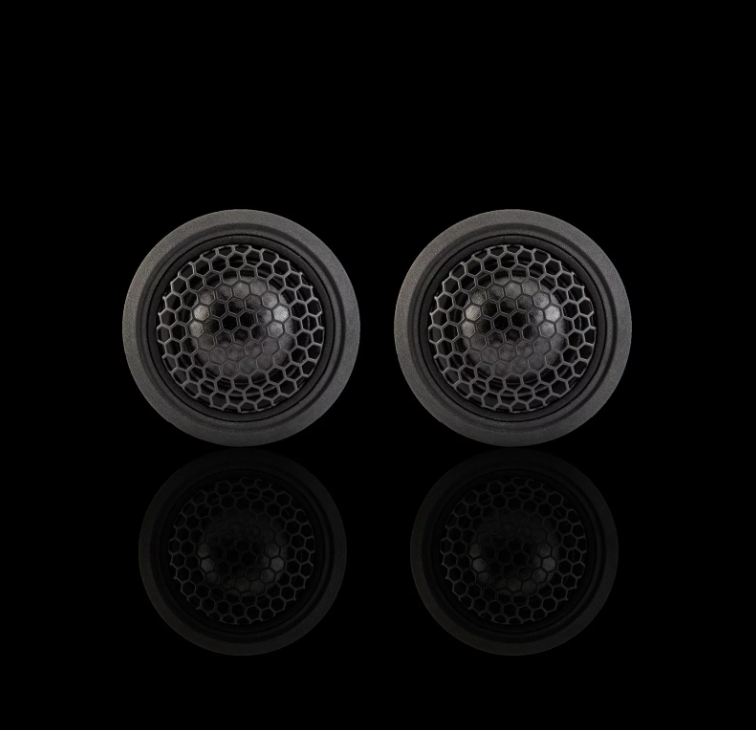

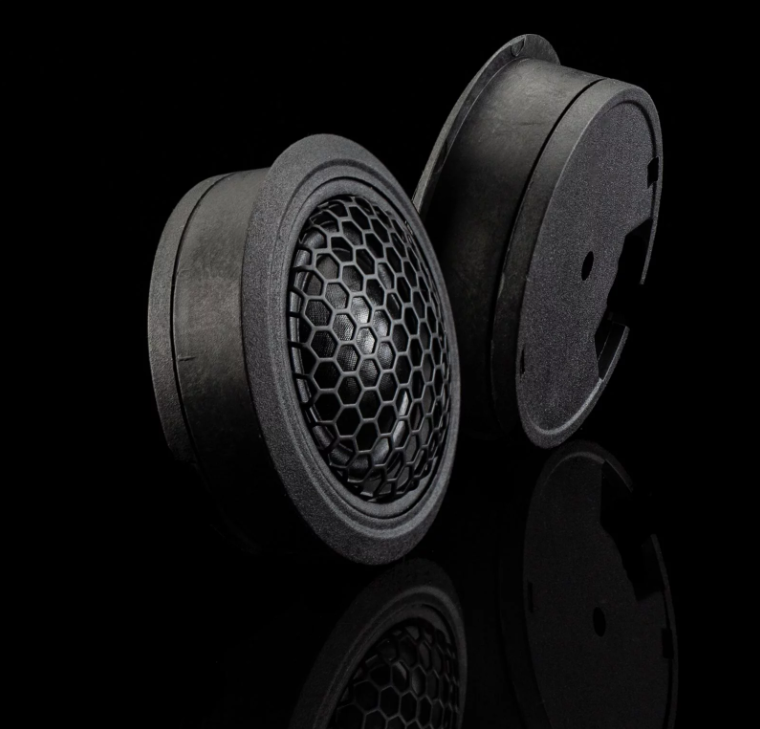

Tweeter:
● Size: 25 mm (voice coil)
● Silk-fabric diaphragm
● Hexagon grid
● 4 Ohm impedance
● Optional accessories: Gladen PODs

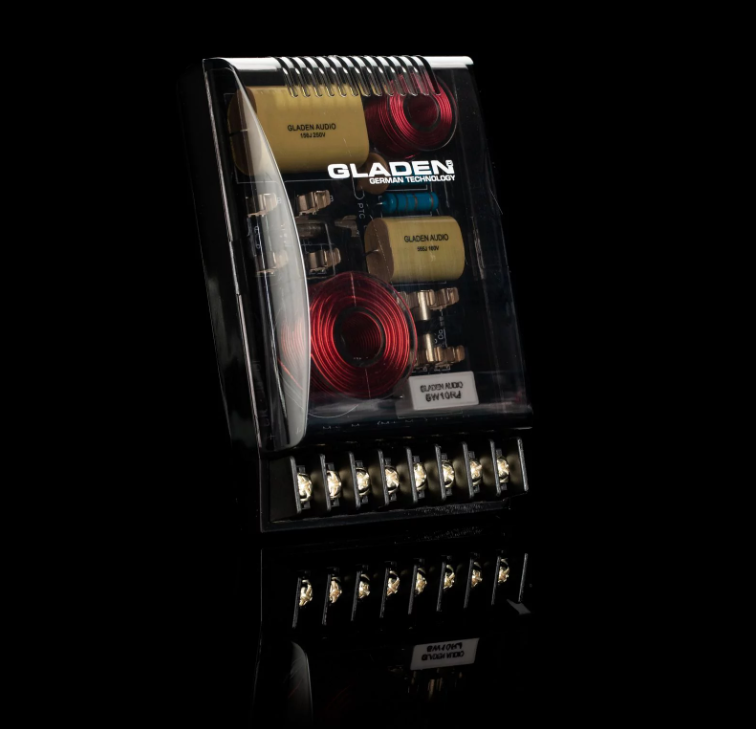

Crossover:
● 2-way crossover for semi-active operation
● Plexiglas housing
● 504 setting options
● Gold-plated screw terminals
● PTC tweeter protection
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust Cap:Silk fabric
TECHNICAL DATA MIDRANGE WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust Cap:Paper
TECHNICAL DATA TWEETER
Cone:Silk fabric
Coil former:Kapton
