MOSCONI ONE 8|10 DSP

新型MOSCONI ONE 8 bbb10 DSP是一款通用的8通道DSP放大器，采用AB类技术。它是扬声器系统与高效低音炮相结合的理想放大器。除了修改光学，这个8通道放大器有一个10通道DSP与最新的软件。因此，新的ONE放大器系列现在也与我们的GUl 3兼容。Xx软件，并为您提供全面的功能。输出侧功放部分保持模拟，以温暖而强大的声音形象破坏听众。当然，所有扬声器输出都是可桥接的。在这里，几乎无限的配置都向用户开放。ONE 8110 DSP的RMS功率为8 x 90瓦，足以满足大型3路解决方案以及完整的多通道概念。对于系统扩展，集成的10通道DSP提供了两个额外的立体声输出。MOSCONI ONE 81 10 DSP配备Molex扬声器连接。

OVERVIEW MOSCONI ONE 8|10 DSP

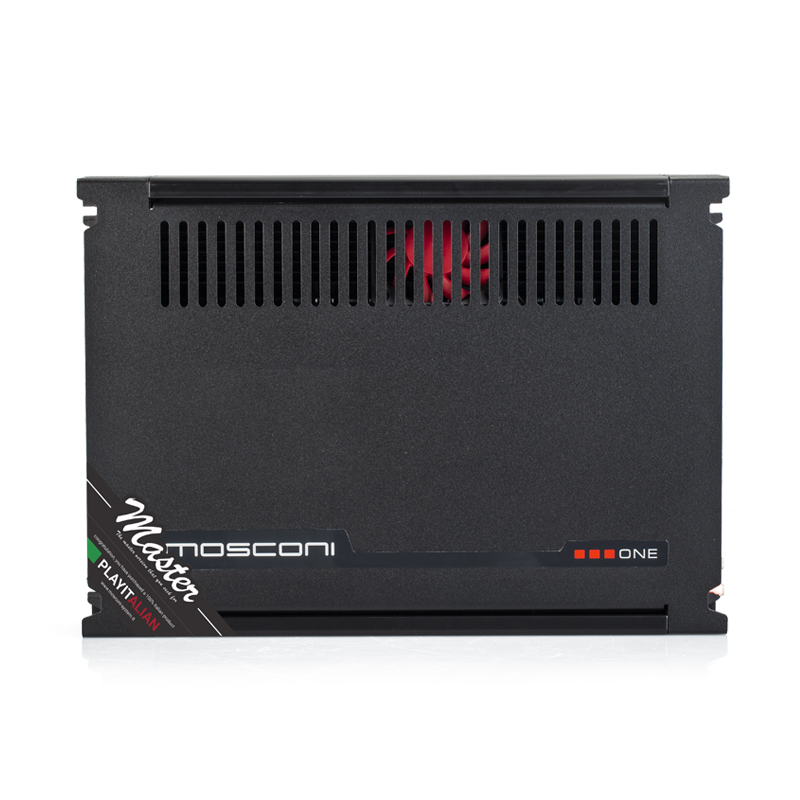

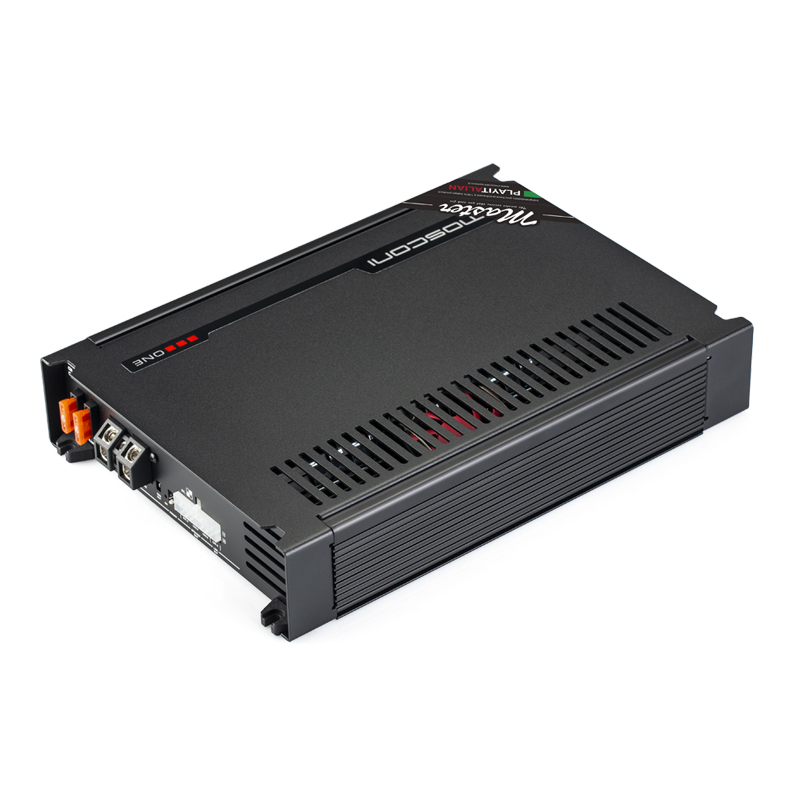

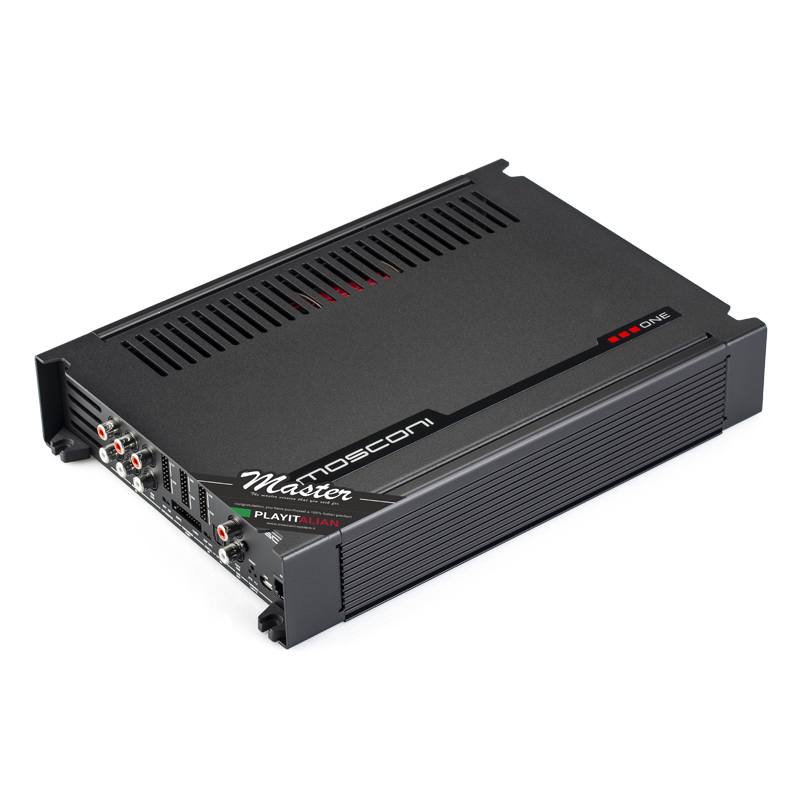

The new MOSCONI ONE 8|10 DSP is a universal 8 channel DSP amplifier in Class AB technology. It is the ideal amplifier for speaker systems in combination with efficient subwoofers.

In addition to the revised optics, this 8-channel amplifier has a 10-channel DSP with the latest software. Thus, the new ONE - Line amplifier series is now also compatible with our GUI 3.xx software and offers you full functionality.

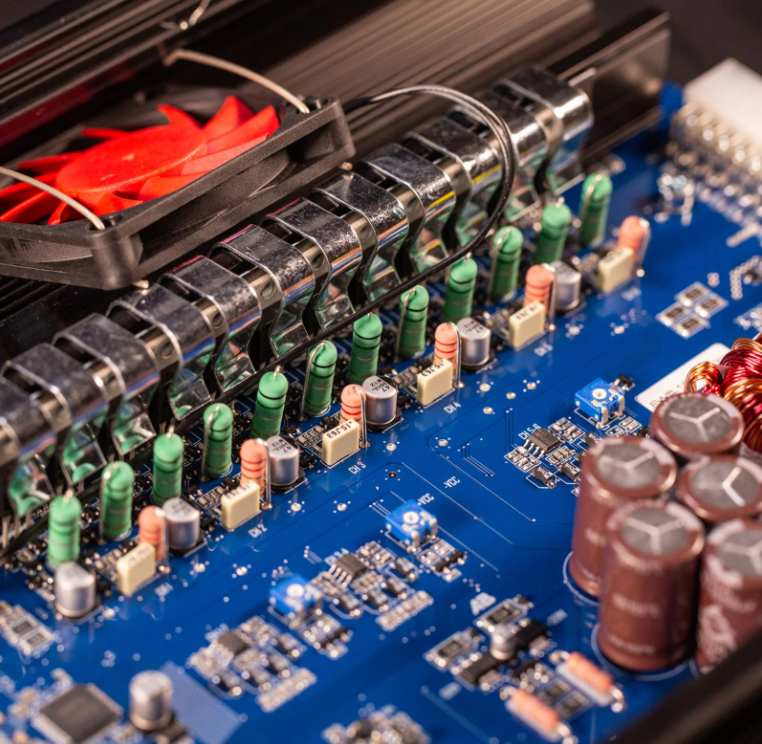

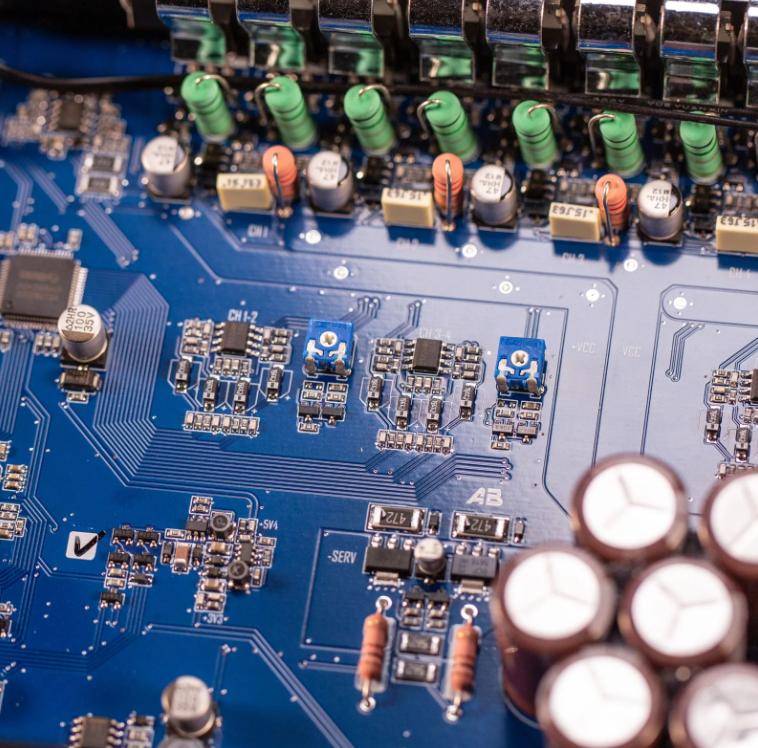

The output side power amp section has remained analog to spoil the listener with a warm and powerful sound image.

Of course, all speaker outputs are bridgeable. Here, almost limitless configurations are open to the user.

With its power of 8 x 90 watts RMS, the ONE 8|10 DSP is sufficiently equipped for large 3-way solutions as well as for complete multi-channel concepts.

For system expansion, the integrated 10-channel DSP offers two additional stereo outputs.

The MOSCONI ONE 8|10 DSP is equipped with a Molex speaker connection. This not only ensures clean cabling, but is also compatible with all plug&play cable sets from our SoundUp program.

·8 Channel Amplifier

·New design

·Analog amplifier technology

·10 channel DSP

·Loudspeaker outputs bridgeable

·8 x 90 watts @ 4 ohms

·8 x 120 watts @ 2 ohms

·4 x 240 Watt @ 4 Ohm (bridged)

·Auto On (High Level)

TECHNICAL DATA MOSCONI ONE 8|10 DSP

OUTPUT POWER:

Output power @ 4 Ohm:8 x 90 Watt

Output power @ 4 Ohm:4 x 85 Watt + 2 x 250 Watt BTL

Output power @ 2 Ohm:8 x 120 Watt

Bridged Output power @ 4 Ohm:4 x 240 Watt

SPECIFICATIONS:

Input sensitivity:0.35 V - 16 V

Fuse:2 x 40 A

Analog DSP Output:2 x 2 Vrms

Digital input:Optical (Toslink)

Remote Control:RTC (optional)

Dimensions:290 x 210 x 55 mm

DOWNLOAD

MANUAL MOSCONI ONE 8|10 DSP
