Resolut SRC(智能遥控)可与基于Resolut DSP平台的产品联合使用，实现运营声音管理。远程控制提供声源选择、配置选择(预设)、单独调整低音炮的声级和整体音量的能力。在可用性方面，Resolut SRC提供了LSD屏幕图像反转功能，增加了安装选项。
Resolut SRC (Smart Remote Control) can be used jointly with products built on Resolut DSP platform for operational sound management.
Remote control provides ability for source selection, selection of configurations (presets), separate adjustment of subwoofer's level and overall volume.
For usability, Resolut SRC provides function of LSD screen picture inverting, enhancing installation options

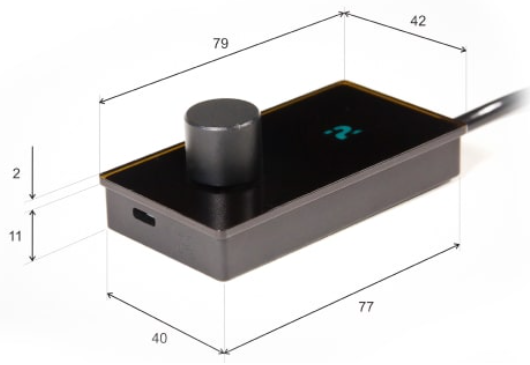

Characteristics
● Device body material: anodized aluminum
● op panel material: tempered glass
● Supply voltage 3.3 V
● Digital switch 30 div/rev
● O-LED display: 128x64
● Connecting to devices: RJ12
● Remote controller firmware update: micro USB
● Weight: 65g

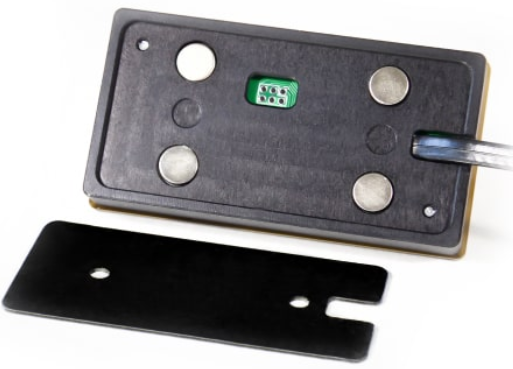

Scope of delivery
● Remote controller Resolut SRC
● Metallic assembly bar
● Cable for remote controller's connection to processor
Downloads
下载点击↓
Instructions for installing and using the Resolut SRC remote control
