产品概述

由于其圆形设计，Gladen ATM 2/4模块可以更换为低音炮机柜的78毫米圆形端子。这款单声道放大器在4欧姆时提供200瓦RMS的低音炮机箱，并通过Molex Mini Fit JR连接器提供电源和输入信号。放大器可用于2欧姆和4欧姆的低音炮底盘。要调整低音炮放大器，可以设置低通滤波器、高/低输入和电平。通过可选的RTC2模块，还可以远程控制放大器。

GLADEN ATM 2 MODULE

● Available for 2 & 4 Ohm subwoofers

● 1 x 200 Watts RMS at 4 Ohm

OVERVIEW GLADEN ATM 2 MODULE

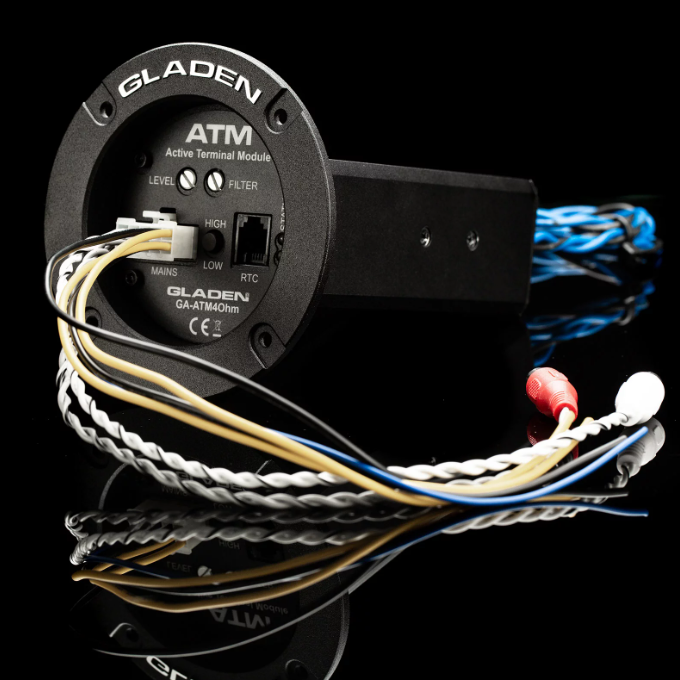

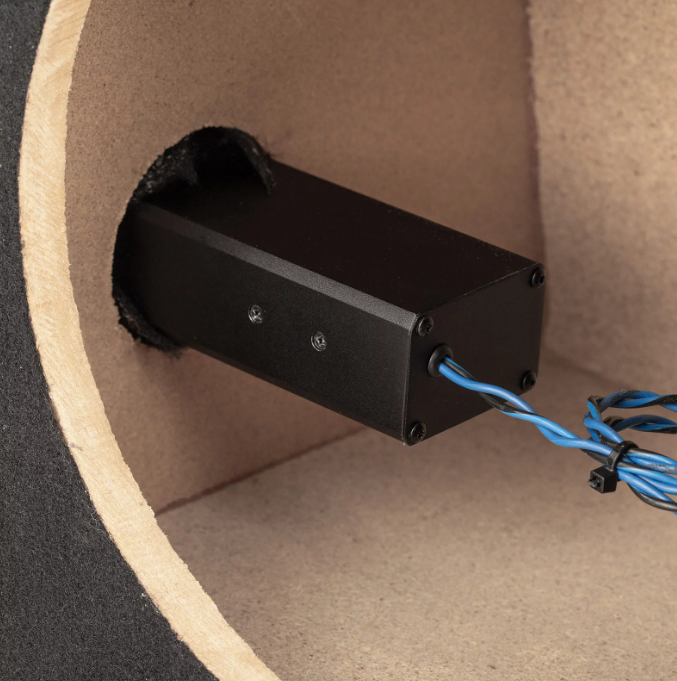

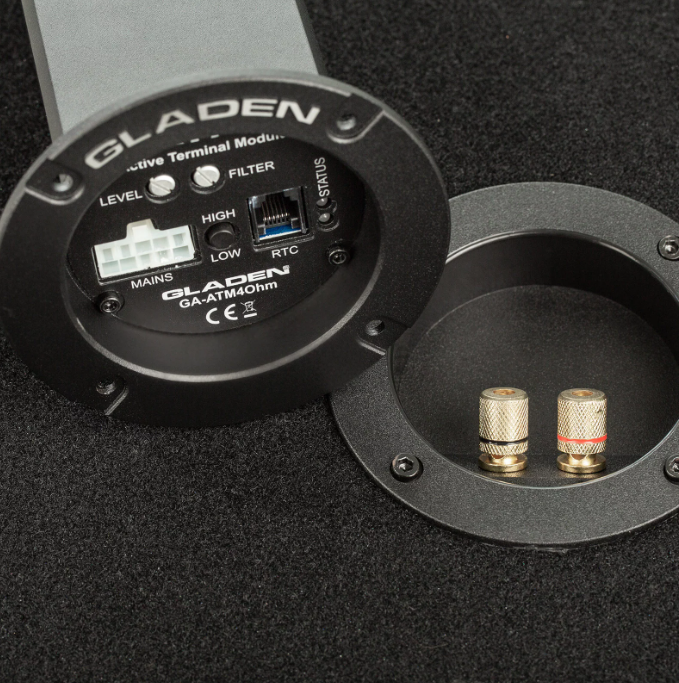

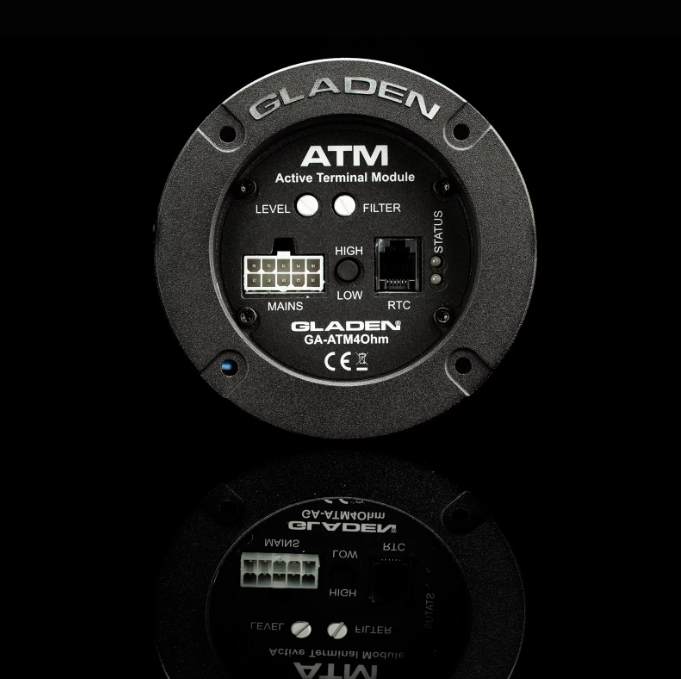

● The Gladen ATM 2/4 module can be exchanged for a 78 mm round terminal of a subwoofer cabinet due to its round design.

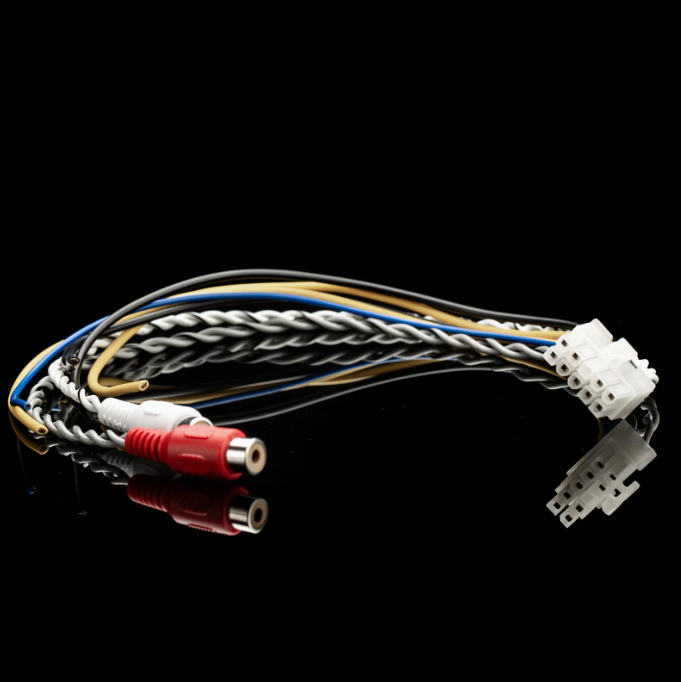

● This mono amplifier supplies the subwoofer chassis with 200 Watts RMS at 4 Ohms and is supplied with power and input signals via a Molex Mini Fit JR connector. The amplifier is available for 2 and 4 Ohm subwoofer chassis.

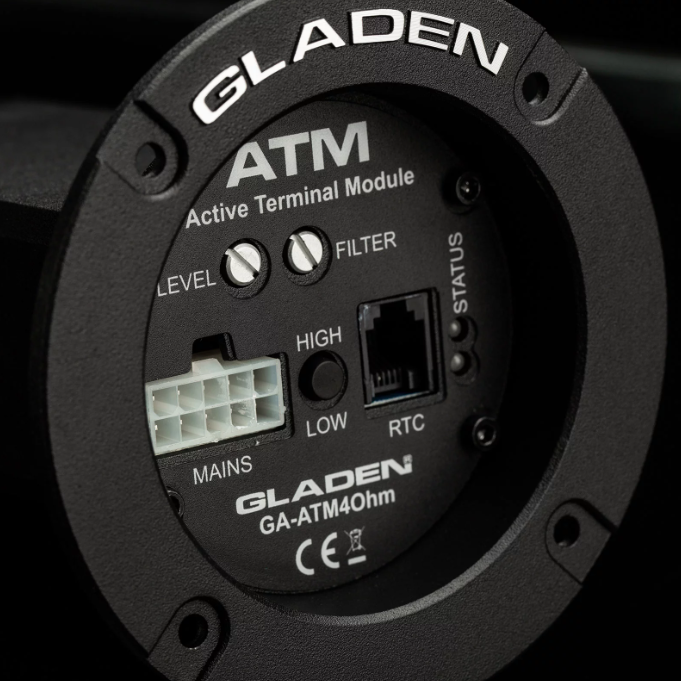

● To adjust the subwoofer amplifier, the low pass filter, a high/low input and the level can be set.

● With the optional RTC2 module, the amplifier can also be controlled remotely.

TECHNICAL DATA GLADEN ATM 2 MODULE

SPECIFICATIONS:

Power:200 Watts @ 14.4 V

Frequency range:25 - 220 Hz

Low pass filter:50 - 120 Hz, 12 dB/Oct

Low-level inputs:Yes

High-level inputs:Yes

Automatic switch-on:Yes

Remote control:Gain (via optional RTC2)
