GLADEN RC 3200C1
● 4 Ohm: 1 x 700 Watts
● 2 Ohm: 1 x 1300 Watts
● 1 Ohm: 1 x 2150 Watts
● 0,5 Ohm: 1 x 3180 Watts
● CLASS-D
OVERVIEW GLADEN RC3200C1
The GLADEN RC 3200c1 is the largest and most powerful amplifier from our company.
With the RC 3200c1 our developers have created a masterly amplifier. It is able to supply almost any woofer with sufficient power.
A highlight is the Clip Limit function. This detects an unclean music signal and automatically reduces the output stage power to protect the subwoofer.
If even more output power is desired, two RC 3200c1 amplifiers can be linked. In this system connection, the output power is doubled and a maximum output power of almost 6400 Watts (1 Ohm) can be retrieved.
● Mono amplifier CLASS-D
● Low pass filter 40 - 220 Hz
● Subsonic filter 20 - 50 Hz
● Bass boost 0 - 12 dB, 30 - 80 Hz (with adjustable Q)
● Low level input up to 5 volts
● Clipping limiter (can be switched off)

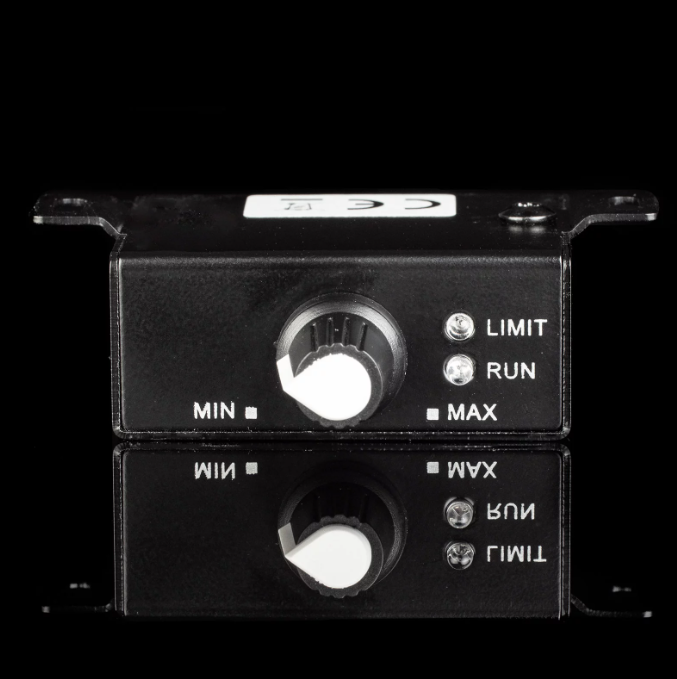

● Level remote control included
● Master-slave capable
● Protection against overheating - overload - short circuit - undervoltage
TECHNICAL DATA GLADEN RC 3200C1
POWER OUTPUT:
RMS Power, 4 Ohm:700 Watts
RMS power, 2 Ohm:1300 Watts
RMS power, 1 Ohm:2150 Watts
RMS power 0,5 Ohm:3180 Watts
SPECIFICATIONS:
Signal-to-noise ratio:> dB
Low Pass Filter:Hz - Hz
Subsonic:20 Hz - 50 Hz
Frequency range:10 Hz - 220 Hz
T.H.D. @ RMS Watt:< 2,0 %
Bass Boost:0 - 12 dB
Input sensitivity:200 mV - 5 V
Dimensions:Length: 585 mm x Width: 150 mm x Height: 50 mm
