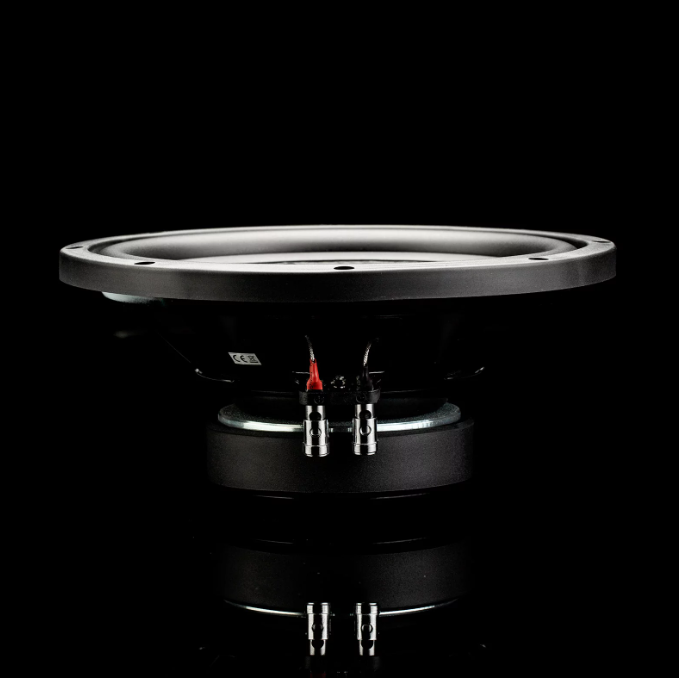

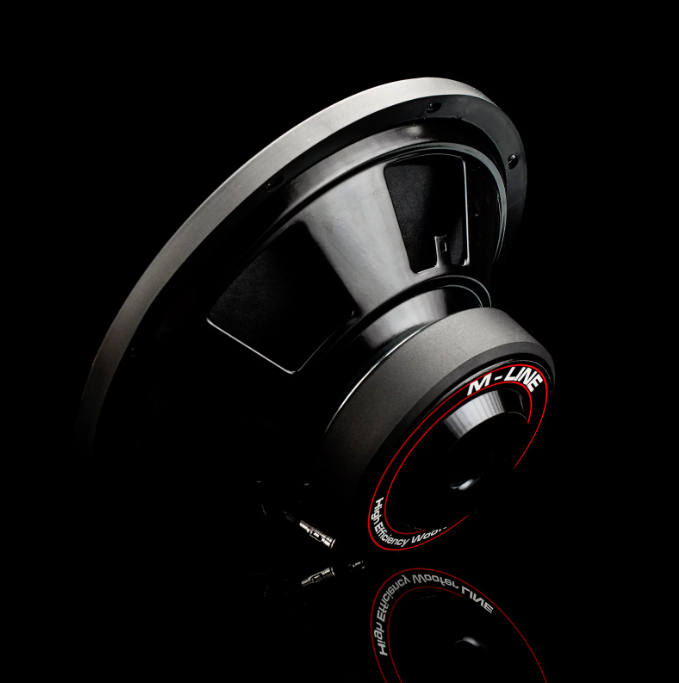

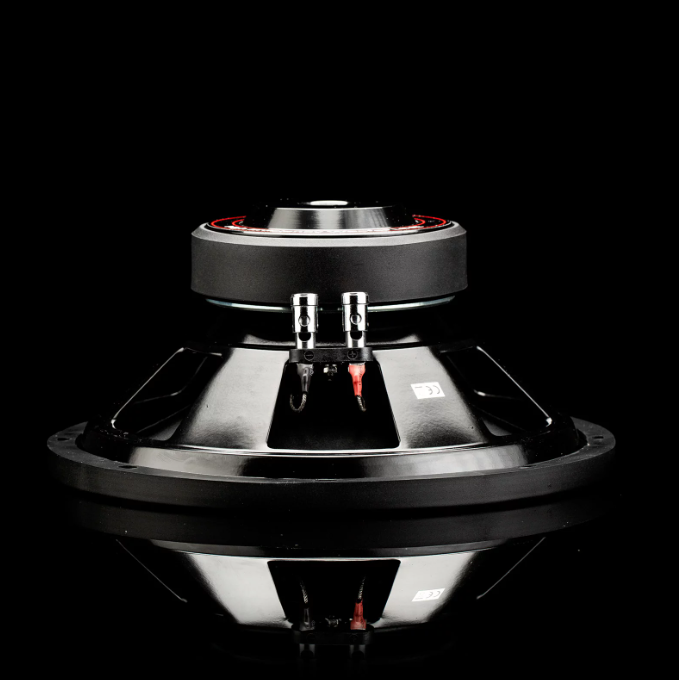

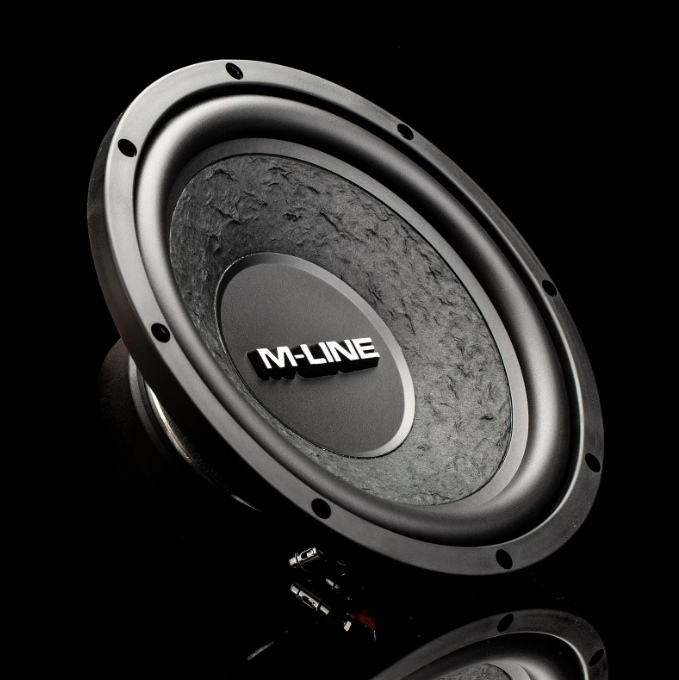

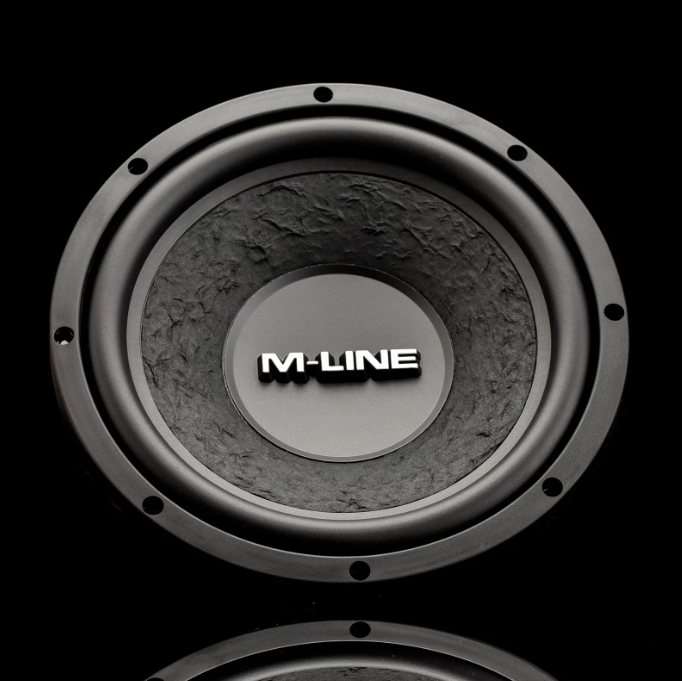

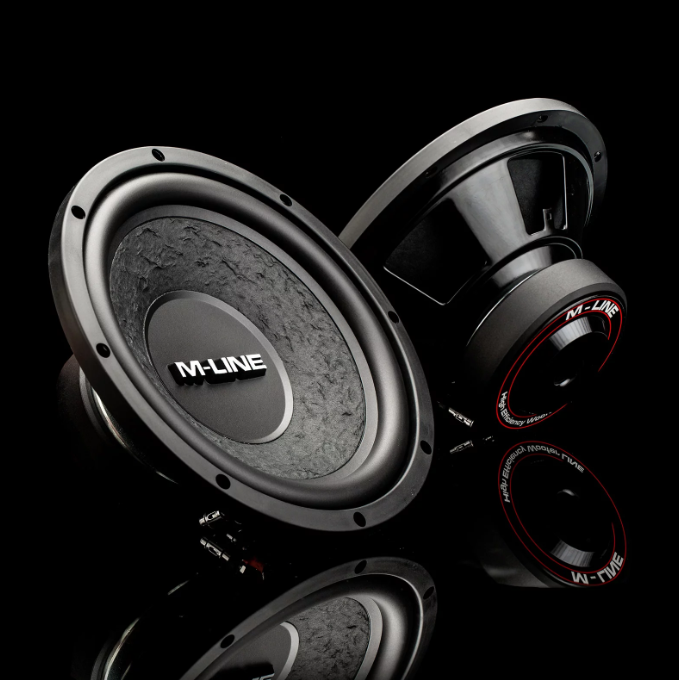

GLADEN M-LINE M10
● 25 cm / 10"
● Power handling: 300 / 200 Watts
● 4 Ohm impedance
● 2" voice coil
OVERVIEW GLADEN M-LINE M10
● Woofer with high efficiency
● Black nomex spider
● Scooped paper cone
● PP dust-cap
● Also available as cabinet subwoofer: GA-M-10VB
TECHNICAL DATA GLADEN M-LINE M10
MATERIAL:
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminium
Basket:Steel
Dust Cap:PP
SPECIFICATIONS:
DC resistance (Rdc):3,2 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):31,3 Hz
Voice coil diameter:2,0 inch
Mechanical Q factor (Qms):5,51
Electrical Q factor (Qes):0,40
Total Q factor (Qts):0,37
Moving mass (Mms):67,2 g
Effective piston area (Sd):366 cm²
Mechanical resistance (Rms):2,3 kg/s
Compliance (Cms):0,34 mm/N
Force factor (BL):10,2 Tm
Equivalent air volume (Vas):63,6 dm³
SPL 2,83V/1m:92,1 dB
