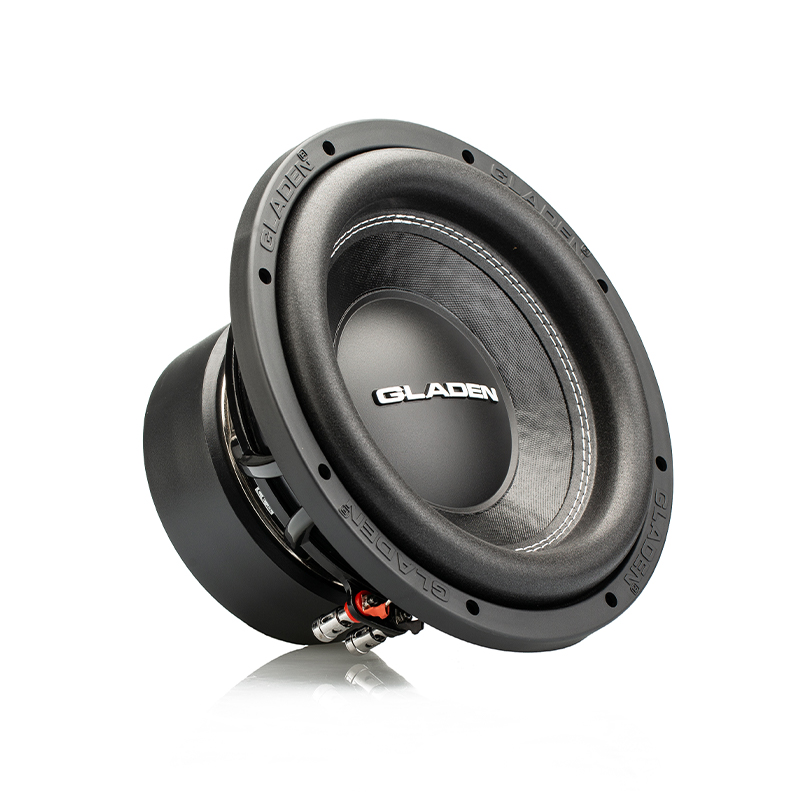

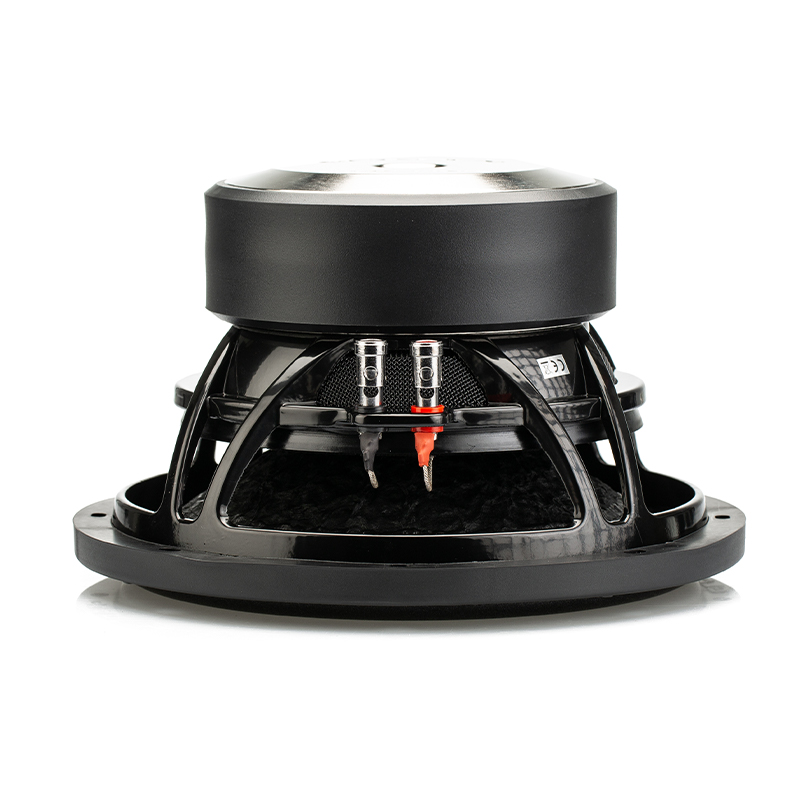

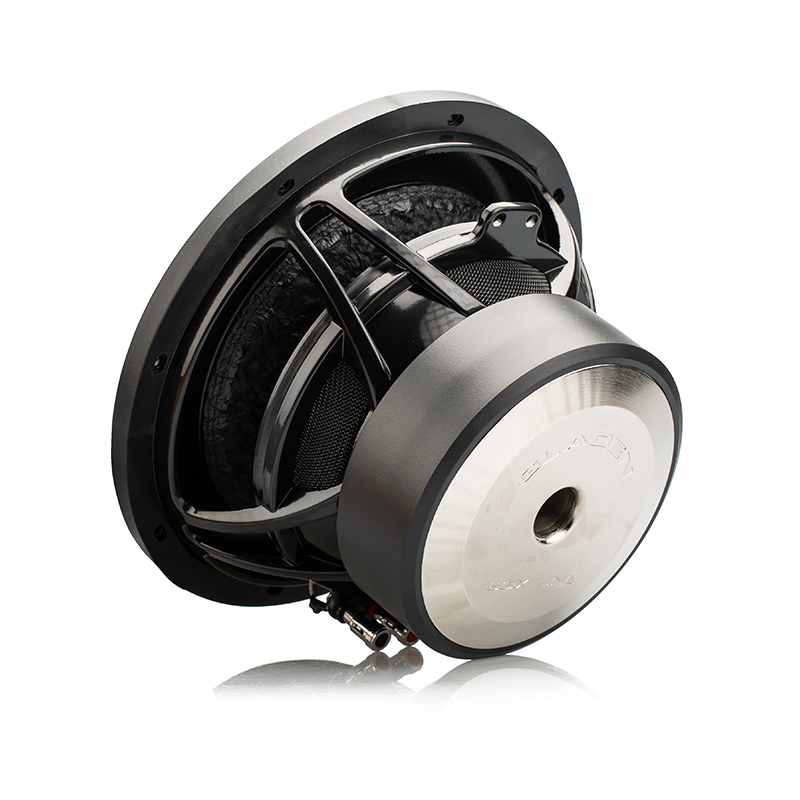

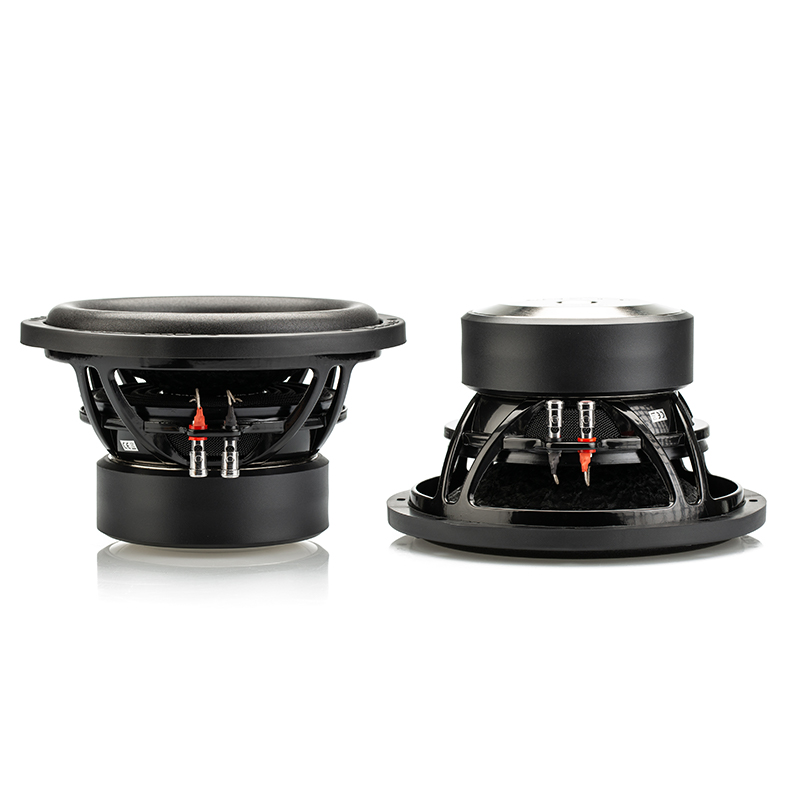

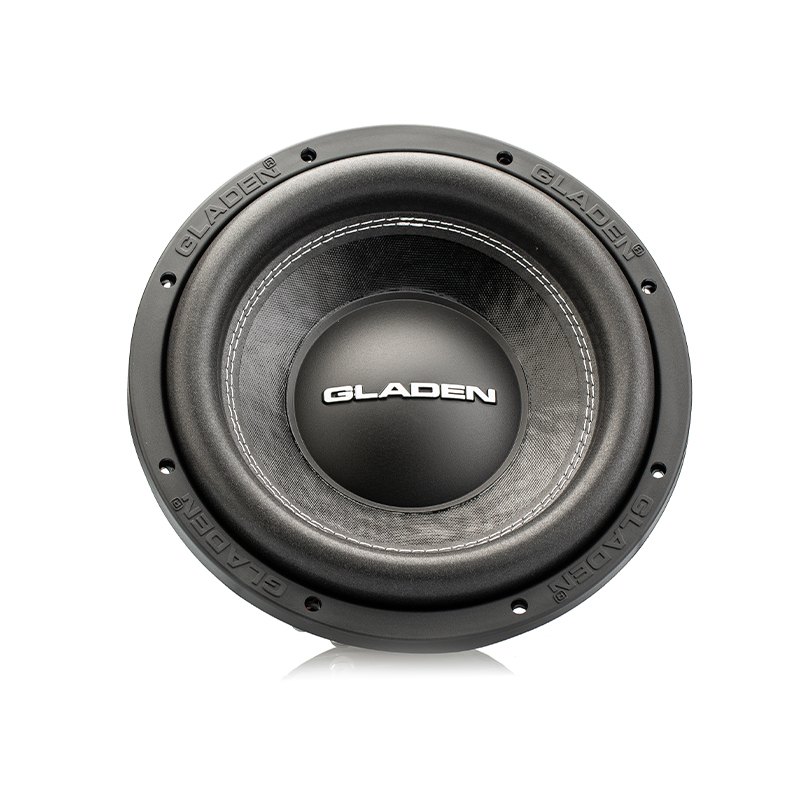

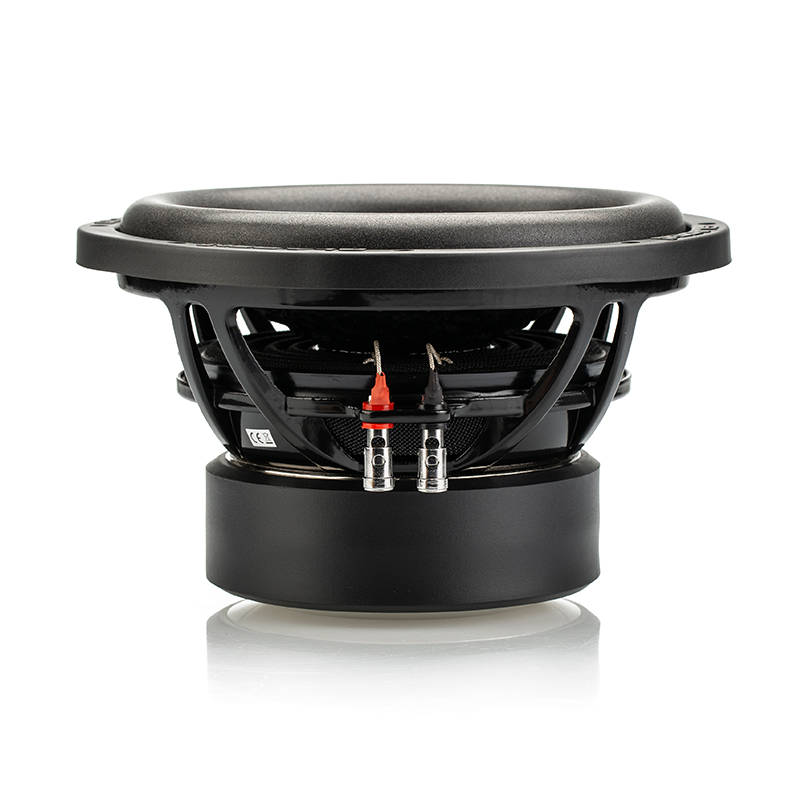

GLADEN SQX 10
● 25 cm / 10"
● Power handling: 525 / 350 Watts
● 4 Ohm impedance
● 2.5" voice coil
OVERVIEW GLADEN SQX 10
● High performance subwoofer
● Cast aluminum basket
● Nomex spider
● Stitched strands
● Pressed paper diaphragm
● For 36 l ventilated
● or 22 l closed
TECHNICAL DATA GLADEN SQX 10
MATERIAL:
Cone:Paper
Spider:Nomex
Surround:Foam
Coil former:Aluminium
Basket:Aluminum
Dust Cap:PP
SPECIFICATIONS:
DC resistance (Rdc):3,2 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):38,8 Hz
Voice coil diameter:2,5 Inch
Mechanical Q factor (Qms):4,99
Electrical Q factor (Qes):0,42
Total Q factor (Qts):0,39
Moving mass (Mms):98,8 g
Effective piston area (Sd):366 cm²
Mechanical resistance (Rms):4,8 kg/s
Compliance (Cms):0,17 mm/N
Force factor (BL):13,5 Tm
Equivalent air volume (Vas):24,5 dm³
SPL 2,83V/1m:90,1 dB
