GLADEN AEROSPACE AERO 10

格莱登航空航天公司的理念是在您的车辆中实现完美的高保真音响。在不妥协、不受成本限制的情况下，终极车载hifi产品在这里得以实现。在Aerospace 10中，卓越的低音表现是通过各种技术创新实现的。其中包括多层复合膜、极其强大的钕磁铁系统和计算机优化的铸篮。低音炮的所有部件都是在德国精心手工制作和组装的。其结果是一种声音体验，甚至超出了最疯狂的想象。

GLADEN AEROSPACE AERO 10

●  25 cm / 10" subwoofer

●  600 / 400 Watts

●  4 Ohm impedance

OVERVIEW GLADEN AEROSPACE AERO 10

Gladen Aerospace is a philosophy that is about the realization of the perfect Hifi sound in your vehicle. Without compromise and cost constraints, ultimate car hifi products have been realized here.

In Aerospace 10, the exceptional bass performance was achieved through a variety of technical innovations. These include a multilayer compound membrane, an extremely powerful neodymium magnet system and a computer-optimized cast basket.

All components of the subwoofer are lovingly handcrafted and assembled in Germany.

The result is a sound experience that exceeds even the wildest imagination.

●  Absolute high end subwoofer

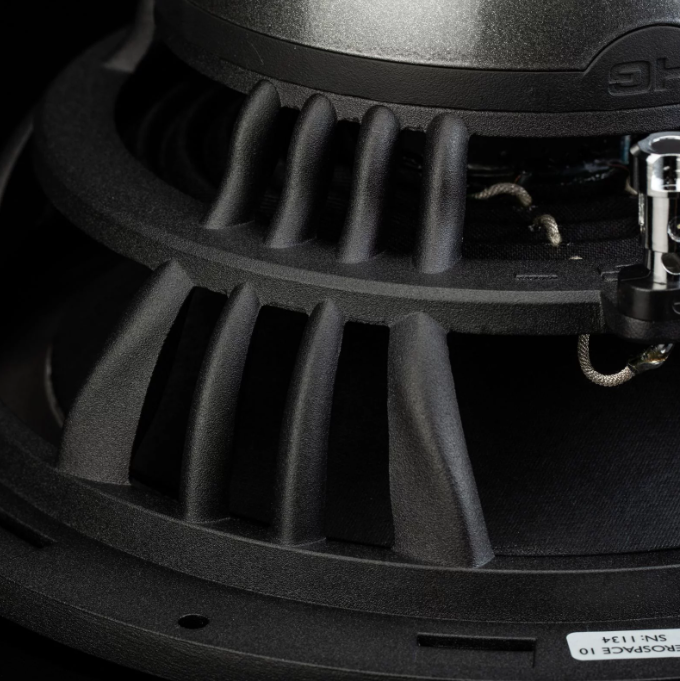

●  Computer optimized cast basket (FME calculation)

●  Neodymium drive with powder-coated AEROSPACE BACK-CAP

●  Paper / form / paper membrane (PFP technology)

●  Nomex spider

●  Hand made in Germany

TECHNICAL DATA GLADEN AEROSPACE AERO 10

MATERIAL:

Dust Cap:Paper

Coil former:CFK

Spider:Nomex

Cone:PFP

Surround:Foam

Basket:Aluminum

SPECIFICATIONS:

Recommended volume:30 liters

Box resonance frequency (FT):46 Hz

X-Max linear (+/-):15 mm

X-Max (+/-):25 mm

DC resistance (Rdc): 3,3 Ω

Nominal impedance (ZN):4 Ω

Resonance frequency (fs):34,54 Hz

Voice coil diameter:65 mm

Mechanical Q factor (Qms):10,8

Electrical Q factor (Qes):0,6

Total Q factor (Qts):0,56

Moving mass (md):104,31 g

Effective piston area (Sm):346 cm2

Mechanical resistance (Rms):2,1 kg/s

Compliance (Cms):0,2

Force factor (BL):11,2 Tm

Equivalent air volume (Vas):34,23 dm3

Efficiency (η):0,23 %

SPL 1W/1m:85,58 dB

SPL 2,83V/1m:89,43 dB

External diameter:279 mm / 10.99 inch

Installation diameter:236 mm / 9,29 inch

Installation depth:147 mm / 5.79 inch

DOWNLOAD

DATASHEET GLADEN AEROSPACE AERO 10 (PDF)
