GLADEN ONE 100.2 MB-SQ

完美是细节的问题。为此，我们对奔驰SQ扬声器的所有部件进行了精心挑选和声学优化。为了满足扬声器对音质的高要求，我们在低音区使用了风干纸膜，在中音区使用了铝膜，在高音底盘使用了轻质丝膜。由此带来的音乐再现上的完美，令人叹为观止。ONE-SQ系列的所有扬声器都确保了辉煌的高点，令人印象深刻的声音再现和基本范围内的最高精度。

奔驰C/E/ GLC (w205及类似车型)专用双向部分主动系统，高通从250hz开始，通过放大器或DSP分离。

GLADEN ONE 100.2 MB-SQ

●  100 mm speaker system

●  2 x 120 Watts **

●  3 Ohm impedance

●  25 mm tweeter

●  Crossover

Perfection is a matter of details. For this reason, we have carefully selected and acoustically optimized all components of the Mercedes SQ speakers. In order to meet the high demands of a sound quality loudspeaker, we use an air-dried paper membrane in the woofer area, an aluminum membrane in the midrange and a light silk membrane in the tweeter chassis. The resulting perfection in music reproduction is breathtaking.

All speakers of the ONE-SQ series ensure brilliant highs, impressive voice reproduction and the highest precision in the fundamental range.

OVERVIEW GLADEN 100.2 MB-SQ

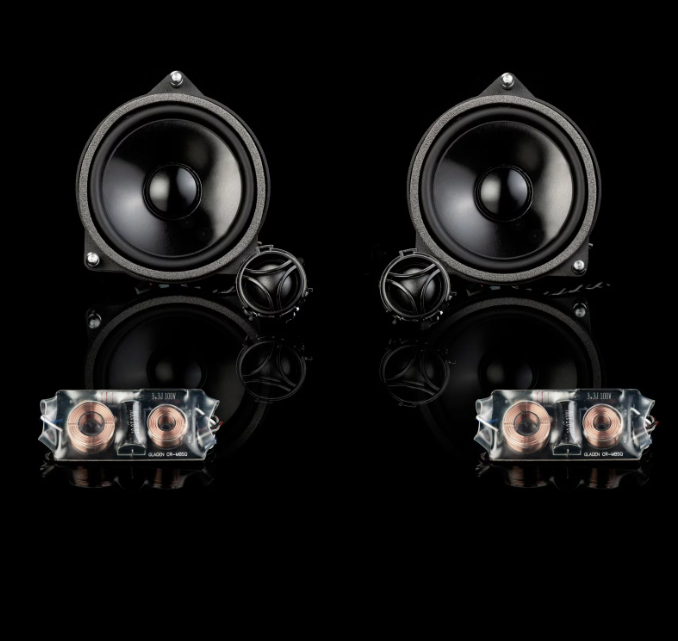

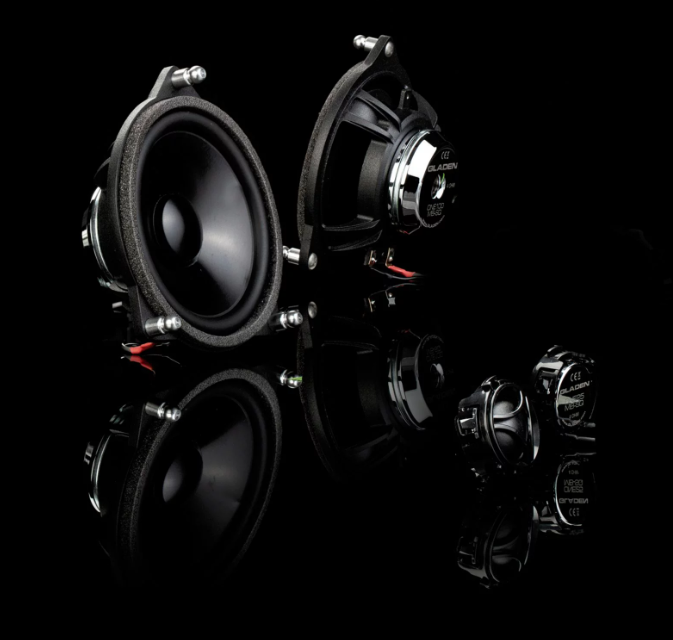

Vehicle specific 2-way partially active system for Mercedes C / E / GLC (W 205 and similar)

High pass from 250 Hz, to be separated via amplifier or DSP

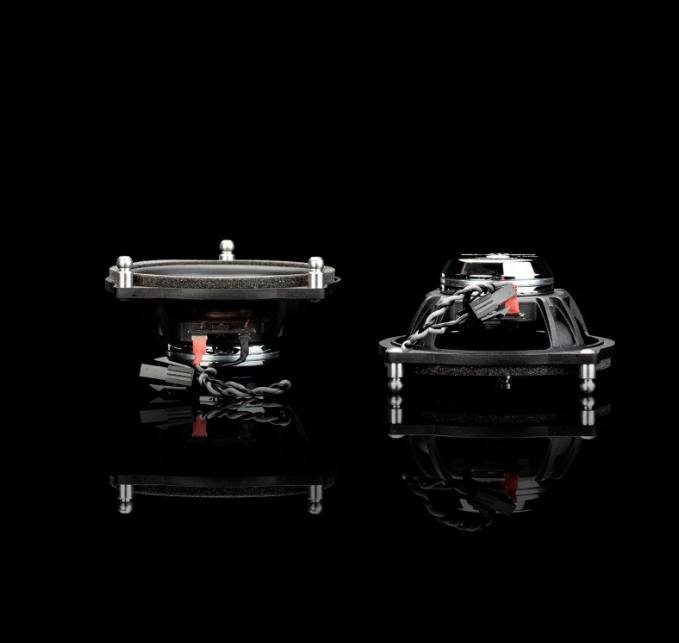

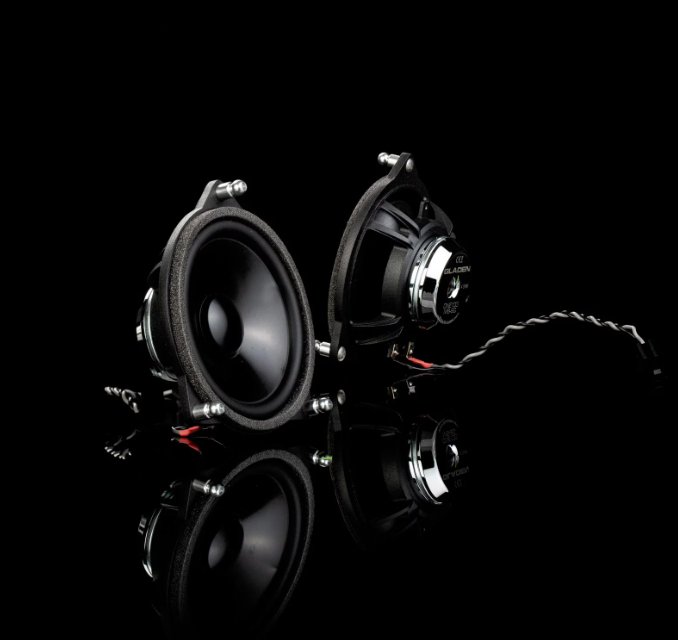

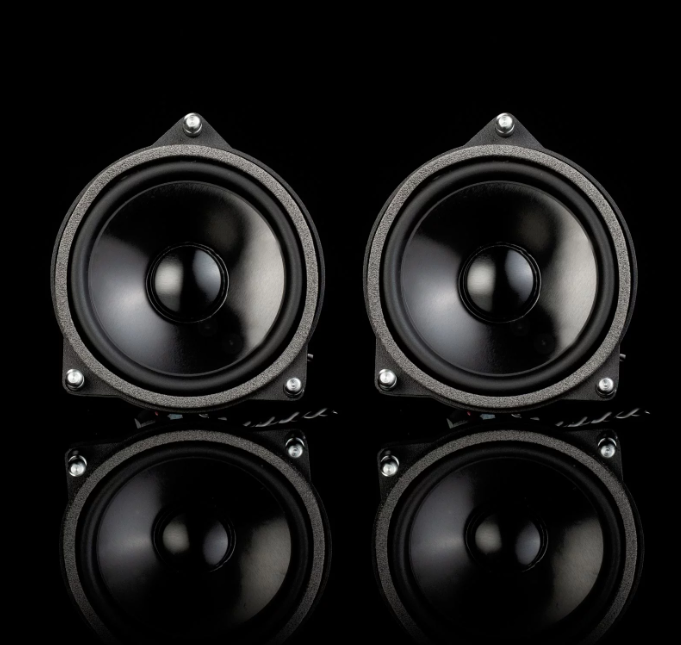

Midrange woofer:

●  100 mm midrange **

●  Neodymium magnet

●  Aluminum cone

●  Cast metal basket

●  Vehicle specific mounting points

●  For semi-active operation in combination with woofer GA-ONE200MB-SQ

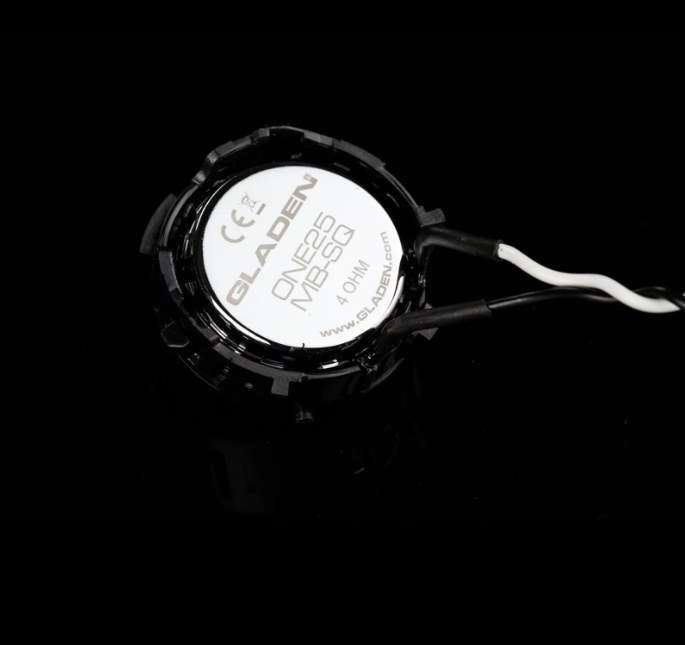

Tweeter:

●  25 mm fabric tweeter

●  Neodymium magnet

●  Vehicle specific mounting (click-lock)

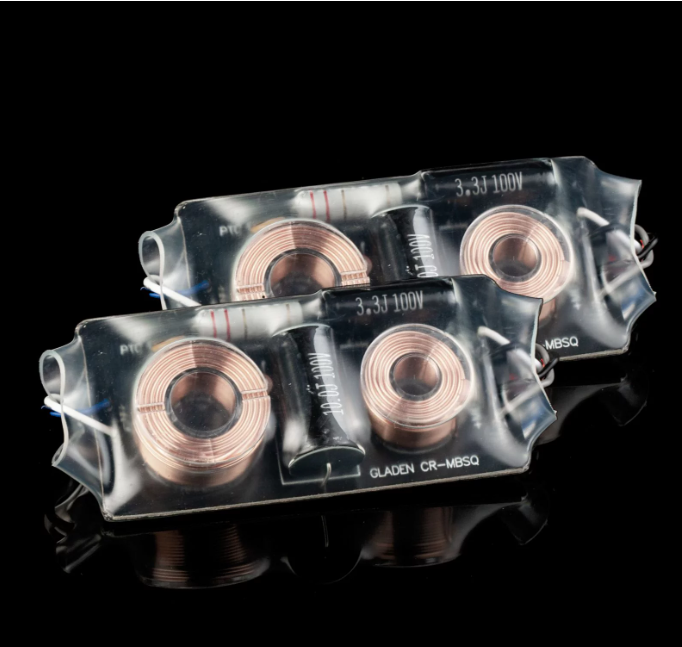

Crossover:

●  Tuned crossover

●  High quality components such as air core coils

●  PTC tweeter protection

●  Plug & Play without damaging the wiring harness in the vehicle

●  Insulation by shrink hose

●  Compact design

** Recommended crossover frequencies for the midrange driver: high pass 250 Hz - 500 Hz , 24 - 12 dB/Oct

MANUAL GLADEN 100.2 MB-SQ (PDF)
