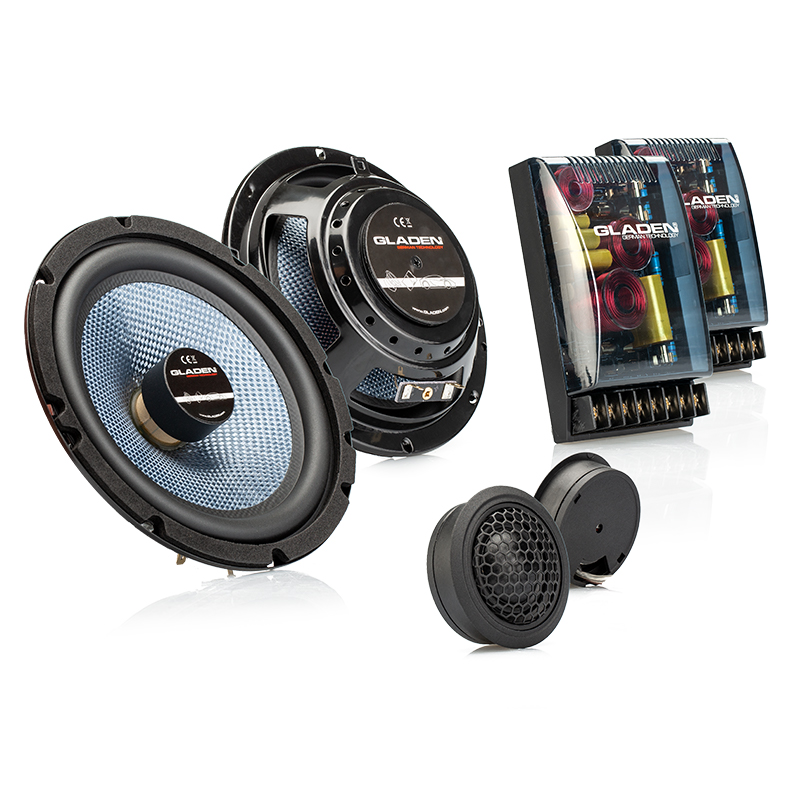

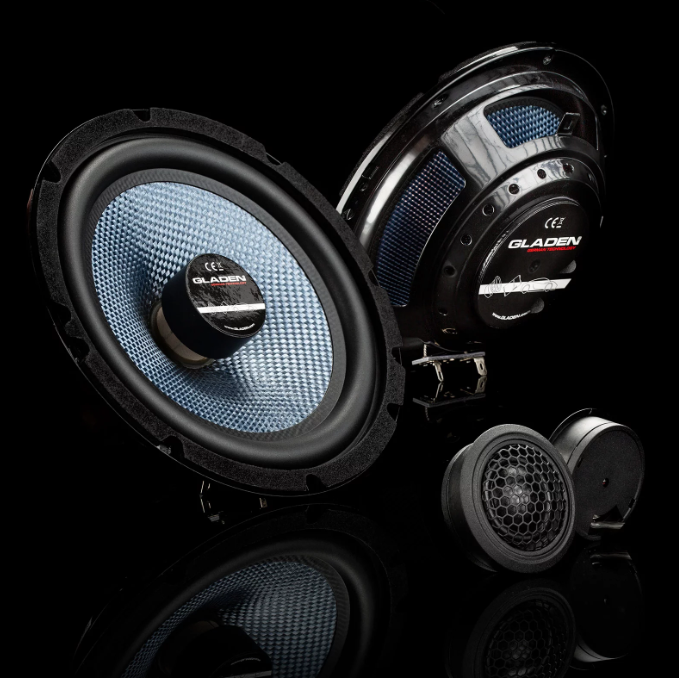

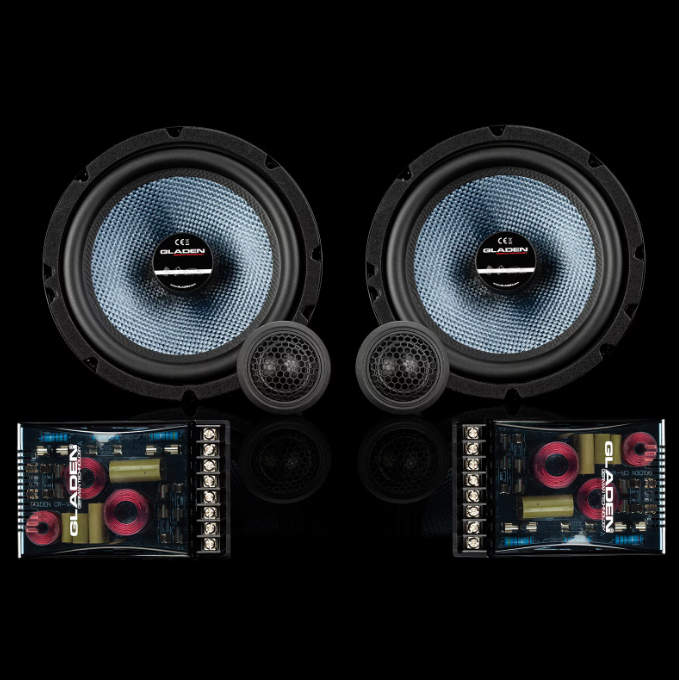

OVERVIEW GLADEN SQX 165 SLIM
165 mm sound quality system with low installation depth. Therefore, optimally suited for special solutions or vehicles with small space requirements behind the woofer.
For the installation of the tweeter in original mounting locations, the plastic housing can be disassembled. For optimal alignment of the tweeter, the optional Gladen PODs can be used.

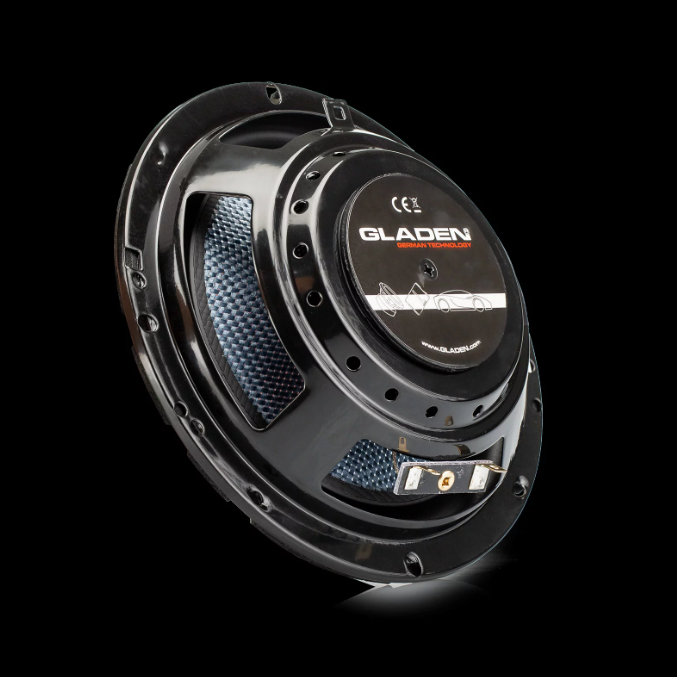

Woofer:
● Size: 165 mm
● Fabric membrane
● Steel sheet basket
● Nomex centering spider
● Neodymium magnet
● 3 Ohm impedance

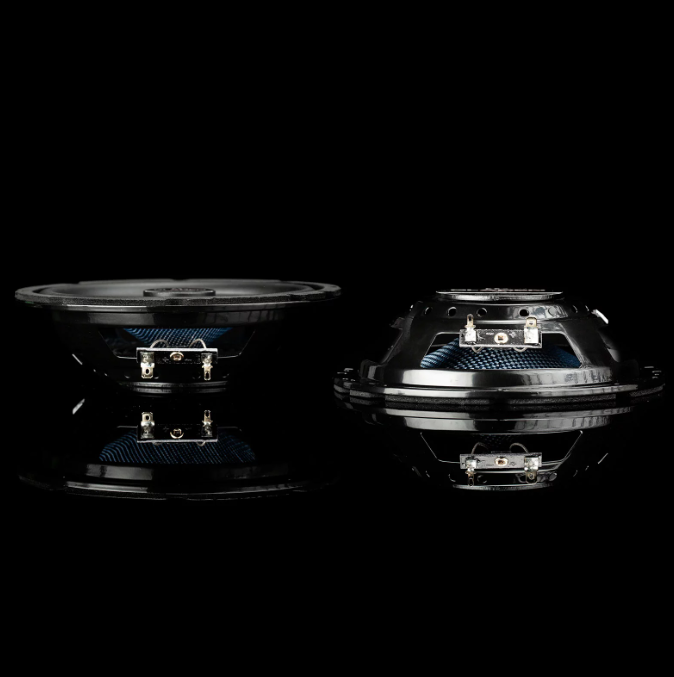

● Low installation depth (40 mm)
Tweeter:
● Size: 25 mm (voice coil)
● Silk-fabric diaphragm
● Hexagon grid
● 4 Ohm impedance
● Optional accessories: Gladen PODs

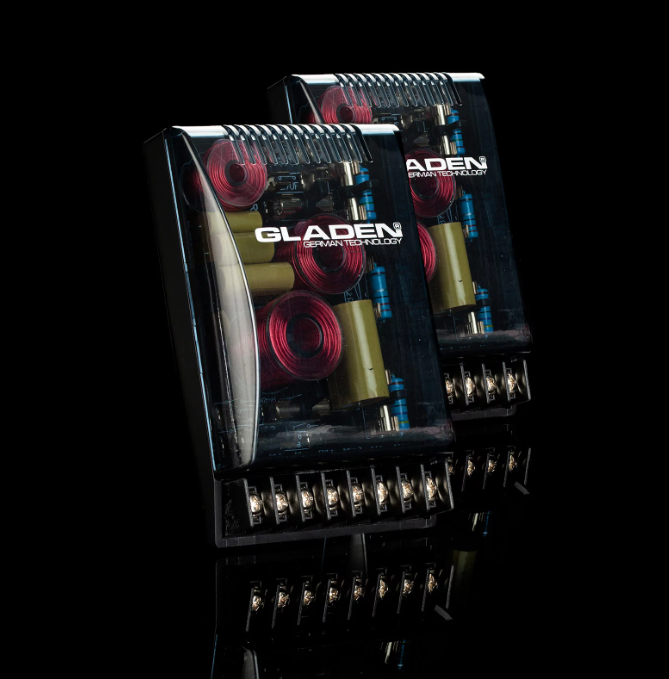

Crossover network:
● Plexiglas housing
● 504 setting options
● gold-plated screw terminal
● PTC tweeter protection
TECHNICAL DATA WOOFER
Cone:Fiberglass
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Drive:Internal magnetic system
TECHNICAL DATA TWEETER
Cone:Silk fabric
Coil former:Kapton
