OVERVIEW
GLADEN ZERO PRO 165.2 PP

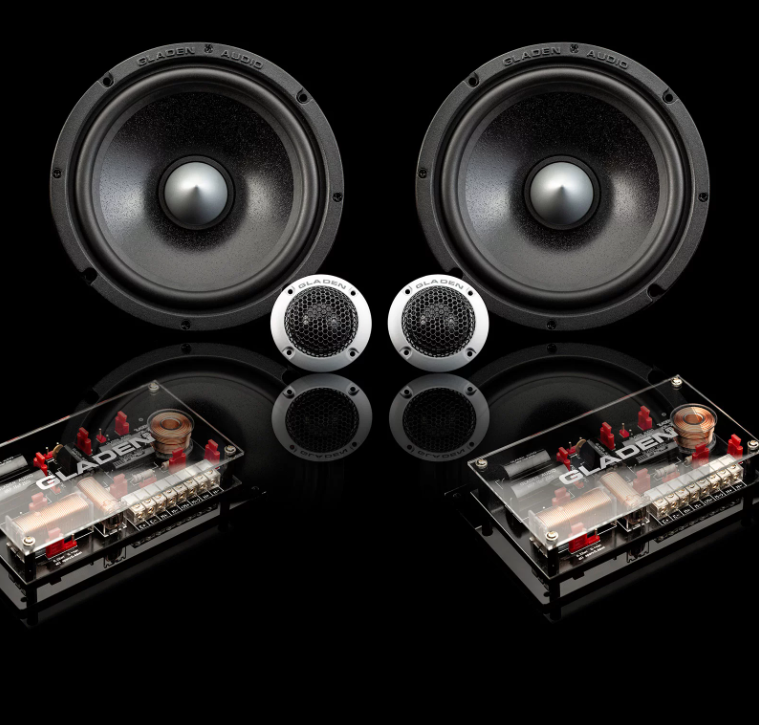

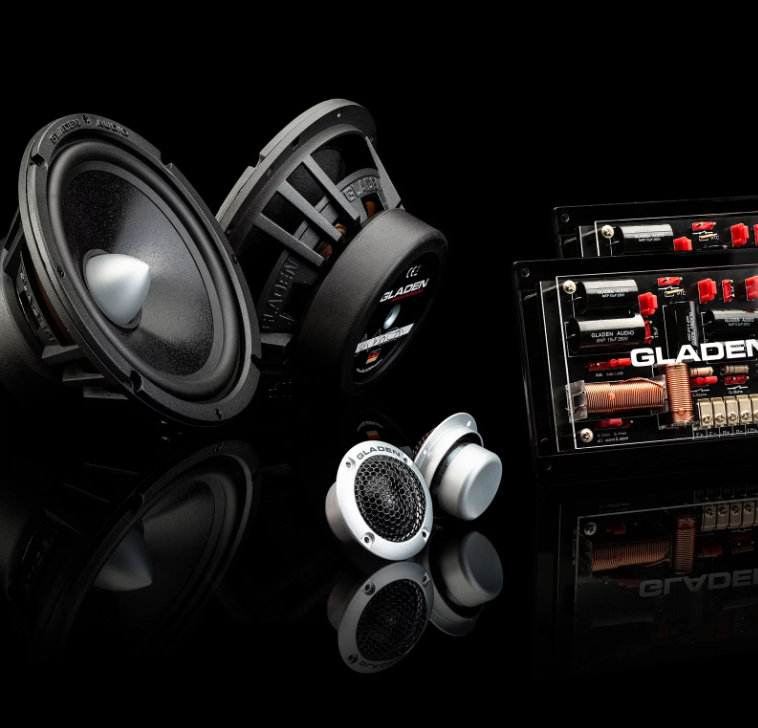

High-end system consisting of a 165 mm woofer and a 28 mm dome tweeter.

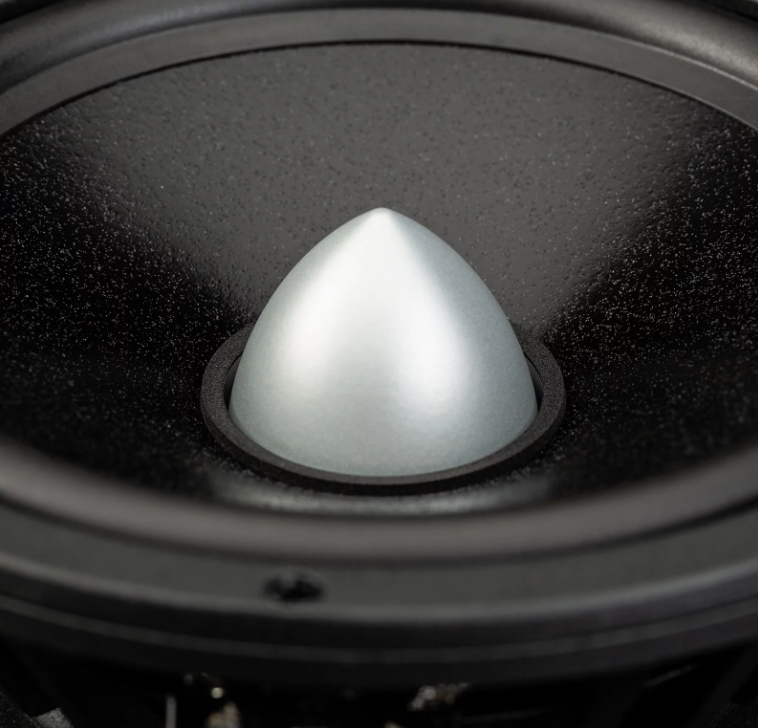

The woofer has a phase plug in the center. Acoustically, the phase plug ensures that the sound emitted by the cone is not reflected at the pole core. In this case, phase shifting can lead to cancellations that are noticeable as a dip in the midrange.
A passive crossover is included with the speaker system (not with AC active version). The complete Gladen Zero Pro speaker system is designed and built in Germany.
For better alignment or mounting of the tweeter the optional Gladen PODs can be used.

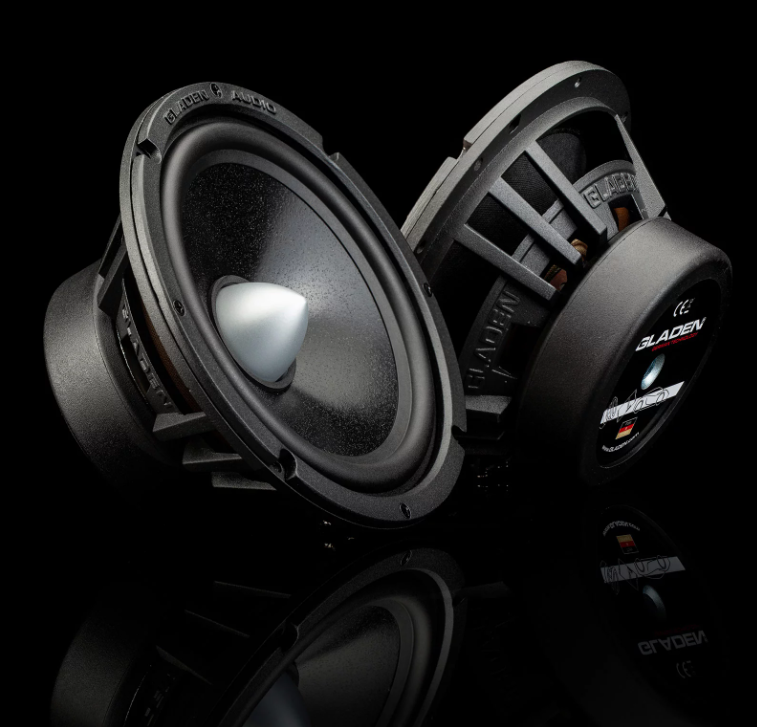

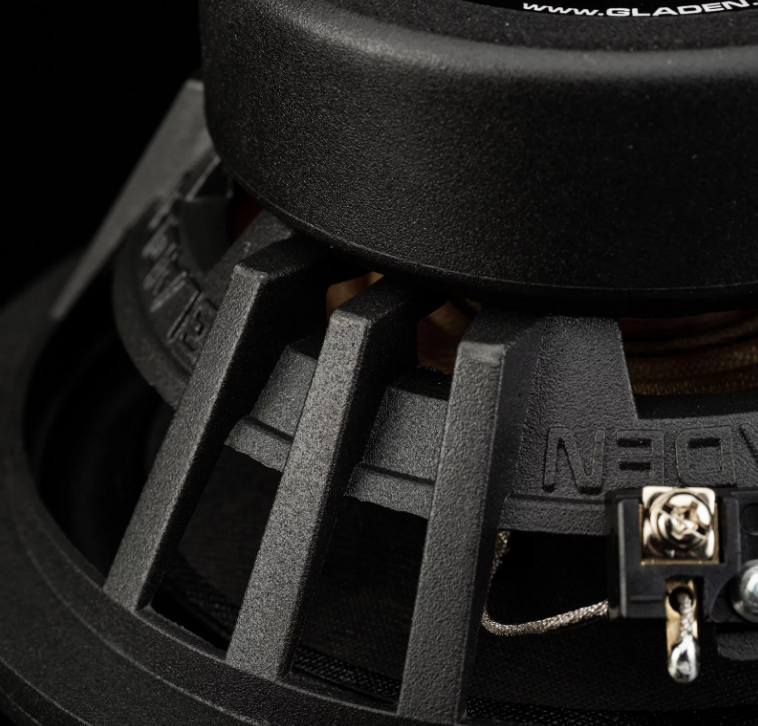

Woofer:
● Size: 165 mm
● Sand-coated paper membrane
● Aluminum basket
● Nomex spider
● Phase-plug
● 38 mm voice coil
● 3 Ohms impedance

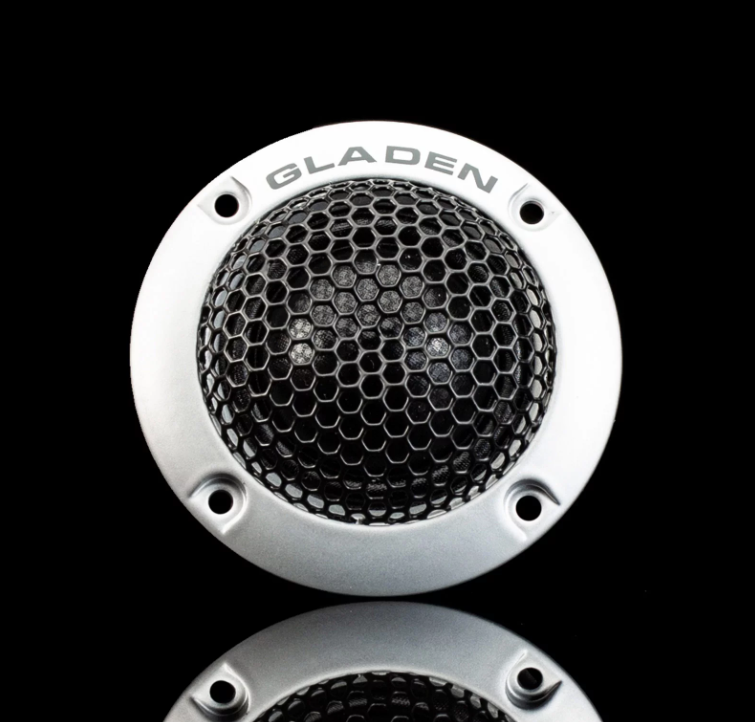

Tweeter:
● Size: 28 mm (voice coil)
● Silk fabric membrane
● Aluminum housing
● Hexagon-grille
● 4 Ohms impedance
● Optional accessories: Gladen PODs

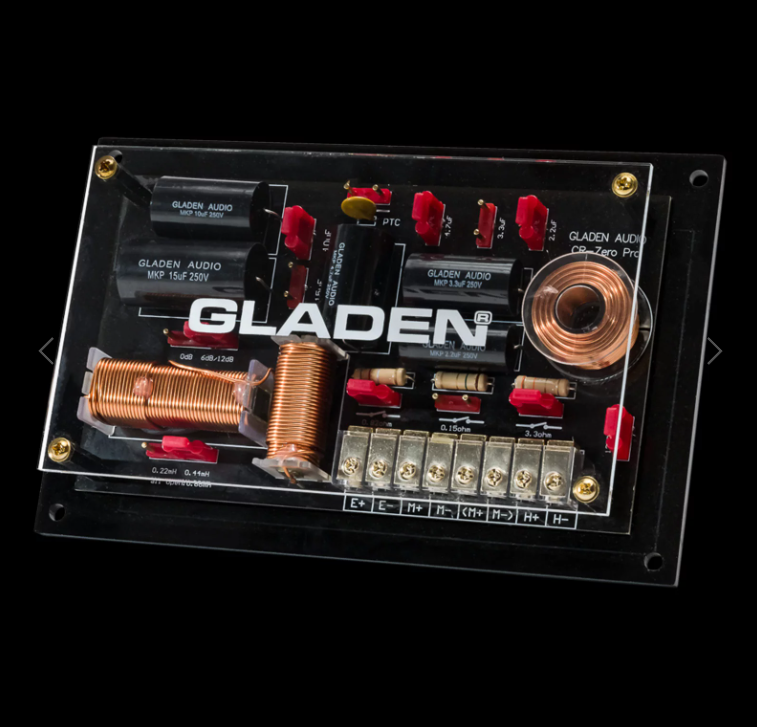

Crossover, not included for active version (AC):
● Plexiglas housing
● Over 1.000 setting options
● Solid and gold-plated screw terminals
● PTC tweeter protection
● Gold-plated screw terminals
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Aluminum
Phase Plug:Aluminum
TECHNICAL DATA TWEETER
Cone:Silk
Coil former:Kapton
DOWNLOAD
DATASHEET GLADEN ZERO PRO 165.2 PP (PDF)
