OVERVIEW
GLADEN ZERO PRO 165.2 DC

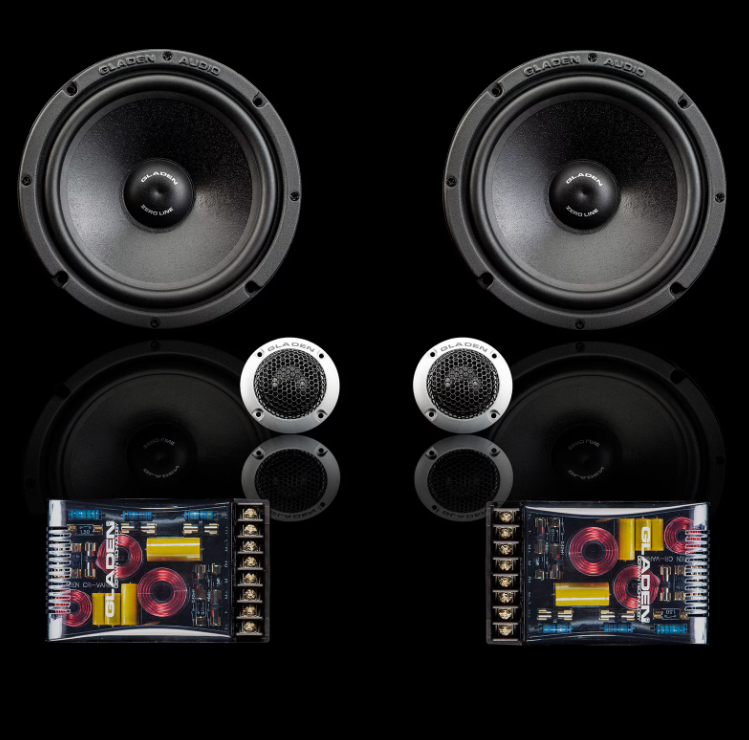

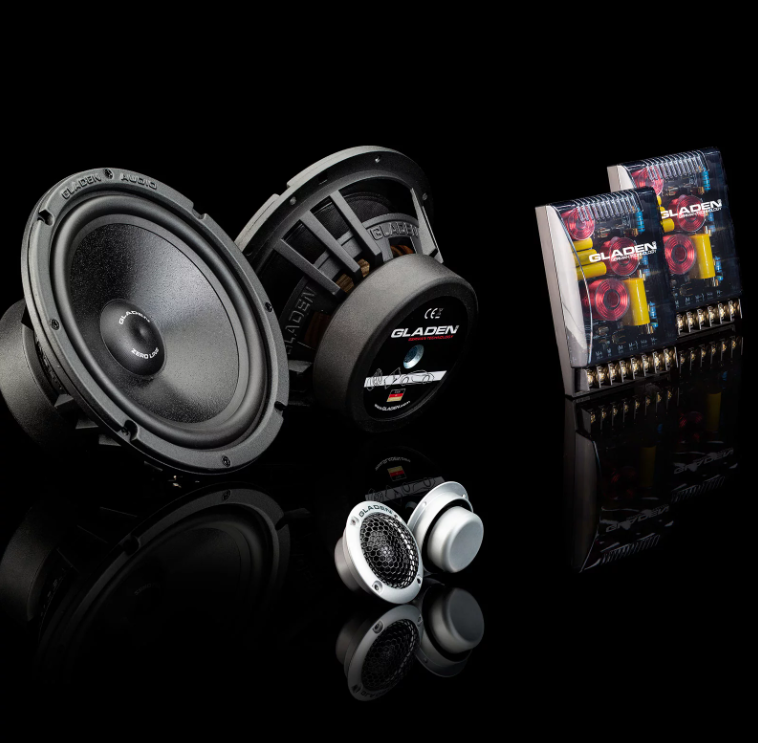

High-end system consisting of a 165 mm woofer and a 25 mm dome tweeter.
The speaker system comes with a passive crossover (not with AC active version). The complete Zero Pro speaker system is designed and built in Germany.
For better alignment or mounting of the tweeter the optional Gladen PODs can be used.

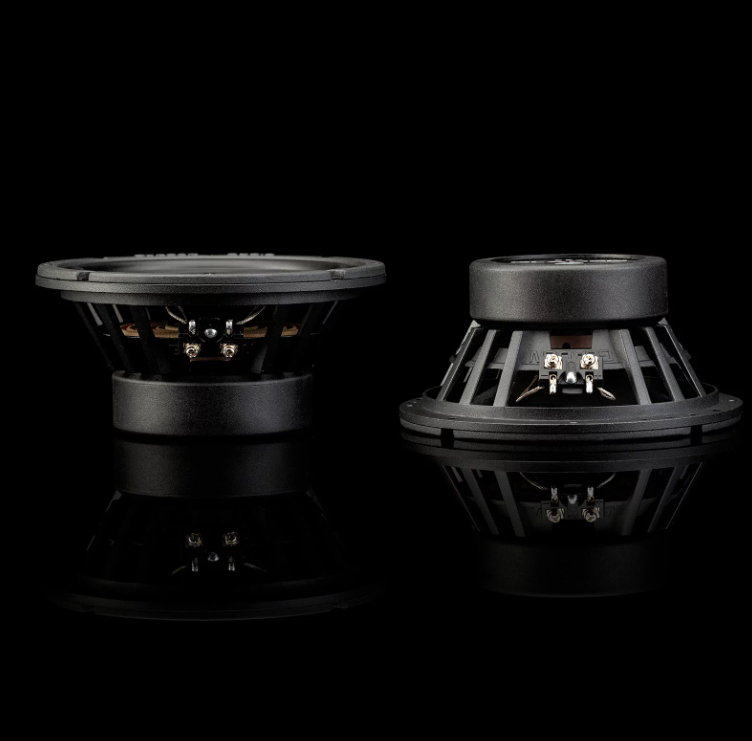

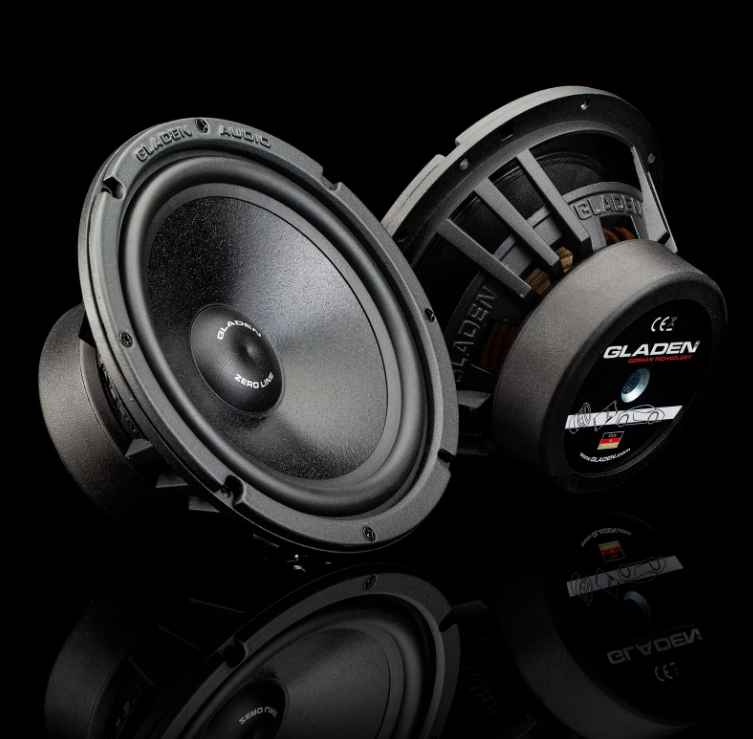

Woofer:
● Size: 165 mm
● Sand-coated paper membrane
● Aluminum basket
● Nomex spider
● 38 mm voice coil
● 3 Ohms impedance

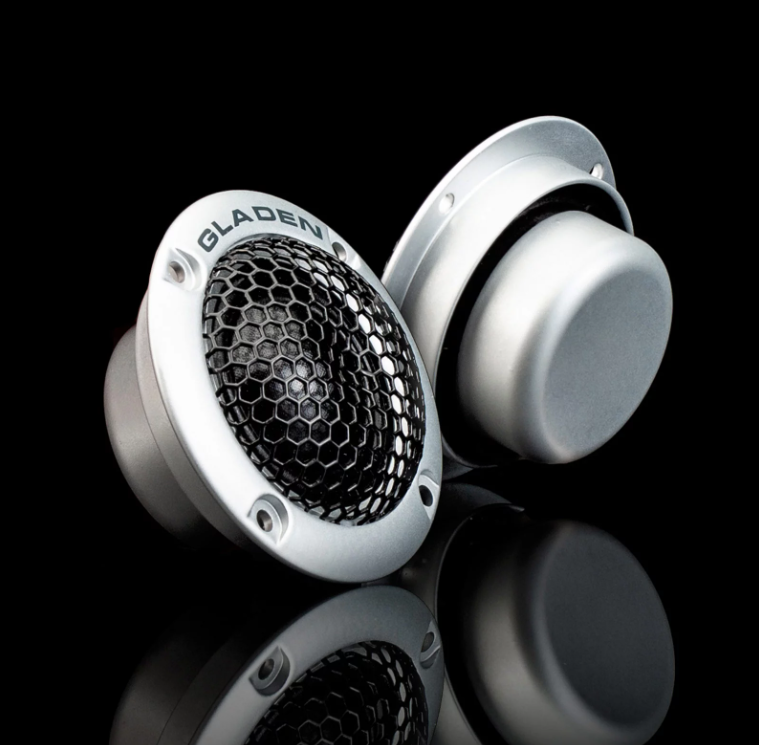

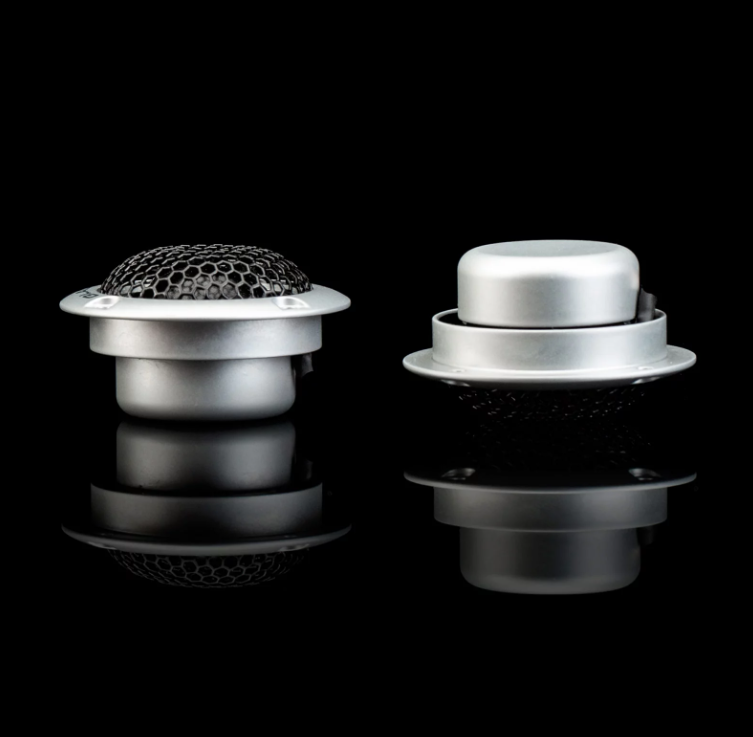

Tweeter:
● Size: 25 mm (Voice Coil)
● Silk Fabric Membrane
● Aluminum Housing
● Hexagon-Grille
● 4 Ohm Impedance
● Optional Accessories: Gladen PODs

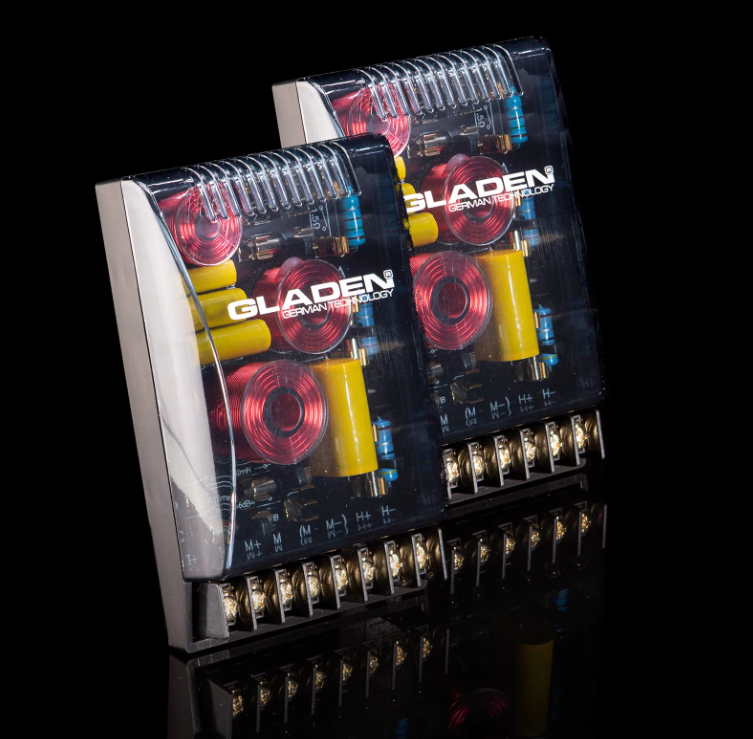

Crossover, not included for active version (AC):
● Plexiglas housing
● 504 setting options
● Gold-plated screw terminals
● PTC tweeter protection
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Aluminum
Phase Plug:Silk
TECHNICAL DATE TWEETER
Cone:Silk
Coil Former:Kapton
DOWNLOAD
DATASHEET GALDEN ZERO PRO 165.2 DC (PDF)
DATASHEET GALDEN ZERO PRO 165.2 DC AKTIV (PDF)
TEST CAR HIFI GLADEN ZERO PRO 165.2 DC (PDF)
