高端系统由一个165毫米低音扬声器，一个80毫米中音扬声器和一个20毫米圆顶高音组成(总是成对的)。2路交叉器允许在至少4个放大器通道上进行半主动操作。(交流版本不包括交叉)。完整的Zero Pro扬声器系统是在德国设计和制造的。为了更好地对准或安装高音喇叭，可以使用可选的Gladen PODs。
OVERVIEW
GLADEN ZERO PRO 165.3

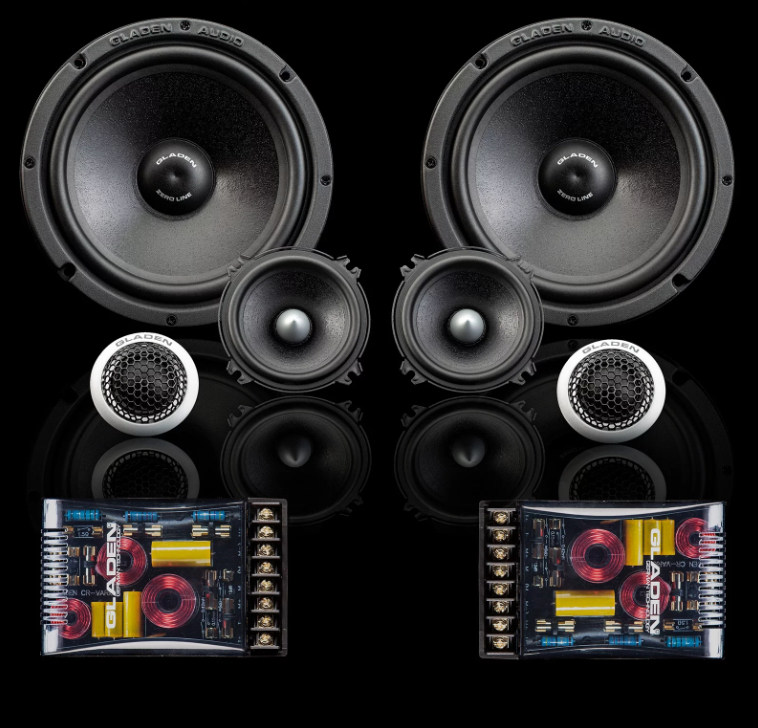

High-end system consisting of a 165 mm bass woofer, an 80mm midrange woofer and a 20 mm dome tweeter (always in pairs).
The 2-way crossovers allow semi-active operation on at least 4 amplifier channels. (Crossover not included for AC version). The complete Zero Pro speaker system is designed and built in Germany.
For better alignment or mounting of the tweeter, the optional Gladen PODs can be used.

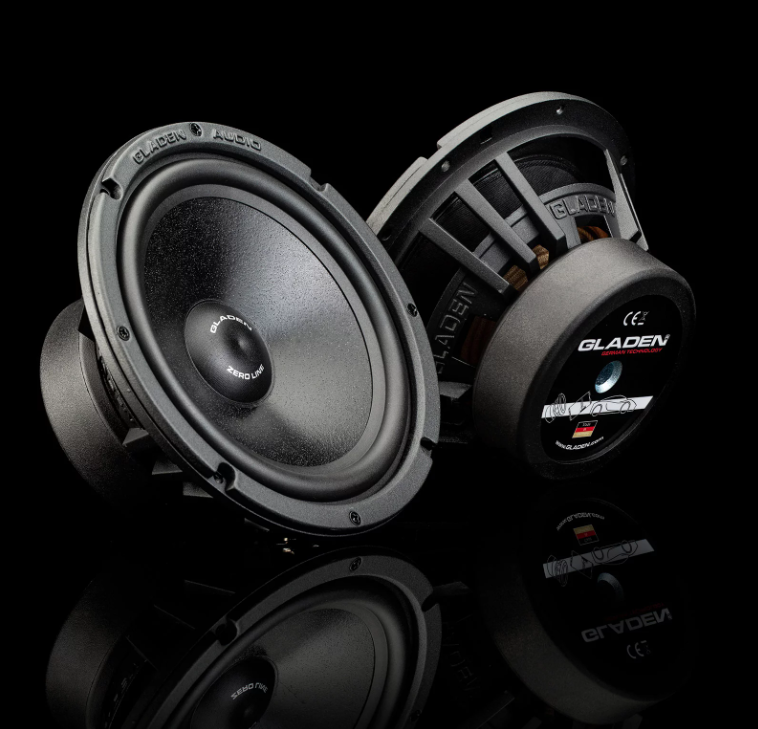

Woofer:
● Size: 165 mm
● Sand-coated paper membrane
● Aluminum basket
● Nomex spider
● 38 mm voice coil
● 3 Ohms impedance

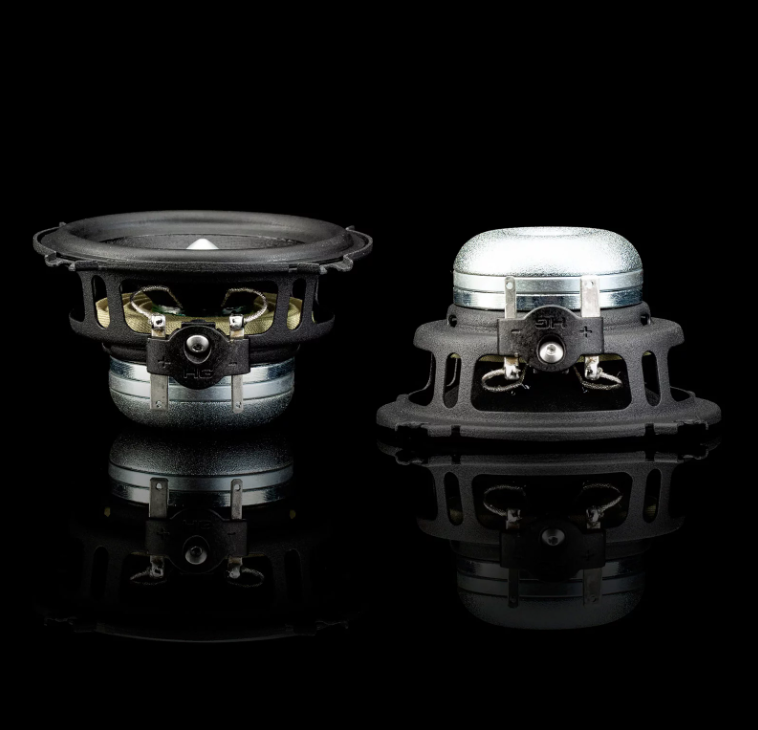

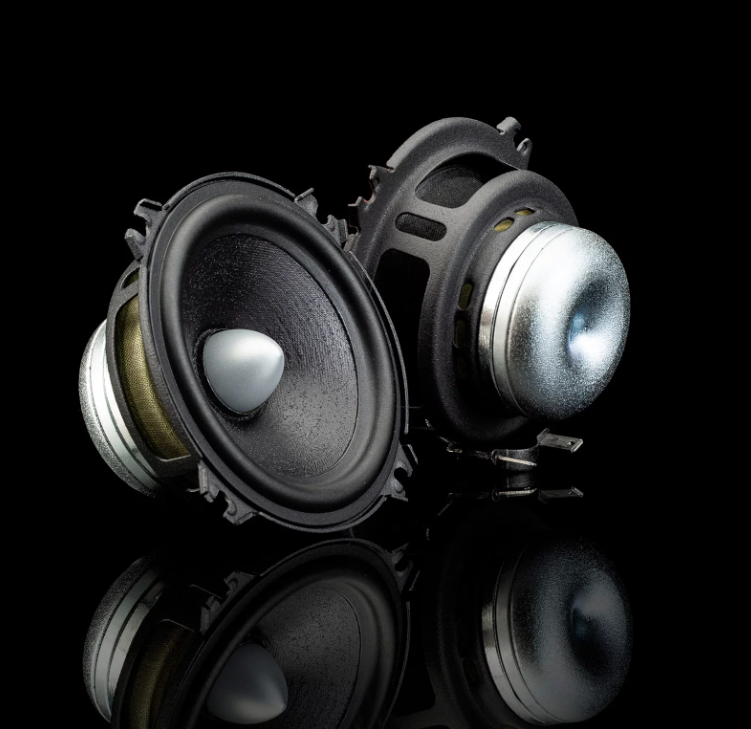

Midrange:
● Size: 80 mm
● Sand-coated paper membrane
● Phase-plug
● Neodymium magnet
● Low-profile design
● 3 Ohms impedance
● Optional accessories: Speaker Rings & Grilles
Tweeter:
● Size: 20 mm (voice coil)
● Silk fabric membrane
● Aluminum housing
● Hexagon-grille
● 4 Ohms impedance
● Optional accessories: Gladen PODs
Crossover, not included for active version (AC):
● 2-way crossover for semi-active operation
● Plexiglas housing
● 504 setting options
● Gold-plated screw terminals
● PTC tweeter protection
TECHNICAL DATA WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Aluminum
Dust Cap:Silk
TECHNICAL DATA MIDRANGE WOOFER
Cone:Paper
Spider:Nomex
Surround:Rubber
Coil former:Aluminum
Basket:Steel
Dust Cap:Silk
TECHNICAL DATA TWEETER
Cone:Silk
Coil Former:Kapton
DOWNLOAD
DATASHETT GLADEN ZERO PRO 165.3 (PDF)
DATASHETT GLADEN ZERO PRO 165.3 ACTIVE (PDF)
