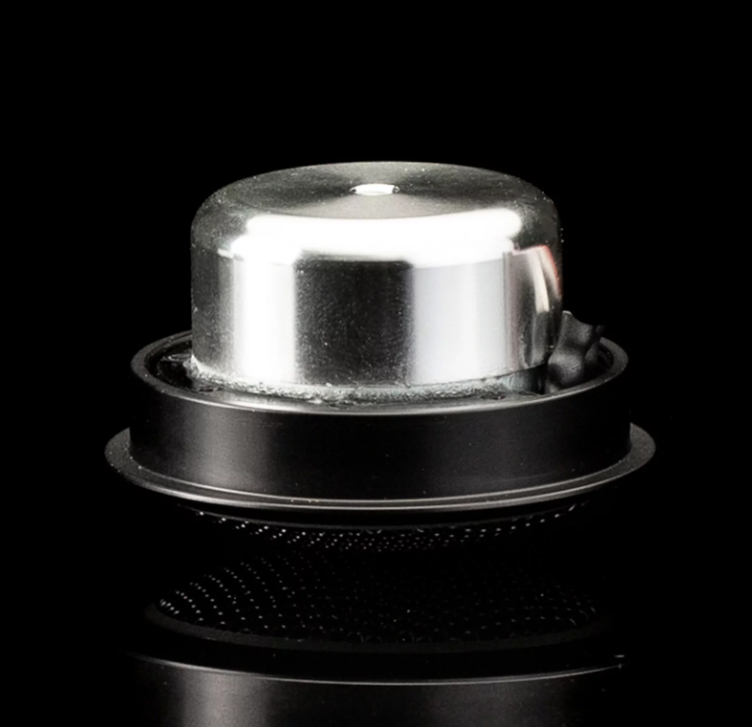

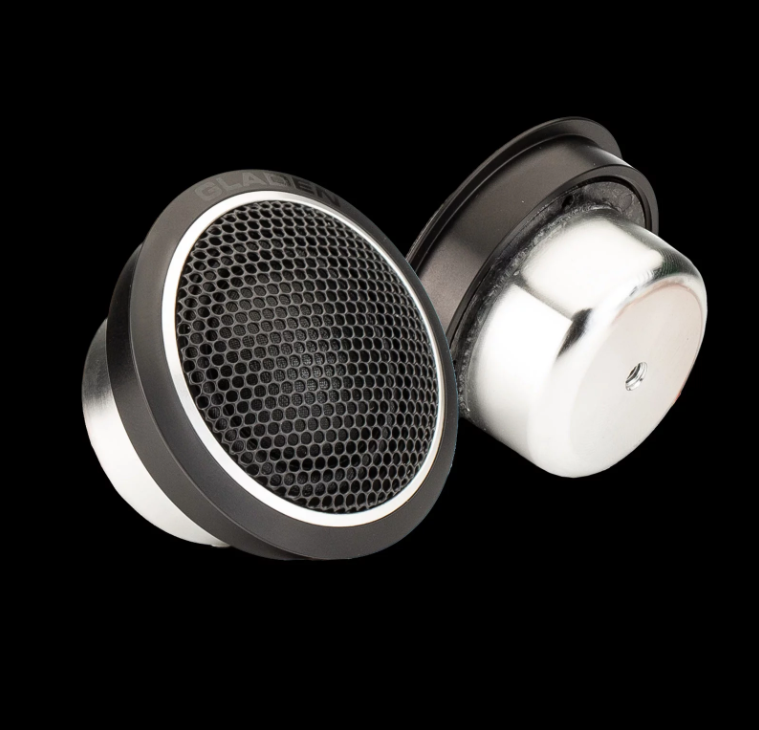

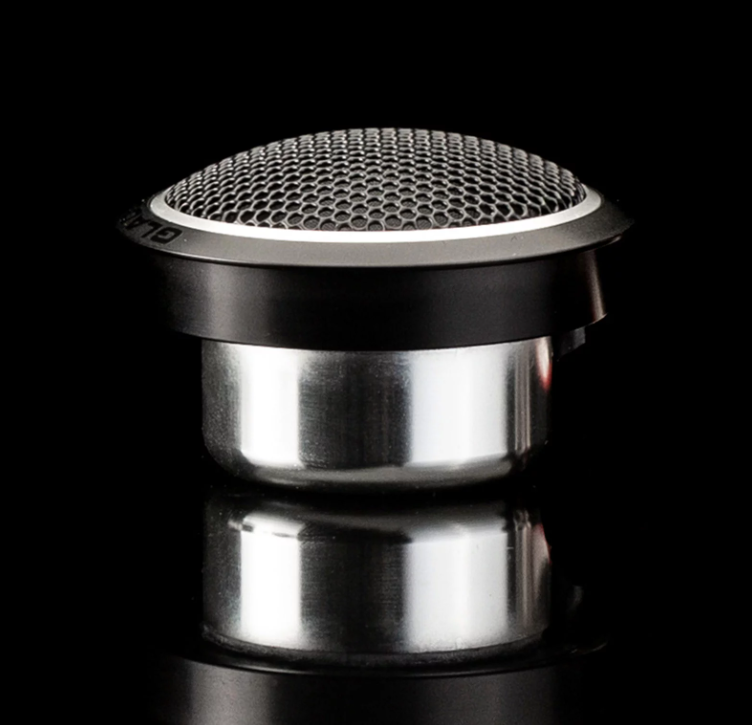

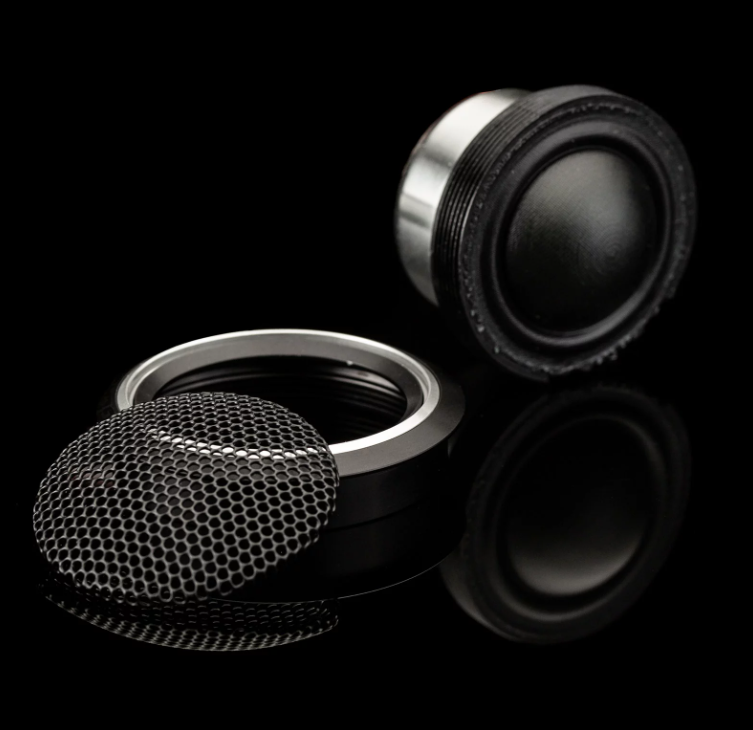

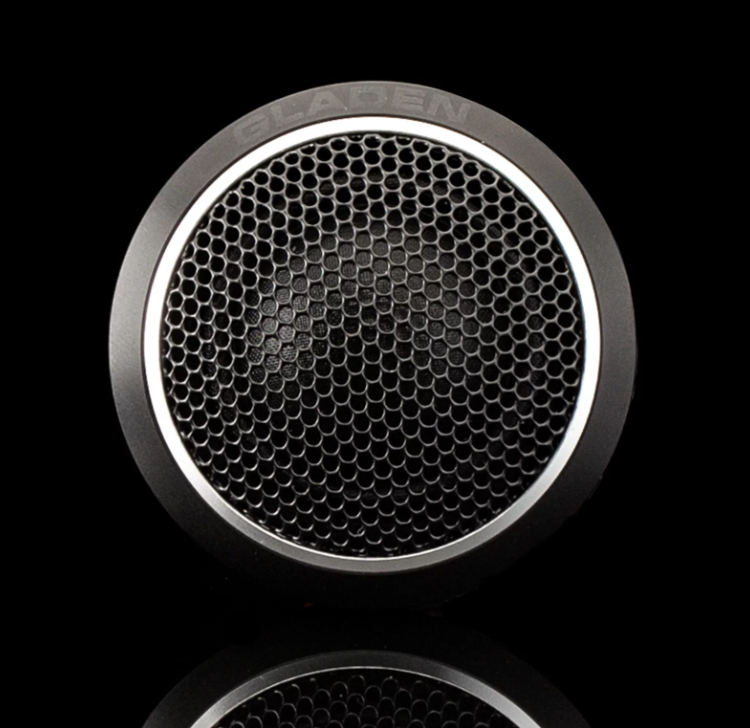

OVERVIEW GLADEN PRO 25
·NEXT LEVEL System
·Tweeter with coupling volume

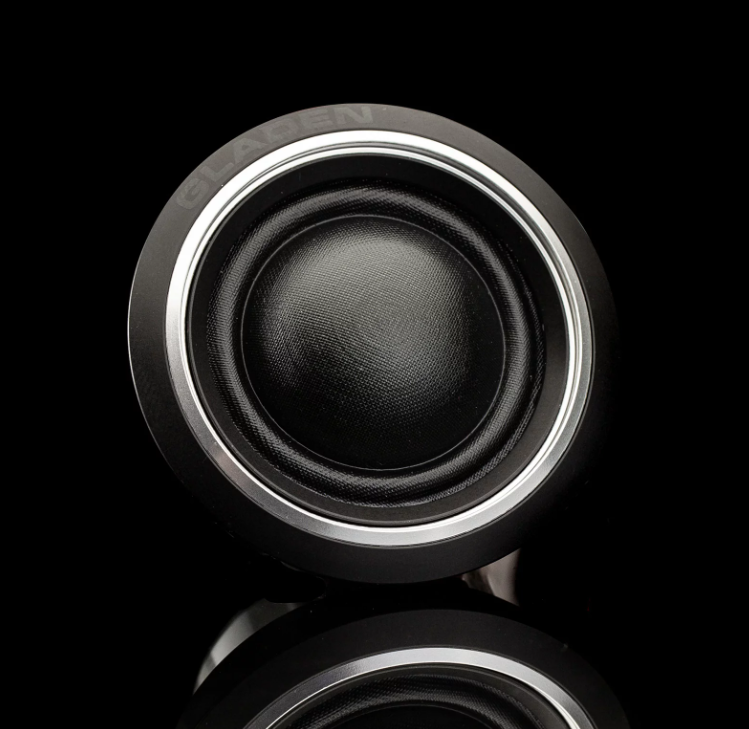

·Hand coated tweeter dome
·Made in Germany
TECHNICAL DATA AEROSPACE PRO 25
SPECIFICATIONS:
DC resistance (Rdc):3,4 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):720 Hz
Voice coil diameter:25 mm
Dome/Kalotte:Fine cloth
Cut-off Frequency / Trennfrequenz>:>3000 Hz 12 dB/Oct
Cut-off Frequency / Trennfrequenz>:>2300 Hz 18 dB/Oct
Cut-off Frequency / Trennfrequenz>:>1600 Hz 24 dB/Oct
DOWNLOAD
